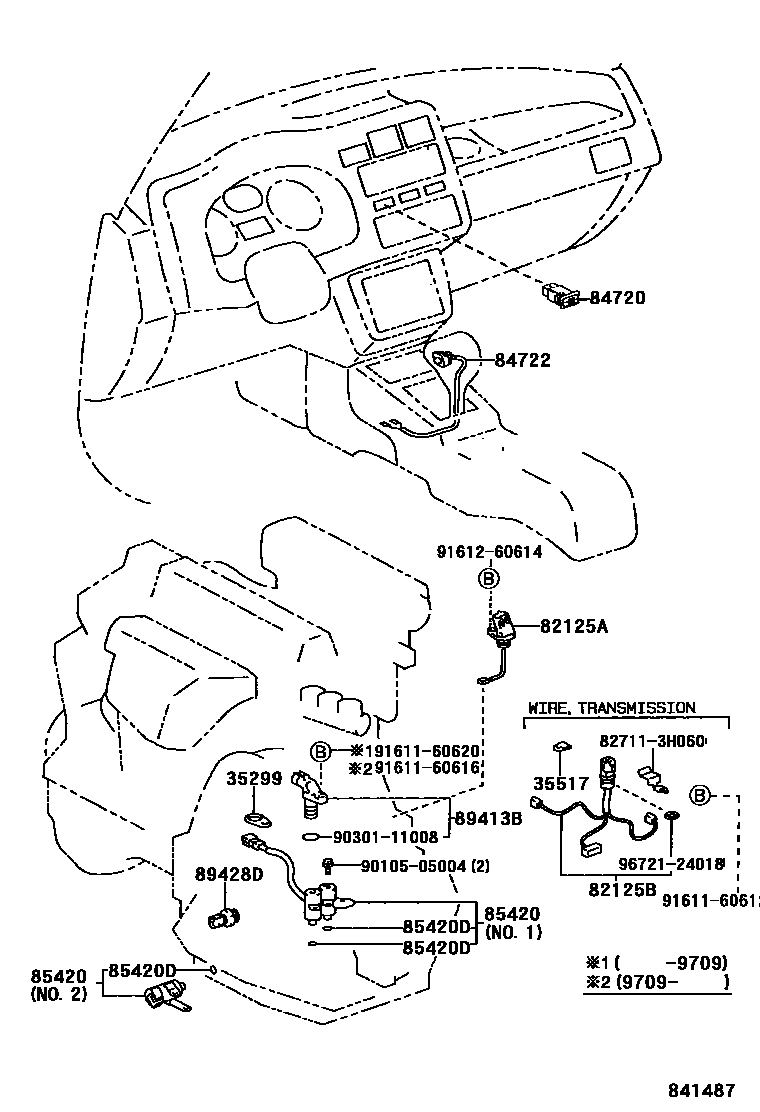

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0003 1

35299SPACER, TRANSMISSION REVOLUTION SENSOR

main35299-32010iSXA10,11..ATM199511

35517PLATE, TRANSMISSION WIRE LOCK

main35517-32010iSXA10,11..ATM199511

82125AWIRE, TRANSMISSION

main82125-20210iSXA10,11..ATM199511

82125BWIRE, TRANSMISSION

main82125-12350iSXA15,16..ATM199709

main82125-20220iSXA15,16..ATM199602-199709

main82125-42010iSXA10,11..ATM199511

84720SWITCH ASSY, PATTERN SELECT

main84720-42020iSXA1#..ATM199511

84722SWITCH, TRANSMISSION CONTROL

main84722-12070-C0iSXA11,15,16..ATM199511-199709

BLACK,TRIM1#

sub84722-12070

sub84722-42020

main84722-42020-C0iSXA1#..ATM199709

BLACK,TRIM1#

85420SOLENOID ASSY, TRANSMISSION

main85420-12100iSXA15,16..ATM199709-199809

NO.1

sub85420-21010

main85420-12120iSXA15,16..ATM199709-199809

NO.2

sub85420-21030

main85420-12140iSXA15,16..ATM199709-199809

NO.3

sub85420-21050

main85420-20140iSXA15,16..ATM199602-199709

NO.3

sub85420-21070

main85420-21010iSXA15,16..ATM199809

NO.1

main85420-21040iSXA15,16..ATM199809

NO.2

main85420-21060iSXA15,16..ATM199809

NO.3

main85420-30200iSXA15,16..ATM199602-199709

NO.1 & NO.2

sub85420-21090

main85420-32102iSXA10,11..ATM199511

NO.1

main85420-32111iSXA10,11..ATM199701

NO.2

main85420-32120iSXA11..ATM199511-199701

NO.2

sub85420-32121

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iSXA1#..ATM199511

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-32010iSXA10,11..ATM199511

sub89413-32011

89428DSWITCH, TEMPERATURE, NO.2

main89428-12140iSXA10,11..ATM199511

827113H060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3H060

9010505004

main90105-05004

9030111008

main90301-11008

9161160612

main91611-60612

9161160616

main91611-60616

9161160620

main91611-60620

9161260614

main91612-60614

9672124018

main96721-24018

18 parts on this diagram · 2 diagrams in section
