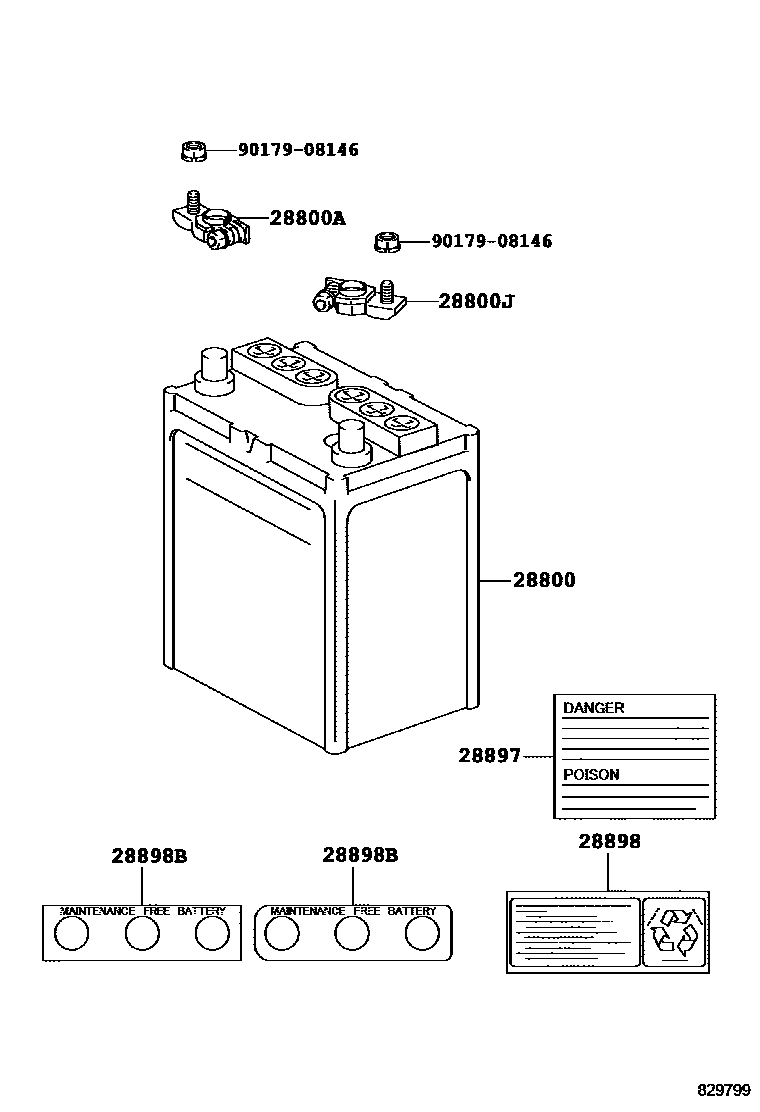

BATTERY & BATTERY CABLE

28800BATTERY

main28800-16141i3SFE..SXA10,16..MTM..HT199611

55D23L,COLD SPEC,YUASA

main28800-16141i3SFE..SXA10,15..SOT199712

55D23L,YUASA

main28800-16141i3SFE..SXA16..ATM;3SFE..SXA11,15..HT199611

55D23L,COLD SPEC OR CANADA SPEC,YUASA

main28800-16150i3SFE..SXA11,15;3SFE..SXA16..ATM199608-199611

55D23L,COLD SPEC OR CANADA SPEC

main28800-16150i3SFE..SXA1#199511-199611

55D23L,COLD SPEC

main28800-16151i3SFE..SXA10,16..MTM..HT199611

55D23L,COLD SPEC,FURUKAWA

sub28800-43262

main28800-16151i3SFE..SXA10,16..MTM..HT199611

55D23L,COLD SPEC OR CANADA SPEC,FURUKAWA

sub28800-43262

main28800-16151i3SFE..SXA10,15..SOT199712

55D23L,FURUKAWA

sub28800-43262

main28800-43261i3SFE..SXA10,16..MTM199608-199611

55D23L,COLD SPEC OR CANADA SPEC

main28800-43261i3SFE..SXA10,16..MTM199511-199611

55D23L,COLD SPEC

main28800-43262i3SFE..SXA10,16..MTM..HT199611

55D23L,COLD SPEC

main28800-43262i3SFE..SXA10,16..MTM..HT199611

55D23L,COLD SPEC OR CANADA SPEC

main28800-43262i3SFE..SXA10,15..SOT199712

55D23L,MATSUSHITA

main28800-74120i3SFE..SXA1#199511

46B24L(S)

28800ATERMINAL, BATTERY POSITIVE

main90982-05037i3SFE..SXA1#199511

28800JTERMINAL, BATTERY NEGATIVE

main90982-06032i3SFE..SXA1#199511

28897PLATE, BATTERY CAUTION

main28897-38010i3SFE..SXA11,15;3SFE..SXA16..ATM199608-199611

main28897-46020i3SFE..SXA11,15;3SFE..SXA16..ATM199611-199709

28898PLATE, BATTERY

main28898-26010i3SFE..SXA1#199511

28898BPLATE, BATTERY

main28898-11020i3SFE..SXA11,15;3SFE..SXA10..SOT;3SFE..SXA16..ATM199608

COLD SPEC OR CANADA SPEC

main28898-11020i3SFE..SXA11,15;3SFE..SXA10..SOT;3SFE..SXA16..ATM199511-199608

COLD SPEC

main28898-74020i3SFE..SXA1#199511

9017908146

main90179-08146

7 parts on this diagram · 1 diagram in section
