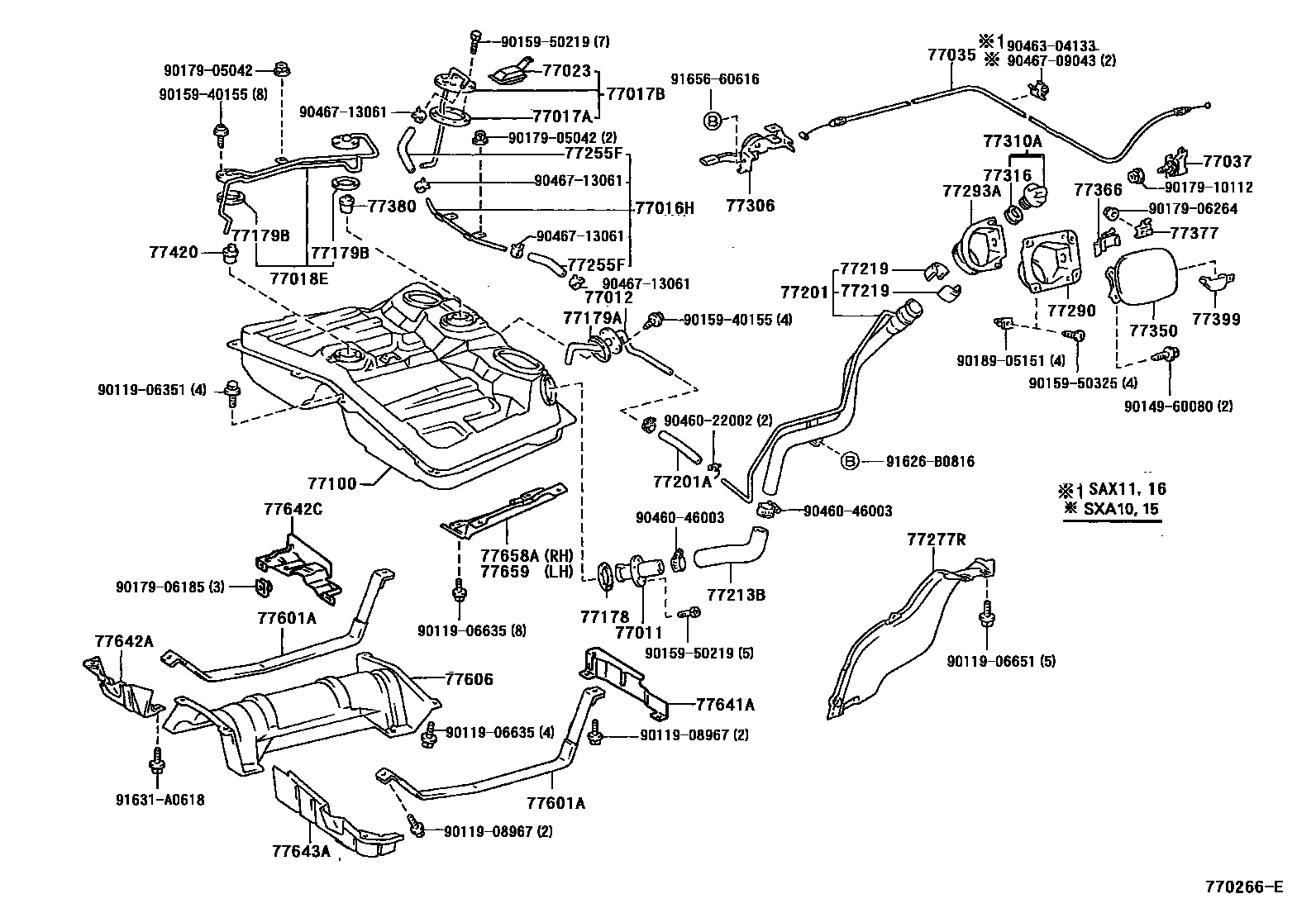

FUEL TANK & TUBE

0001 1 0002 1

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-10060iSXA1#199511

77012TUBE SUB-ASSY, FUEL TANK BREATHER

main77012-42030iSXA1#199511

77016HTUBE SUB-ASSY, FUEL RETURN VENT

main77016-42030iSXA1#199511

77017AGASKET, FUEL TANK VENT

main77169-14010iSXA1#199511

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-42020iSXA1#199511

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-42040iSXA1#199511

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-32030iSXA1#199511

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-42040iSXA10,15199511

main77035-42080iSXA11,16199511

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-14020iSXA1#199511

77100TANK ASSY, FUEL

main77001-42061iSXA1#199709

sub77001-42051

main77001-42903iSXA1#199511-199709

sub77001-42061

sub23091-74261

sub23204-74801

sub90119-06347

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030iSXA1#199511

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-20040iSXA1#199511

77179BGASKET, FUEL TANK EVAPORATION VENT TUBE

main77179-26010iSXA1#199511

sub77179-26011

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-42040iSXA1#199511-199808

sub77201-42081

main77201-42080iSXA1#199808-199902

sub77201-42081

main77201-42081iSXA1#199902

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main95312-13013iSXA1#199511

L=130

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-42020iSXA1#199511-199808

main77213-42040iSXA1#199808

77219COVER, FUEL TANK FILLER PIPE

main77219-32030iSXA1#199511

77255FHOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)

main95333-08020iSXA1#199511

L=200(*H,L=110)

sub95337-08020

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-42011iSXA1#199511

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-42010iSXA1#199511

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-32020iSXA1#199511

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-32020iSXA1#199511

77310ACAP ASSY, FUEL TANK

main77310-35080iSXA1#199511-199803

sub77310-12140

main77310-48020iSXA1#199803

77316GASKET, FUEL TANK CAP

main77316-16010iSXA1#199511

77350LID ASSY, FUEL FILLER OPENING

main77350-42010iSXA10,15199511

main77350-42020iSXA11,16199511

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-22020iSXA1#199511

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20050iSXA1#199511

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iSXA1#199511

77399HANGER, FUEL TANK CAP

main77399-20010iSXA1#199511

77420VALVE ASSY, FUEL CUT OFF, NO.2

main77420-26010iSXA1#199511

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-42030iSXA10,15199511

main77601-42040iSXA11,16199511

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-42010iSXA1#199511

77641APROTECTOR, FUEL TANK, NO.1

main77641-42010iSXA1#199709

77642APROTECTOR, FUEL TANK, NO.2

main77642-42010iSXA1#199511

77642CPROTECTOR, FUEL TANK, NO.2

main77642-42020iSXA1#199709

77643APROTECTOR, FUEL TANK, NO.3

main77643-42010iSXA1#199511

77658APROTECTOR, FUEL TANK EDGE, NO.1

main77658-42010iSXA1#199511

77659PROTECTOR, FUEL TANK EDGE, NO.2

main77659-42010iSXA1#199511

9011906351

main90119-06351

9011906635

main90119-06635

9011906651

main90119-06651

9011908967

main90119-08967

9014960080

main90149-60080

9015940155

main90159-40155

9015950219

main90159-50219

9015950325

main90159-50325

9017905042

main90179-05042

9017906185

main90179-06185

9017906264

main90179-06264

9017910112

main90179-10112

9018905151

main90189-05151

9046022002

main90460-22002

9046046003

main90460-46003

9046304133

main90463-04133

9046709043

main90467-09043

9046713061

main90467-13061

91626B0816

main91626-B0816

91631A0618

main91631-A0618

9165660616

main91656-60616

59 parts on this diagram · 2 diagrams in section
