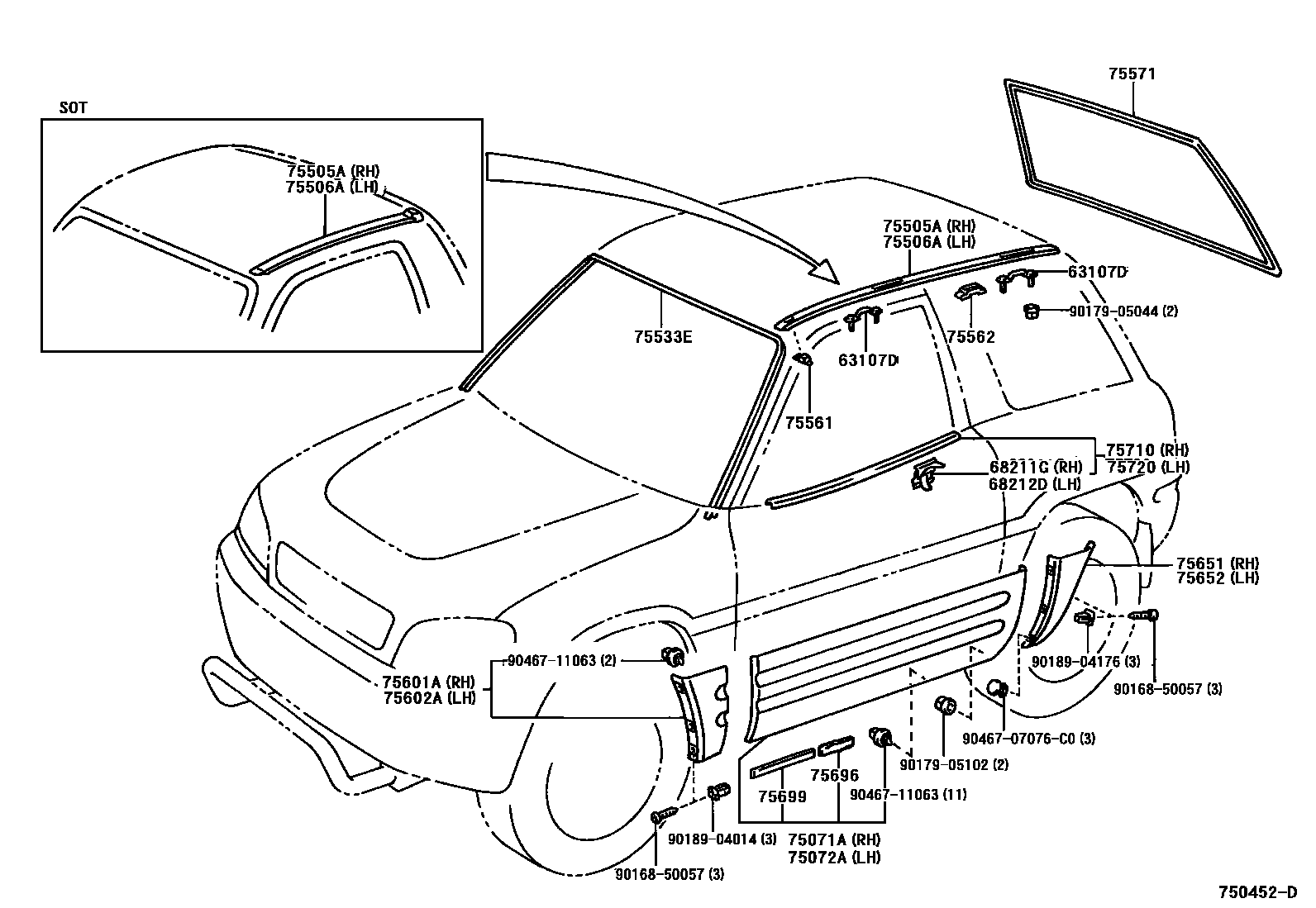

MOULDING

0001 1 0002 1 0003 1W(BUMPER EXTENTION) 0004 1W(BUMPER EXTENTION)

63107DBRACKET SUB-ASSY, ROOF MOULDING

main63107-42010iSXA1#199511-199602

sub63107-42011

main63107-42011iSXA1#..HT199602

68211GCLIP(DOOR BELT MOULDING RH)

main68212-16010iSXA10,15199511

68212DCLIP(DOOR BELT MOULDING LH)

main68212-16010iSXA10,15199511

75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH

main75071-42011iSXA10,15199511-200008

sub75071-42902

main75071-42021iSXA11,16199709-200008

W(235/60R16 TIRE) OR PAINTED

sub75071-42903

main75071-42021iSXA11,16199511-199709

sub75071-42903

75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH

main75072-42011iSXA10,15199511

sub75072-42902

main75072-42021iSXA11,16199511-199709

sub75072-42903

main75072-42021iSXA11,16199709

W(235/60R16 TIRE) OR PAINTED

sub75072-42903

75505AMOULDING SUB-ASSY, ROOF DRIP SIDE FINISH, RH

main75505-42010iSXA10,15..HT199511

main75505-42020iSXA11,16199511

main75505-42030iSXA10,15..SOT199712

75506AMOULDING SUB-ASSY, ROOF DRIP SIDE FINISH, LH

main75506-42010iSXA10,15..HT199511

main75506-42020iSXA11,16199511

main75506-42030iSXA10,15..SOT199712

75533EMOULDING, WINDSHIELD, OUTSIDE

main75533-42020iSXA1#199511-199702

sub75533-42010

main75533-42030iSXA1#199702

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-42020iSXA1#199511

75562CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2

main75562-42020iSXA1#199511

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75573-42010iSXA15;SXA10,11,16..HT199511

75601AMOULDING SUB-ASSY, FRONT FENDER, RH

main75601-42011iSXA1#199511

sub75601-42901

main75601-42900iSXA10,11..HT199608

W(BUMPER EXTENTION)

main75601-42900iSXA10..SOT199712

W(235/60R16 TIRE)

75602AMOULDING SUB-ASSY, FRONT FENDER, LH

main75602-42011iSXA1#199511

sub75602-42901

main75602-42900iSXA10..SOT199712

W(235/60R16 TIRE)

main75602-42900iSXA10,11..HT199608

W(BUMPER EXTENTION)

75651MOULDING, QUARTER, OUTSIDE RH

main75605-42900iSXA10..HT199608

W(BUMPER EXTENTION)

main75605-42900iSXA10..SOT199712

W(235/60R16 TIRE)

main75605-42901iSXA11199608

W(BUMPER EXTENTION)

sub75605-42903

main75651-42011iSXA10,15199511

sub75651-42900

main75651-42020iSXA11,16199511

sub75651-42901

75652MOULDING, QUARTER, OUTSIDE LH

main75606-42900iSXA10..HT199608

W(BUMPER EXTENTION)

sub75606-42902

main75606-42900iSXA10..SOT199712

W(235/60R16 TIRE)

sub75606-42902

main75606-42901iSXA11199608

W(BUMPER EXTENTION)

main75652-42011iSXA10,15199511

sub75652-42900

main75652-42020iSXA11,16199511

sub75652-42901

75696PAD, BODY OUTSIDE MOULDING, NO.1

main75696-42010iSXA10,15199709-199903

T=1.5

main75696-42010iSXA11,16199709-199806

main75696-42030iSXA11,16199709

T=5.0

main75697-42030iSXA10,11199608

W(235/60R16 TIRE)

75699PAD, BODY OUTSIDE MOULDING, NO.4

main75699-42010iSXA10,15199709-199906

T=1.2

main75699-42020iSXA11199709

W(235/60R16 TIRE),T=1.2

sub75691-35010

main75699-42030iSXA10,15199906

sub75897-60010

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-42010iSXA10,15199511

main75710-42020iSXA11,16199511

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-42010iSXA10,15199511

main75720-42020iSXA11,16199511

9016850057

main90168-50057

9017905044

main90179-05044

9017905102

main90179-05102

9018904014

main90189-04014

9018904176

main90189-04176

9046707076C0

main90467-07076C0

9046711063

main90467-11063

26 parts on this diagram · 4 diagrams in section
