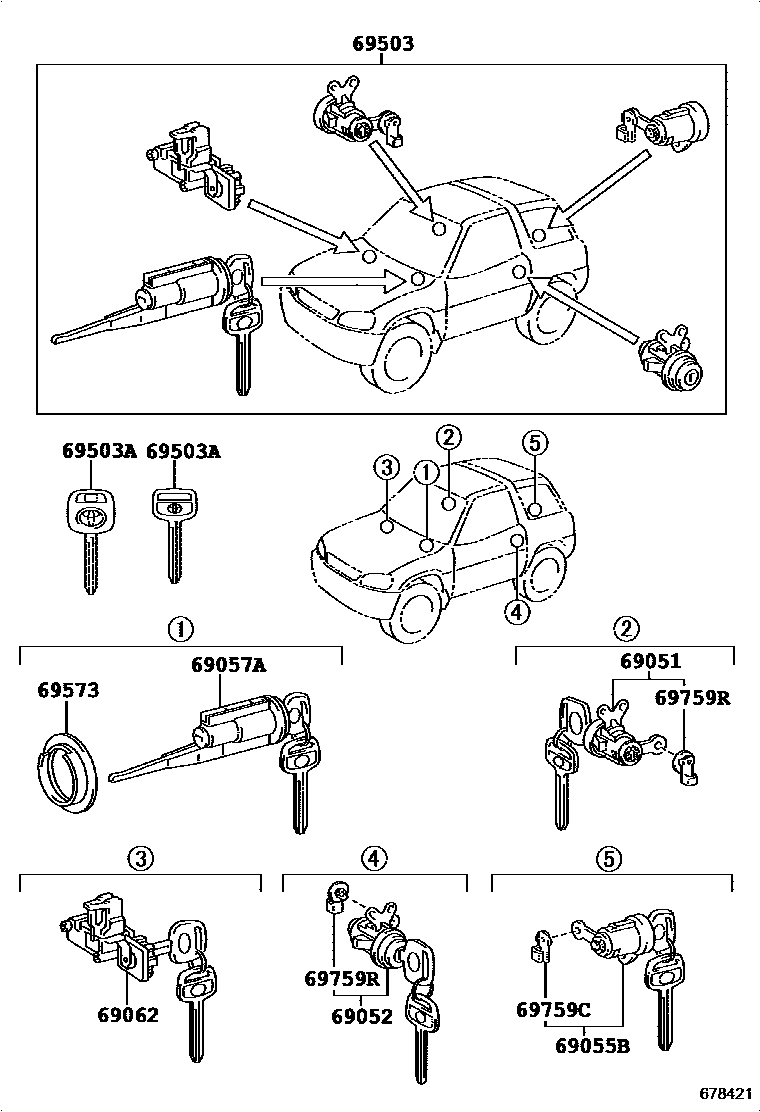

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-42030iSXA10,15199511

sub69051-42020

main69051-42060iSXA11,16199511

sub69051-42050

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-42030iSXA10,15199511

sub69052-42020

main69052-42060iSXA11,16199511

sub69052-42050

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-42030iSXA1#199511

sub69055-42020

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-12400iSXA1#199709

main69057-42040iSXA1#199511-199709

sub69057-42070

main69057-42040iSXA16..ATM;SXA10,11,15199709

CANADA SPEC

sub69057-42070

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-42030iSXA1#199511

sub69056-42020

69503CYLINDER SET, LOCK

main69005-42040iSXA10,15199511

CANADA SPEC

sub69005-42130

main69005-42080iSXA11,16199511-199709

sub69005-42070

main69005-42080iSXA11;SXA16..ATM199709

CANADA SPEC

sub69005-42070

main69005-42150iSXA10,15199709

main69005-42160iSXA11,16199709

69503AKEY, BLANK

main90999-00185iSXA1#199511

MASTER KEY,W(*68)

main90999-00187iSXA1#199511

SUB KEY,W(*68)

sub90999-00200

69573PAD, IGNITION SWITCH LOCK CYLINDER

main69573-42020iSXA1#199511-199709

69759CSNAP, BACK DOOR LOCK CYLINDER

main69759-24080iSXA1#199511

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-22080iSXA1#199511

RH-ORANGE

main69759-22090iSXA1#199511

LH-PINK

10 parts on this diagram · 1 diagram in section
