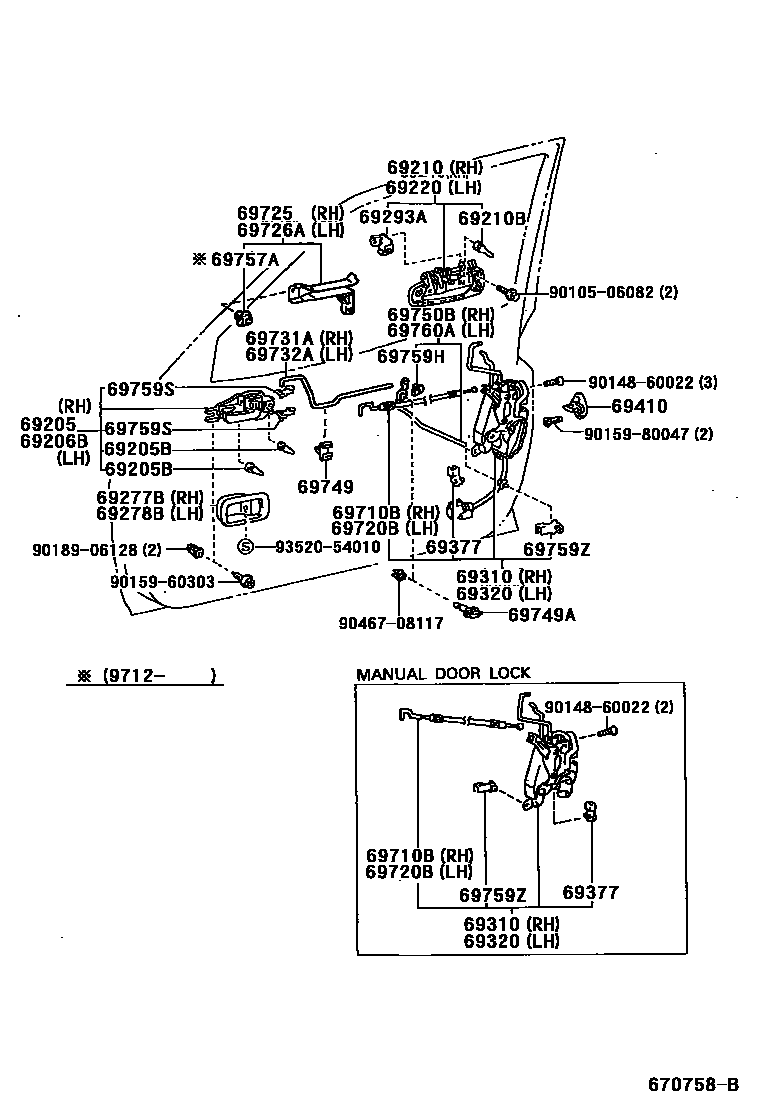

FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
D=8.5
D=12.0
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
sub69210-20310
sub69210-12160
WHITE,K96 ,056
SILVER GR.SF.,K98 ,1B9
BLACK,K62 ,202
RED,K65 ,3L5
LT.BROWN ME,KA1 ,4J6
DK.GREEN M.M.,KA2 ,6P3
DK.TURQUOISE MC.,K95 ,760
BLUE M.M.,K71 ,8L5
WHITE,K96 ,056
L PACKAGE,WHITE PM,K18
SILVER GR.SF.,K98 ,1B9
L PACKAGE,BLACK,KA3
BLACK,K62 ,202
RED MC.,KA0 ,3M8
LT.BROWN ME,KA1 ,4J6
DK.GREEN M.M.,KA2 ,6P3
L PACKAGE,DK.GREEN M.M.,KD4
DK.TURQUOISE MC.,K95 ,760
BLUE M.M.,K71 ,8L5
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
sub69220-20330
sub69220-12160
WHITE,K96 ,056
SILVER GR.SF.,K98 ,1B9
BLACK,K62 ,202
RED,K65 ,3L5
LT.BROWN ME,KA1 ,4J6
DK.GREEN M.M.,KA2 ,6P3
DK.TURQUOISE MC.,K95 ,760
BLUE M.M.,K71 ,8L5
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
LH
RH
LH
69377SNAP, FRONT DOOR LOCK CONTROL ROD
RH-WHITE
LH-BLUE
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69731ALINK, FRONT DOOR INSIDE LOCKING, NO.1 RH
69732ALINK, FRONT DOOR INSIDE LOCKING, NO.1 LH
69749CLAMP, FRONT DOOR LOCK LINK
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH
69757ACLAMP, DOOR LOCK CONTROL BELLCRANK
69759HSNAP, DOOR LOCK CONTROL LINK, NO.2
69759SSNAP, FRONT DOOR INSIDE HANDLE
LH-PINK
RH-YELLOW
69759ZSNAP, DOOR LOCK CONTROL LINK
LH-GREEN
RH-GRAY
69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH
9010506082
main90105-06082
9014860022
main90148-60022
9015960303
main90159-60303
9015980047
main90159-80047
9018906128
main90189-06128
9046708117
main90467-08117
9352054010
main93520-54010
34 parts on this diagram · 1 diagram in section
