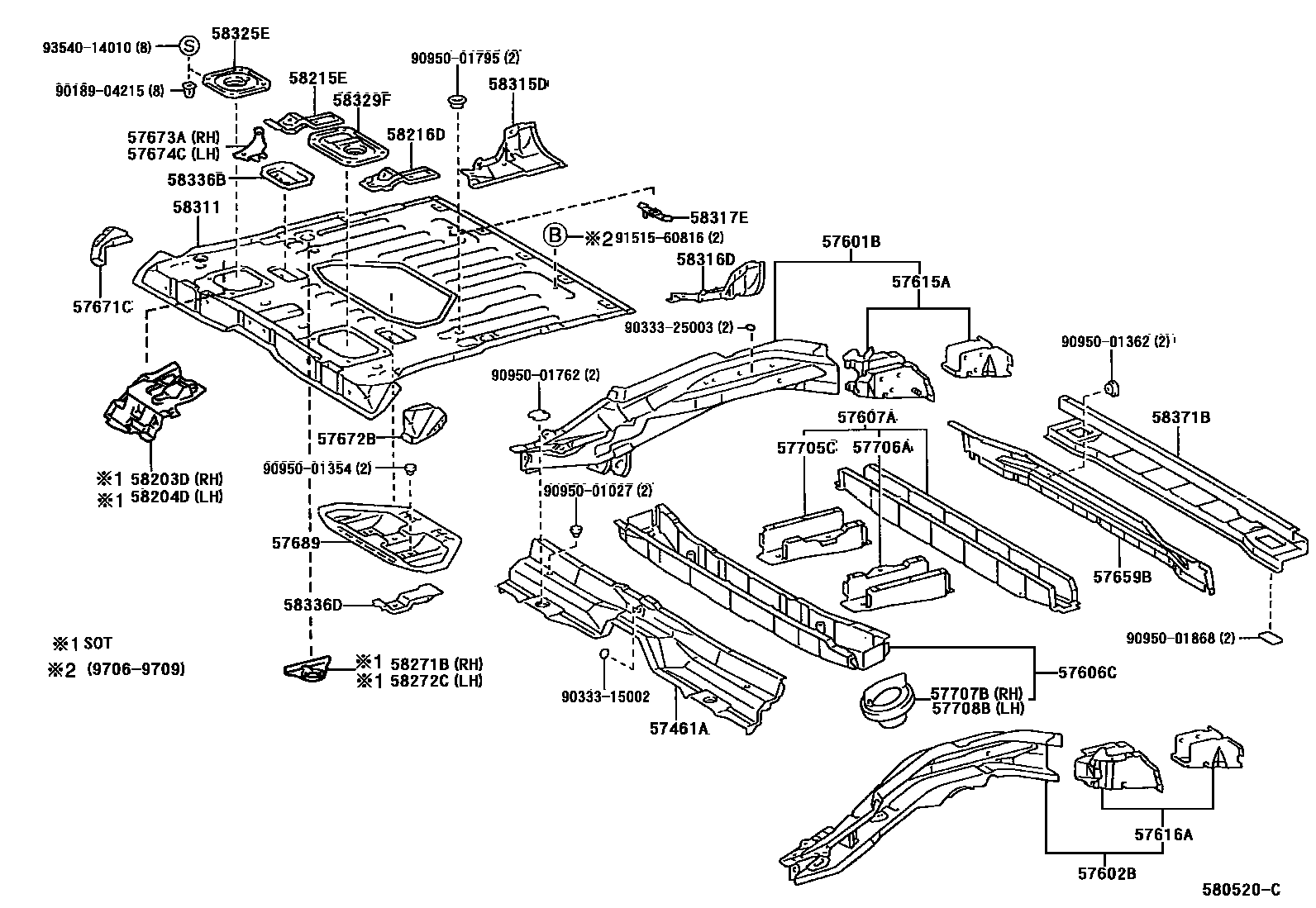

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

57461AMEMBER, CENTER FLOOR CROSS

main57461-42010iSXA10,15199511

main57461-42020iSXA11,16199511

57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57601-42030iSXA10,15199511-199709

sub57601-42060

main57601-42040iSXA11,16199511-199709

sub57601-42070

main57601-42060iSXA10,15199709

main57601-42070iSXA11,16199709

57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57602-42030iSXA10,15199511-199709

sub57602-42060

main57602-42040iSXA11,16199511-199709

sub57602-42070

main57602-42060iSXA10,15199709

main57602-42070iSXA11,16199709

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-42011iSXA10,15199511-199709

sub57606-42040

main57606-42020iSXA11,16199511-199709

sub57606-42050

main57606-42040iSXA10,15199709

main57606-42050iSXA11,16199709

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-42010iSXA10,15199511

main57607-42020iSXA11,16199511

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-42900iSXA10,15199511

main57615-42901iSXA11,16199511-199709

sub57615-42902

main57615-42902iSXA11,16199709

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-42900iSXA10,15199511

main57616-42901iSXA11,16199511-199709

sub57616-42902

main57616-42902iSXA11,16199709

57659BMEMBER, REAR FLOOR CROSS, REAR INNER

main57659-42010iSXA1#199511

57671CBRACE, REAR FLOOR NO.1 CROSSMEMBER, RH

main57671-42010iSXA10,15199511-199604

sub57671-42011

main57671-42011iSXA10,15..HT199604

main57671-42020iSXA11,16199511-199604

sub57671-42021

main57671-42021iSXA11,16199604

57672BBRACE, REAR FLOOR NO.1 CROSSMEMBER, LH

main57672-42010iSXA10,15199511-199604

sub57672-42011

main57672-42011iSXA10,15..HT199604

main57672-42020iSXA11,16199511-199604

sub57672-42021

main57672-42021iSXA11,16199604

57673ABRACE, REAR FLOOR NO.2 CROSSMEMBER, RH

main57673-42010iSXA1#199605-199709

main57673-42020iSXA11,16199605-199709

57674CBRACE, REAR FLOOR NO.2 CROSSMEMBER, LH

main57674-42010iSXA1#199605-199709

main57674-42020iSXA11,16199605-199709

57689REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2

main57689-42010iSXA10,15199511

57705CBRACKET, REAR SUSPENSION MEMBER MOUNTING, REAR RH

main57705-42010iSXA10,15199511

main57705-42020iSXA11,16199511

57706ABRACKET, REAR SUSPENSION MEMBER MOUNTING, REAR LH

main57706-42010iSXA10,15199511

main57706-42020iSXA11,16199511

57707BBRACKET, SUB-ASSY, REAR SPRING, FRONT RH

main57707-42010iSXA1#199511

57708BBRACKET, SUB-ASSY, REAR SPRING, FRONT LH

main57708-42010iSXA1#199511

58203DBRACKET SUB-ASSY, REAR SEAT HINGE, OUTER RH

main58203-42010iSXA10,15..SOT199712

58204DBRACKET SUB-ASSY, REAR SEAT HINGE, OUTER LH

main58204-42010iSXA10,15..SOT199712

58215EBRACKET, REAR SEAT MOUNTING, RH

main58215-42010iSXA10,15199511

main58215-42020iSXA11,16199511-199604

sub58215-42021

main58215-42021iSXA11,16199604-199709

58216DBRACKET, REAR SEAT MOUNTING, LH

main58215-42020iSXA11,16199511-199604

sub58215-42021

main58215-42021iSXA11,16199604-199709

main58216-42010iSXA10,15199511-199709

main58216-42020iSXA10,15..HT199709

58271BPLATE, FLOOR SIDE, REAR, RH

main58271-42010iSXA10,15..SOT199712

58272CPLATE, FLOOR SIDE, REAR, LH

main58272-42010iSXA10,15..SOT199712

58311PAN, REAR FLOOR

main58311-42010iSXA10,15199511

main58311-42020iSXA10,15199706-199709

CANADA SPEC

sub58311-42010

main58311-42030iSXA11,16199511

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-42010iSXA10,15199511

main58315-42020iSXA11,16199511

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-42010iSXA10,15199511

main58316-42020iSXA11,16199511

58317ERETAINER, REAR SEAT, NO.2

main58317-42020iSXA16..ATM;SXA10,11,15199706-199709

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-42010iSXA1#199511

58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2

main58329-42010iSXA1#199511

58336BREINFORCEMENT, REAR FLOOR PAN

main58336-42010iSXA10,15199511-199709

main58336-42020iSXA11,16199511-199605

58336DREINFORCEMENT, REAR FLOOR PAN, NO.1

main58364-42010iSXA10,15199511

58371BPANEL, BODY LOWER BACK, OUTER

main58371-42011iSXA1#199511

9018904215

main90189-04215

9033315002

main90333-15002

9033325003

main90333-25003

9095001027

main90950-01027

9095001354

main90950-01354

9095001362

main90950-01362

9095001762

main90950-01762

9095001795

main90950-01795

9095001868

main90950-01868

9151560816

main91515-60816

9354014010

main93540-14010

43 parts on this diagram · 2 diagrams in section
