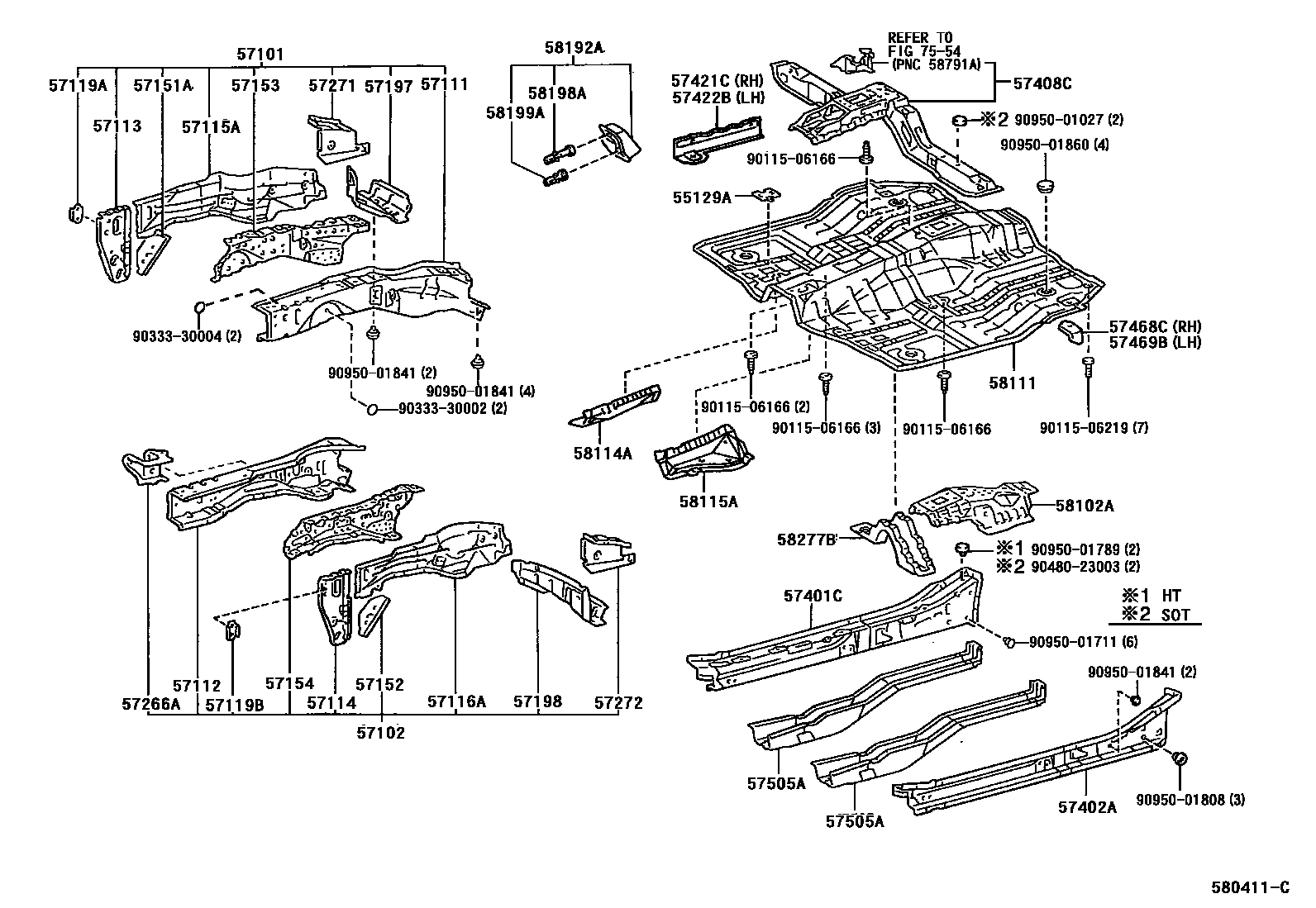

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

55129ACOVER, FRONT FLOOR HOLE

main55129-12030iSXA1#199511

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-42020iSXA10,11199511-199709

main57101-42030iSXA15,16199602-199709

main57101-42040iSXA1#199709

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-42020iSXA10,11199511-199709

main57102-42030iSXA15,16199602-199709

main57102-42040iSXA1#199709

57111MEMBER, FRONT SIDE, RH

main57111-42010iSXA1#199511-199709

main57111-42030iSXA1#199709

57112MEMBER, FRONT SIDE, LH

main57112-42011iSXA1#199511-199709

main57112-42030iSXA1#199709

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-42010iSXA1#199511-199709

main57113-42020iSXA1#199709

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-42010iSXA1#199511-199709

main57114-42020iSXA1#199709

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-42011iSXA1#199511-199709

main57115-42020iSXA1#199709

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-42011iSXA1#199511-199709

main57116-42020iSXA1#199709

57119APLATE, FRONT SIDE MEMBER, FRONT RH

main57119-42010iSXA1#199511

57119BPLATE, FRONT SIDE MEMBER, FRONT LH

main57119-42010iSXA1#199511

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-42010iSXA1#199511-199709

main57151-42020iSXA1#199709

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-42010iSXA1#199511-199709

main57152-42020iSXA1#199709

57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH

main57016-42010iSXA1#199511-199706

main57016-42011iSXA1#199706-199709

main57016-42030iSXA1#199709

57154REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH

main57017-42010iSXA1#199709

main57154-42010iSXA1#199511-199709

57197BOX, TORQUE, FRONT RH

main57197-42010iSXA1#199511-199709

sub57197-42030

sub90333-25001

main57197-42030iSXA1#199709

57198BOX, TORQUE, FRONT LH

main57198-42010iSXA1#199511-199709

sub57198-42030

sub90333-25001

main57198-42030iSXA1#199709

57266ABRACKET, ENGINE MOUNTING, LH

main57266-42011iSXA1#199511-199709

57271EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH

main57271-42010iSXA1#199511-199709

main57271-42030iSXA1#199709

57272EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH

main57272-42010iSXA1#199511-199709

main57272-42030iSXA1#199709

57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-42030iSXA10,15199511-199709

main57401-42040iSXA11,16199511-199709

main57401-42060iSXA10,15199709

main57401-42070iSXA11,16199709

57402AMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-42030iSXA10,15199511-199709

main57402-42040iSXA11,16199511-199709

main57402-42060iSXA10,15199709

main57402-42070iSXA11,16199709

57408CMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-42020iSXA1#199511-199709

main57408-42040iSXA1#199709

57421CPLATE, FLOOR SIDE RAIL, RH

main57421-42010iSXA1#199709

57422BPLATE, FLOOR SIDE RAIL, LH

main57422-42010iSXA1#199709

57468CBRACKET, FRONT SEAT, OUTSIDE, RH

main57468-42010iSXA1#199511-199709

main57468-42030iSXA1#199709

57469BBRACKET, FRONT SEAT, OUTSIDE LH

main57469-42010iSXA1#199511-199709

main57469-42030iSXA1#199709

57505AREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER

main57505-42013iSXA10199511-199608

sub57505-42014

main57505-42014iSXA10199608-199709

main57505-42022iSXA11199511-199608

sub57505-42023

main57505-42023iSXA11199608-199709

main57505-42031iSXA15199602-199608

sub57505-42032

main57505-42032iSXA15199608-199709

sub57505-42050

main57505-42041iSXA16199602-199608

sub57505-42042

main57505-42042iSXA16199608-199709

sub57505-42060

main57505-42050iSXA10,15..HT199709

main57505-42060iSXA11,16199709

main57505-42070iSXA10,15..SOT199712

RH

main57506-42010iSXA10,15..SOT199712

LH

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-42011iSXA10,15199511

main58102-42020iSXA11,16199511

58111PAN, FRONT FLOOR

main58111-42903iSXA1#199511-199608

sub58111-42904

sub90950-01377

main58111-42905iSXA1#199608-199709

sub58111-42906

sub58111-42907

main58111-42907iSXA1#199709

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-42010iSXA15,16199602

58115AREINFORCEMENT, FRONT FLOOR PANEL

main58115-42010iSXA15,16199602

58192AFOOTREST, FRONT FLOOR, LH

main58192-42010iSXA1#199511

58198ACLIP, FOOTREST, NO.1

main58198-42020iSXA1#199511

58199ACLIP, FOOTREST, NO.2

main58199-42020iSXA1#199511

58277BREINFORCEMENT, DRIVE SHAFT CENTER SUPPORT

main58209-42010iSXA1#199511

7554

9011506166

main90115-06166

9011506219

main90115-06219

9033330002

main90333-30002

9033330004

main90333-30004

9048023003

main90480-23003

9095001027

main90950-01027

9095001711

main90950-01711

9095001789

main90950-01789

9095001808

main90950-01808

9095001841

main90950-01841

9095001860

main90950-01860

48 parts on this diagram · 1 diagram in section
