REAR SPRING & SHOCK ABSORBER

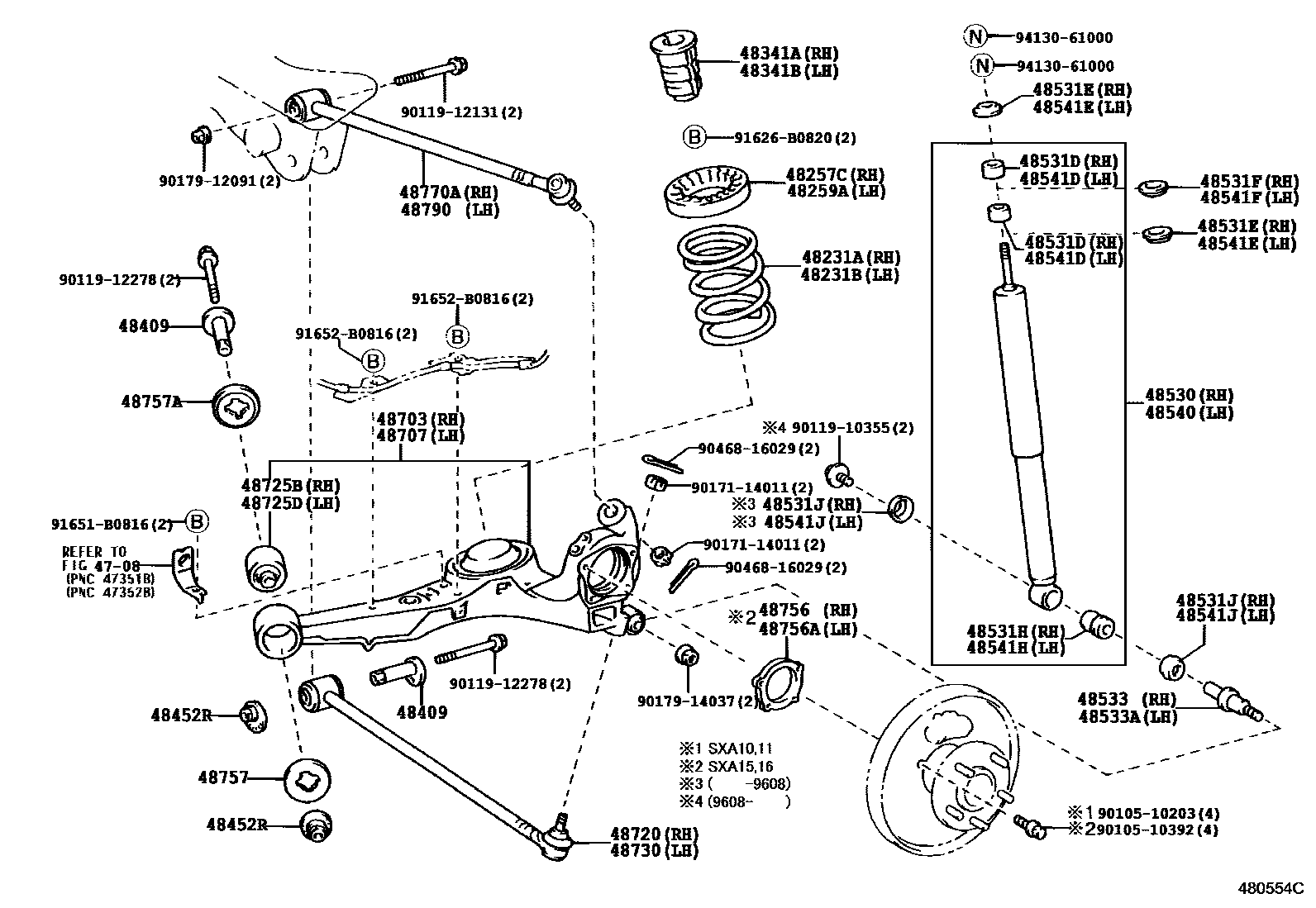

Parts diagram
4708
48231ASPRING, COIL, REAR RH
main48231-42010i199602-199709
sub48231-42011
main48231-42011i199709
main48231-42020i199511-199709
sub48231-42021
main48231-42021i199709
main48231-42030i199511-199608
main48231-42031i199608-199709
sub48231-42032
main48231-42032i199709
main48231-42040i199602
main48231-42050i199608-199709
W(235/60R16 TIRE)
sub48231-42051
main48231-42051i199709
W(235/60R16 TIRE)
main48231-42060i199608-199801
W(235/60R16 TIRE)
main48231-42061i199801-199803
W(235/60R16 TIRE)
sub48231-42060
48231BSPRING, COIL, REAR LH
main48231-42010i199602-199709
sub48231-42011
main48231-42011i199709
main48231-42020i199511-199709
sub48231-42021
main48231-42021i199709
main48231-42030i199511-199608
main48231-42031i199608-199709
sub48231-42032
main48231-42032i199709
main48231-42040i199602
main48231-42050i199608-199709
W(235/60R16 TIRE)
sub48231-42051
main48231-42051i199709
W(235/60R16 TIRE)
main48231-42060i199608-199801
W(235/60R16 TIRE)
main48231-42061i199801-199803
W(235/60R16 TIRE)
sub48231-42060
48257CINSULATOR, REAR COIL SPRING, UPPER RH
main48257-42010i199511
48259AINSULATOR, REAR COIL SPRING, UPPER LH
main48257-42010i199511
48341ABUMPER, REAR SPRING, NO.1 RH
main48306-42010i199511-199709
sub48306-42040
main48306-42010i199608-199709
W(235/60R16 TIRE)
sub48306-42040
main48306-42020i199511-199709
sub48306-42040
main48306-42040i199709
48341BBUMPER, REAR SPRING, NO.1 LH
main48306-42010i199608-199709
W(235/60R16 TIRE)
sub48306-42040
main48306-42010i199511-199709
sub48306-42040
main48306-42020i199511-199709
sub48306-42040
main48306-42040i199709
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
main48409-42011i199511
48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2
main48452-42011i199511
48530ABSORBER ASSY, SHOCK, REAR RH
main48531-49065i199602-199703
sub48531-49066
main48531-49066i199703-199908
sub48531-49067
main48531-49067i199908
sub48531-49098
main48531-49075i199511-199703
sub48531-49076
main48531-49076i199703-199908
sub48531-49077
main48531-49077i199908
sub48531-49275
main48531-49085i199511-199703
sub48531-49086
main48531-49086i199703-199709
sub48531-49087
main48531-49087i199709-199908
sub48531-49088
main48531-49088i199908
sub48531-49275
main48531-49095i199602-199703
sub48531-49096
main48531-49096i199703-199709
sub48531-49097
main48531-49097i199709-199908
sub48531-49098
main48531-49098i199908
main48531-49125i199608-199703
W(235/60R16 TIRE)
sub48531-49126
main48531-49126i199703-199709
W(235/60R16 TIRE)
sub48531-49127
main48531-49127i199709-199908
W(235/60R16 TIRE)
sub48531-49128
main48531-49128i199908
W(235/60R16 TIRE)
main48531-49135i199608-199703
W(235/60R16 TIRE)
sub48531-49136
main48531-49136i199703-199908
W(235/60R16 TIRE)
sub48531-49137
main48531-49137i199908
W(235/60R16 TIRE)
main48531-49145i199608-199703
W(ELECTRIC MOON ROOF)
sub48531-49146
main48531-49146i199703-199709
W(ELECTRIC MOON ROOF)
sub48531-49147
main48531-49147i199709-199908
W(ELECTRIC MOON ROOF)
sub48531-49148
main48531-49148i199908
W(ELECTRIC MOON ROOF)
48531DCUSHION, REAR SHOCK ABSORBER, NO.2 RH
main90948-01018i199511
LOWER
main90948-01031i199511
UPPER
main90948-01031i199703-199709
48531ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH)
main90948-02002i199511
main90948-02002i199709
W(235/60R16 TIRE)
48531FRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER RH)
main90948-02007i199511
48531HBUSH(FOR REAR SHOCK ABSORBER RH)
main90385-16001i199709
main90385-16004i199511-199709
48531JWASHER, REAR SHOCK ABSORBER CUSHION, NO.1 RH
main90948-03004i199511-199608
OUTER
main90948-03004i199608
main90948-03012i199511-199608
INNER
48533PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH
main48533-42010i199511
48533APIN, REAR SHOCK ABSORBER LOWER PIVOT, LH
main48533-42010i199511
48540ABSORBER ASSY, SHOCK, REAR LH
main48531-49065i199602-199703
sub48531-49066
main48531-49066i199703-199908
sub48531-49067
main48531-49067i199908
sub48531-49098
main48531-49075i199511-199703
sub48531-49076
main48531-49076i199703-199908
sub48531-49077
main48531-49077i199908
sub48531-49275
main48531-49085i199511-199703
sub48531-49086
main48531-49086i199703-199709
sub48531-49087
main48531-49087i199709-199908
sub48531-49088
main48531-49088i199908
sub48531-49275
main48531-49095i199602-199703
sub48531-49096
main48531-49096i199703-199709
sub48531-49097
main48531-49097i199709-199908
sub48531-49098
main48531-49098i199908
main48531-49125i199608-199703
W(235/60R16 TIRE)
sub48531-49126
main48531-49126i199703-199709
W(235/60R16 TIRE)
sub48531-49127
main48531-49127i199709-199908
W(235/60R16 TIRE)
sub48531-49128
main48531-49128i199908
W(235/60R16 TIRE)
main48531-49135i199608-199703
W(235/60R16 TIRE)
sub48531-49136
main48531-49136i199703-199908
W(235/60R16 TIRE)
sub48531-49137
main48531-49137i199908
W(235/60R16 TIRE)
main48531-49145i199608-199703
W(ELECTRIC MOON ROOF)
sub48531-49146
main48531-49146i199703-199709
W(ELECTRIC MOON ROOF)
sub48531-49147
main48531-49147i199709-199908
W(ELECTRIC MOON ROOF)
sub48531-49148
main48531-49148i199908
W(ELECTRIC MOON ROOF)
48541DCUSHION, REAR SHOCK ABSORBER, NO.2 LH
main90948-01018i199511
LOWER
main90948-01031i199703-199709
main90948-01031i199511
UPPER
48541ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH)
main90948-02002i199709
W(235/60R16 TIRE)
main90948-02002i199511
48541FRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER LH)
main90948-02007i199511
48541HBUSH(FOR REAR SHOCK ABSORBER LH)
main90385-16001i199709
main90385-16004i199511-199709
48541JWASHER, REAR SHOCK ABSORBER CUSHION, NO.1 LH
main90948-03004i199608
main90948-03004i199511-199608
OUTER
main90948-03012i199511-199608
INNER
48703ARM SUB-ASSY, REAR SUSPENSION, RH
main48711-42900i199511-199709
sub48711-42905
main48711-42901i199511-199709
W(ABS)
sub48711-42904
main48711-42904i199709
W(ABS)
main48711-42905i199709
48707ARM SUB-ASSY, REAR SUSPENSION, LH
main48712-42900i199511-199709
sub48712-42905
main48712-42901i199511-199709
W(ABS)
sub48712-42904
main48712-42904i199709
W(ABS)
main48712-42905i199709
48720ARM ASSY, LOWER CONTROL, RH
main48720-42010i199511
48725BBUSH, REAR SUSPENSION ARM, NO.1
main48725-42011i199511
48725DBUSH, REAR SUSPENSION ARM, NO.3
main48725-42011i199511
48730ARM ASSY, LOWER CONTROL, LH
main48730-42010i199511
48756PIECE, REAR SUSPENSION ARM, RH
main48756-42010i199608
48756APIECE, REAR SUSPENSION ARM, LH
main48756-42010i199608
48757ATTACHMENT, REAR SUSPENSION ARM
main48757-42010i199511-199709
main48757-42011i199709
48757AATTACHMENT, REAR SUSPENSION ARM, NO.2
main48757-42021i199511
48770AARM ASSY, UPPER CONTROL, REAR RH
main48770-42010i199511
48790ARM ASSY, UPPER CONTROL, REAR LH
main48790-42010i199511
9010510203
main90105-10203
9010510392
main90105-10392
9011910355
main90119-10355
9011912131
main90119-12131
9011912278
main90119-12278
9017114011
main90171-14011
9017912091
main90179-12091
9017914037
main90179-14037
9046816029
main90468-16029
91626B0820
main91626-B0820
91651B0816
main91651-B0816
91652B0816
main91652-B0816
9413061000
main94130-61000

48 parts on this diagram · 1 diagram in section
