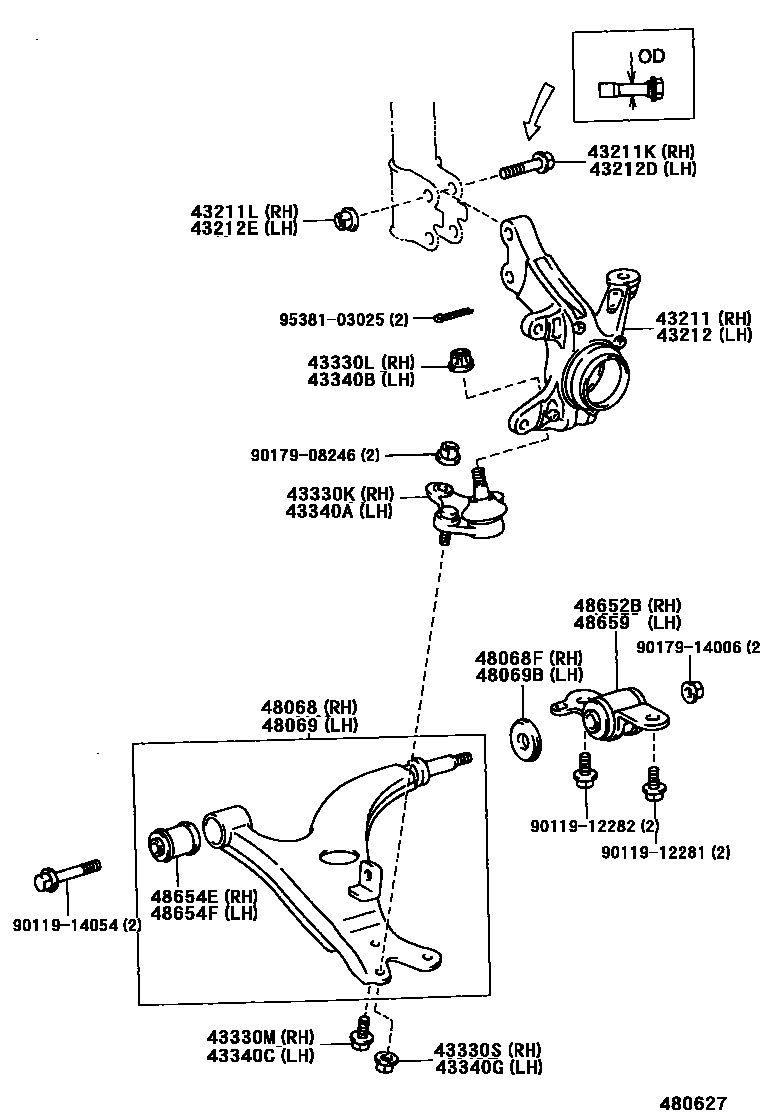

FRONT AXLE ARM & STEERING KNUCKLE
43211KBOLT (FOR STEERING KNUCKLE RH)
OD=15.0
OD=13.9
OD=13.3
OD=12.4
43211LNUT (FOR STEERING KNUCKLE RH)
43212DBOLT (FOR STEERING KNUCKLE LH)
OD=15.0
OD=13.9
OD=13.3
OD=12.4
43212ENUT (FOR STEERING KNUCKLE LH)
43330KJOINT ASSY, LOWER BALL, FRONT RH
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
43330MBOLT (FOR FRONT LOWER BALL JOINT RH)
43330SNUT (FOR FRONT LOWER BALL JOINT RH)
43340AJOINT ASSY, LOWER BALL, FRONT LH
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
43340CBOLT (FOR FRONT LOWER BALL JOINT LH)
43340GNUT (FOR FRONT LOWER BALL JOINT LH)
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
sub48068-42011
sub48068-42012
sub48068-42021
W(ALUMINIUM WHEEL)
W(ALUMINUM WHEEL)
48068FRETAINER, CUSHION(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
sub48069-42011
sub48069-42012
sub48069-42021
W(ALUMINIUM WHEEL)
W(ALUMINUM WHEEL)
48069BRETAINER, CUSHION(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
9011912281
main90119-12281
9011912282
main90119-12282
9011914054
main90119-14054
9017908246
main90179-08246
9017914006
main90179-14006
9538103025
main95381-03025
28 parts on this diagram · 1 diagram in section
