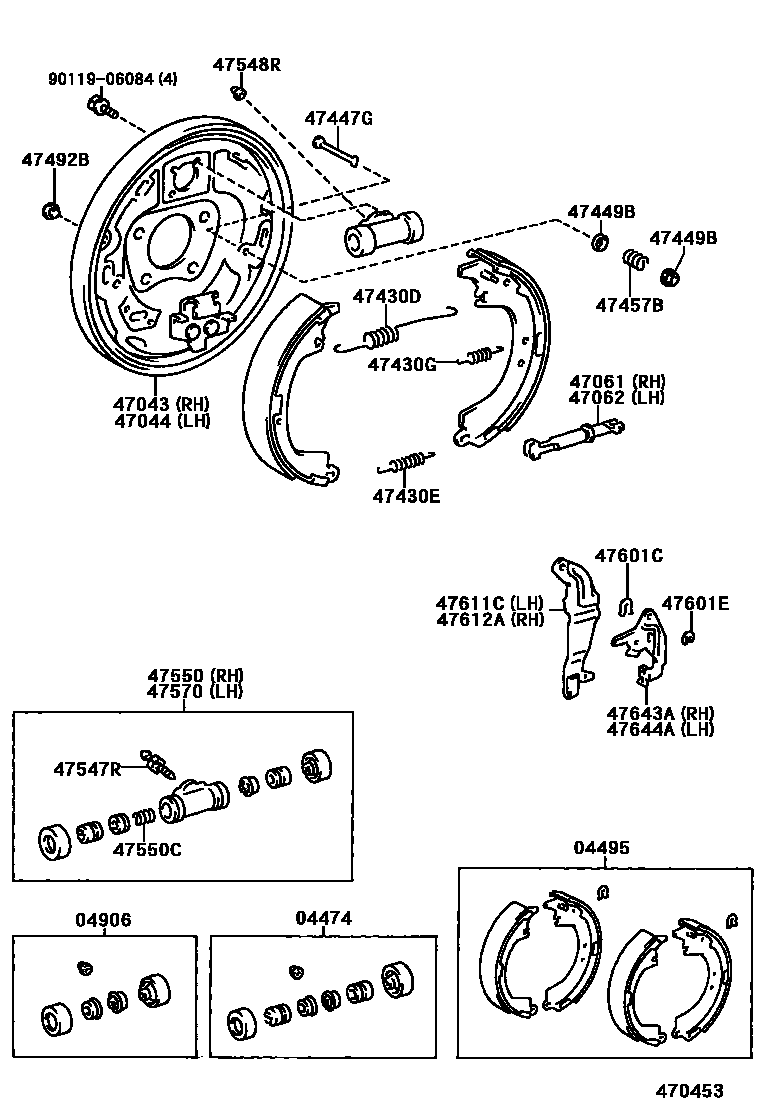

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-42010iSXA1#199511

04495SHOE KIT, REAR BRAKE

main04495-42010iSXA1#199511-199709

main04495-42030iSXA1#199709

04906CUP KIT, REAR WHEEL CYLINDER

main04906-42010iSXA1#199511

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-42012iSXA1#199511-199604

sub47043-42013

sub90105-10203

main47043-42013iSXA1#199604-199812

sub47043-42014

main47043-42014iSXA1#199812

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-42012iSXA1#199511-199604

sub47044-42013

sub90105-10203

main47044-42013iSXA1#199604-199812

sub47044-42014

main47044-42014iSXA1#199812

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-33010iSXA1#199511

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-33010iSXA1#199511

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-29008iSXA1#199511

RH

main90506-29009iSXA1#199511

LH

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23346iSXA1#199511

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12011iSXA1#199511

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20030iSXA1#199511

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iSXA1#199511

47457BSPRING, COMPRESSION(FOR REAR SHOE HOLD DOWN SPRING PIN)

main90501-18017iSXA1#199511

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010iSXA1#199511

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-26010iSXA1#199511

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iSXA1#199511

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-42010iSXA1#199511

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-09079iSXA1#199511

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-42010iSXA1#199511

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iSXA1#199511

T=1.2

47601ERING, E(FOR REAR BRAKE)

main96160-00500iSXA1#199511

47611CLEVER, PARKING BRAKE SHOE, RH

main47611-33010iSXA1#199511

47612ALEVER, PARKING BRAKE SHOE, LH

main47612-33010iSXA1#199511

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-33010iSXA1#199511

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-33010iSXA1#199511

9011906084

main90119-06084

26 parts on this diagram · 1 diagram in section
