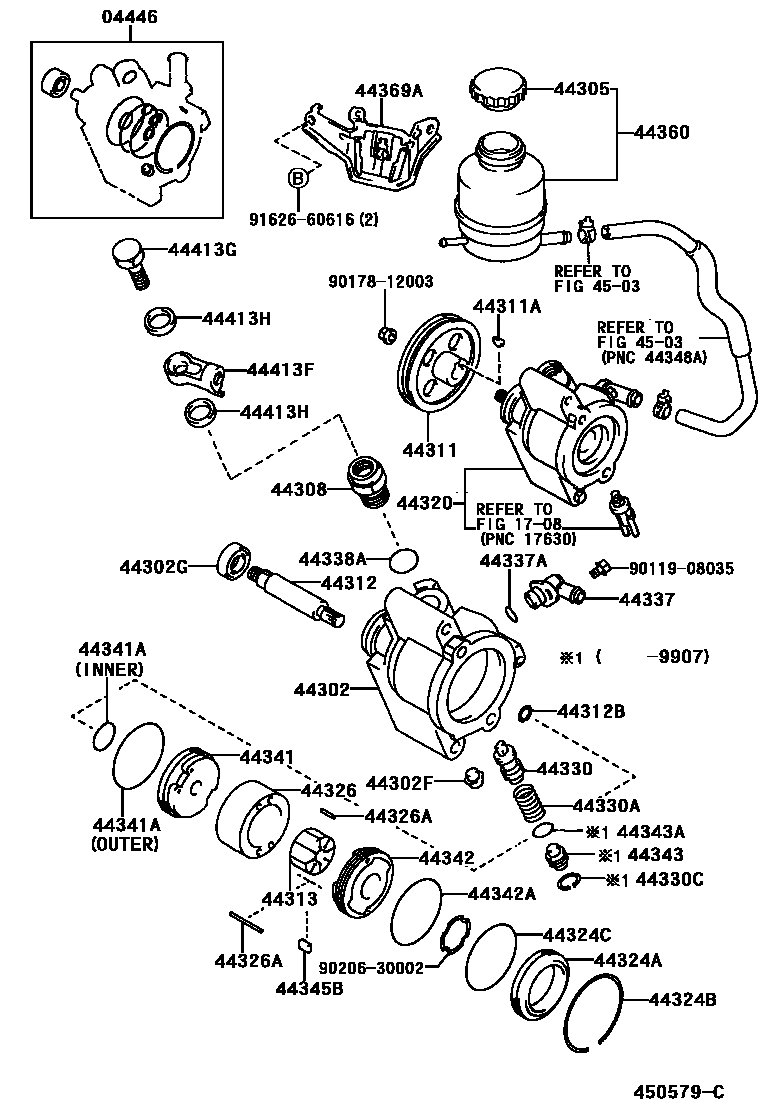

VANE PUMP & RESERVOIR (POWER STEERING)

04446GASKET KIT, POWER STEERING PUMP

main04446-20031iSXA1#199511

1708

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-20030iSXA1#199511

44302FSEAT, UNION(FOR VANE PUMP HOUSING)

main90410-05035iSXA1#199511

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-18007iSXA1#199511

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22030iSXA1#199511-199706

sub44305-22050

main44305-28020iSXA1#199706

sub44305-28050

44308UNION SUB-ASSY, PRESSURE PORT

main44308-22050iSXA1#199511-199608

main44308-35040iSXA1#199608

44311PULLEY, VANE PUMP

main44311-20060iSXA1#199511-199806

main44311-42010iSXA1#199806

44311AKEY, VANE PUMP PULLEY

main90280-05008iSXA1#199511

44312SHAFT, VANE PUMP

main44312-12030iSXA1#199511

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-10003iSXA1#199511

44313ROTOR, VANE PUMP

main44313-22040iSXA1#199511

NO MARK

main44313-22050iSXA1#199511

MARK 1

main44313-22060iSXA1#199511

MARK 2

main44313-22070iSXA1#199511

MARK 3

main44313-22080iSXA1#199511

MARK 4

44320PUMP ASSY, VANE

main44320-42011iSXA1#199511-199608

main44320-42012iSXA1#199608-199808

main44320-42060iSXA1#199808

44324AHOUSING, PUMP, REAR

main44324-12031iSXA1#199511

44324BRING, HOLE SNAP(FOR PUMP HOUSING REAR)

main90521-62002iSXA1#199511

44324CRING, O(FOR PUMP HOUSING REAR)

main90301-53006iSXA1#199511

sub90301-53007

44326RING, CAM(FOR VANE PUMP)

main44325-30100iSXA1#199511

NO MARK

main44325-30110iSXA1#199511

MARK 1

main44325-30120iSXA1#199511

MARK 2

main44325-30130iSXA1#199511

MARK 3

main44325-30140iSXA1#199511

MARK 4

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-04047iSXA1#199511

L=28,OD=4.0

main90250-04049iSXA1#199511

L=43,OD=4.0

44330VALVE ASSY, FLOW CONTROL

main44330-35131iSXA1#199511

MARK A

sub44330-32670

main44330-35141iSXA1#199511

MARK B

sub44330-32680

main44330-35151iSXA1#199511

MARK C

sub44330-32690

main44330-35161iSXA1#199511

MARK D

sub44330-32700

main44330-35171iSXA1#199511

MARK E

sub44330-32710

main44330-35181iSXA1#199511

MARK F

sub44330-32720

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12103iSXA1#199511

44330CRING, SNAP(FOR FLOW CONTROL VALVE)

main96151-01700iSXA1#199511-199907

44337UNION, POWER STEERING SUCTION PORT

main44337-22060iSXA1#199511

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11016iSXA1#199610

main90301-12003iSXA1#199511-199610

sub90301-11016

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-19003iSXA1#199511-199610

ID=19.5,OD=22.5

sub90301-19013

main90301-19013iSXA1#199610

ID=19.2,OD=22.3

sub90301-19018

44341PLATE, VANE PUMP SIDE, FRONT

main44341-32010iSXA1#199511

44341ARING, O(FOR VANE PUMP FRONT SIDE PLATE)

main90301-25001iSXA1#199511

INNER

sub90301-25008

main90301-52001iSXA1#199511

OUTER

44342PLATE, VANE PUMP SIDE, REAR

main44342-32010iSXA1#199511

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-52001iSXA1#199511

44343SEAT, FLOW CONTROL SPRING

main44343-12040iSXA1#199511-199907

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main90301-13012iSXA1#199610-199907

main96711-19014iSXA1#199511-199610

44345BPLATE, VANE PUMP

main44345-12010iSXA1#199511

L=14.997

main44345-12020iSXA1#199511

L=14.995

main44345-12030iSXA1#199511

L=14.993

main44345-12040iSXA1#199511

L=14.991

main44345-12050iSXA1#199511

L=14.989

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-42010iSXA1#199511-199706

sub44360-42011

main44360-42011iSXA1#199706

44369ABRACKET, OIL RESERVOIR, NO.1

main44390-42010iSXA1#199511-199608

main44390-42011iSXA1#199608

44413FTUBE, PRESSURE FEED, NO.2

main44413-10040iSXA1#199511-199808

main44413-16060iSXA1#199808

44413GBOLT, UNION(FOR PRESSURE FEED TUBE NO.2)

main96341-41603iSXA1#199511

44413HGASKET(FOR PRESSURE FEED TUBE NO.2)

main90430-16242iSXA1#199511

4503

9011908035

main90119-08035

9017812003

main90178-12003

9020630002

main90206-30002

9162660616

main91626-60616

41 parts on this diagram · 1 diagram in section
