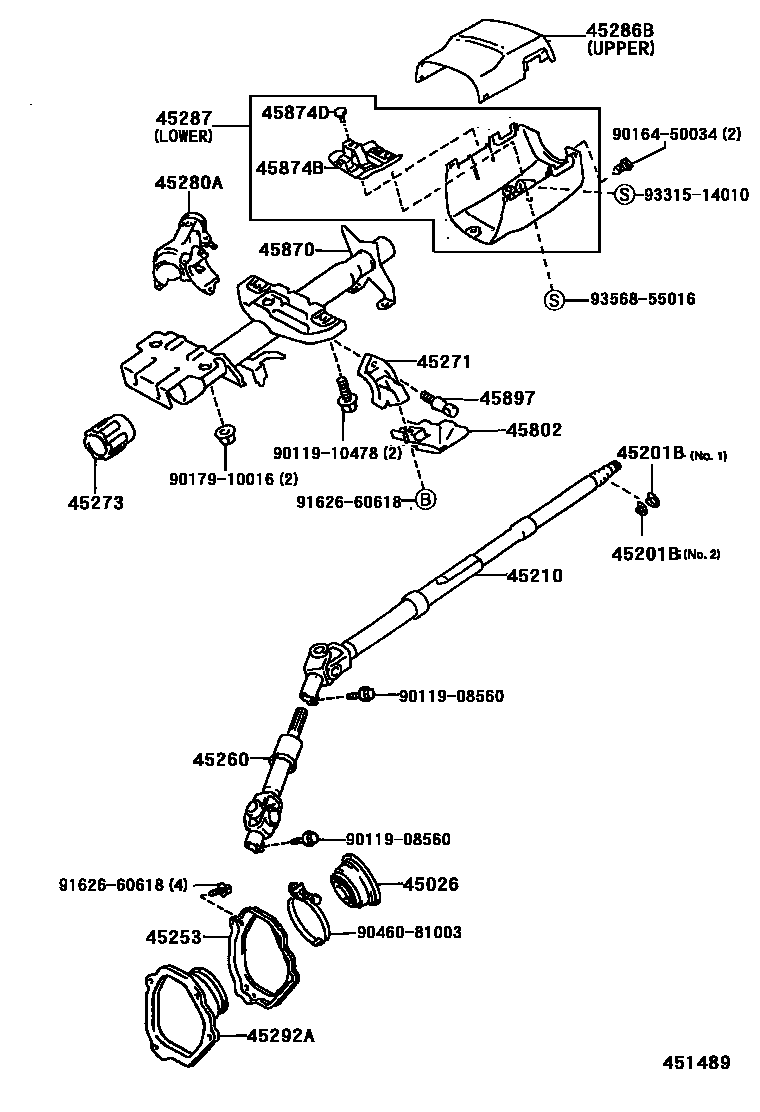

STEERING COLUMN & SHAFT

0001 1W/O(TILT STEERING) 0002 1W(TILT STEERING) 0003 1W/O(TILT STEERING:USA TYPE) 0004 1W/O(TILT STEERING:CANADA TYPE0005 1W(TILT STEERING:USA TYPE) 0006 1W(TILT STEERING:CANADA TYPE)

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-42010iSXA16..ATM;SXA10,11,15199709

CANADA TYPE

main45026-42010iSXA1#199511-199709

main45026-42020iSXA1#199709

USA TYPE

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iSXA1#199511-199709

T=1.20,W/O(TILT STEERING);W(TILT STEERING),NO.2

main90520-17042iSXA16..ATM;SXA10,11,15199709

T=1.20,W(TILT STEERING:CANADA TYPE)

main90520-17269iSXA1#199511-199709

T=1.20,W/O(TILT STEERING),NO.1

main90520-17269iSXA1#199709

T=1.20,UPPER

45210SHAFT ASSY, STEERING MAIN

main45210-20260iSXA1#199511-199709

main45210-20260iSXA16..ATM;SXA10,11,15199709

W/O(TILT STEERING:CANADA TYPE)

main45210-35170iSXA16..ATM;SXA10,11,15199709

W(TILT STEERING:CANADA TYPE)

main45210-35170iSXA1#199511-199709

W(TILT STEERING)

main45210-42010iSXA1#199709-199908

USA TYPE

main45210-42011iSXA1#199908

USA TYPE

45253COVER, STEERING COLUMN HOLE

main45253-42010iSXA1#199511

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-42030iSXA16..ATM;SXA10,11,15199709

CANADA TYPE

main45260-42030iSXA1#199511-199709

main45260-42050iSXA1#199709

USA TYPE

45271CLAMP, STEERING COLUMN, UPPER

main45271-12070iSXA1#199511-199709

W/O(TILT STEERING)

main45271-12070iSXA16..ATM;SXA10,11,15199709

W/O(TILT STEERING:CANADA TYPE)

main45271-12080iSXA1#199511-199709

W(TILT STEERING)

main45271-12080iSXA16..ATM;SXA10,11,15199709

W(TILT STEERING:CANADA TYPE)

main45271-16020iSXA1#199709

USA TYPE

45273BUSH, STEERING MAIN SHAFT

main45273-16020iSXA1#199512-199709

W/O(TILT STEERING)

main45273-16020iSXA16..ATM;SXA10,11,15199709

W/O(TILT STEERING:CANADA TYPE)

main45273-20030iSXA1#199511-199512

W/O(TILT STEERING)

sub45273-16020

main45273-20040iSXA1#199511-199512

W(TILT STEERING)

sub45273-20050

main45273-20050iSXA1#199512-199709

W(TILT STEERING)

main45273-20050iSXA16..ATM;SXA10,11,15199709

W(TILT STEERING:CANADA TYPE)

main45273-38010iSXA1#199709

USA TYPE

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-12331iSXA1#..MTM199709-199908

USA TYPE

sub45280-12341

main45280-12332iSXA1#..MTM199908

USA TYPE

sub45280-12342

main45280-12341iSXA1#..ATM199709-199908

USA TYPE

main45280-12342iSXA1#..ATM199908

USA TYPE

main45280-42050iSXA1#..MTM199511-199709

W(TILT STEERING)

sub45280-42080

main45280-42050iSXA10,15..MTM199709

W(TILT STEERING:CANADA TYPE)

sub45280-42080

main45280-42060iSXA11,15,16..ATM199511-199709

W/O(TILT STEERING)

main45280-42060iSXA1#..ATM199709

W/O(TILT STEERING:CANADA TYPE)

main45280-42070iSXA10,15..MTM199709

W/O(TILT STEERING:CANADA TYPE)

sub45280-42060

main45280-42070iSXA1#..MTM199511-199709

W/O(TILT STEERING)

sub45280-42060

main45280-42080iSXA1#..ATM199709

W(TILT STEERING:CANADA TYPE)

main45280-42080iSXA11,15,16..ATM199511-199709

W(TILT STEERING)

45286BCOVER, STEERING COLUMN, UPR

main45286-42050-C0iSXA16..ATM;SXA10,11,15199709

CANADA TYPE,BLACK,TRIM1#

main45286-42050-C0iSXA1#199511-199709

BLACK,TRIM1#

main45286-42070-C0iSXA1#199709

W(TILT STEERING:USA TYPE),BLACK,TRIM1#

main45286-42080-C0iSXA1#199709

W/O(TILT STEERING:USA TYPE),BLACK,TRIM1#

45287COVER, STEERING COLUMN, LWR

main45287-12460-C0iSXA1#199709

W/O(TILT STEERING:USA TYPE),BLACK,TRIM1#

main45287-42050-C0iSXA1#199511-199709

W/O(TILT STEERING),BLACK,TRIM1#

main45287-42050-C0iSXA16..ATM;SXA10,11,15199709

W/O(TILT STEERING:CANADA TYPE),BLACK,TRIM1#

main45287-42060-C0iSXA16..ATM;SXA10,11,15199709

W(TILT STEERING:CANADA TYPE),BLACK,TRIM1#

main45287-42060-C0iSXA1#199511-199709

W(TILT STEERING),BLACK,TRIM1#

main45287-42110-C0iSXA1#199709

W(TILT STEERING:USA TYPE),BLACK,TRIM1#

45292ACOVER, MAIN SHAFT LOWER DUST

main45292-42010iSXA1#199511

45802PROTECTOR SUB-ASSY, STEERING COLUMN, NO.1

main45802-12020iSXA1#199511-199709

45870TUBE ASSY, STEERING COLUMN

main45205-12350iSXA1#199709

W/O(TILT STEERING:USA TYPE)

main45205-42040iSXA1#199709

W(TILT STEERING:USA TYPE)

main45870-42050iSXA1#199511-199608

W/O(TILT STEERING)

sub45870-42080

main45870-42060iSXA1#199511-199608

W(TILT STEERING)

sub45870-42090

main45870-42080iSXA1#199608-199709

W/O(TILT STEERING)

main45870-42090iSXA1#199608-199709

W(TILT STEERING)

main45870-42090iSXA16..ATM;SXA10,11,15199709

W(TILT STEERING:CANADA TYPE)

45874BPROTECTOR, STEERING COLUMN, NO.1

main45874-42010iSXA16..ATM;SXA10,11,15..HT199709

W/O(TILT STEERING:CANADA TYPE)

main45874-42010iSXA1#199511-199709

W/O(TILT STEERING)

main45874-42020iSXA1#199511-199709

W(TILT STEERING)

main45874-42020iSXA16..ATM;SXA10,11,15199709

W(TILT STEERING:CANADA TYPE)

main45874-42040iSXA1#199709

USA TYPE

45874DCUSHION(FOR STEERING COLUMN PROTECTOR)

main90541-06008iSXA1#199511-199709

45897BOLT, STEERING LOCK SET

main45897-12020iSXA1#199511

9011908560

main90119-08560

9011910478

main90119-10478

9016450034

main90164-50034

9017910016

main90179-10016

9046081003

main90460-81003

9162660618

main91626-60618

9331514010

main93315-14010

9356855016

main93568-55016

24 parts on this diagram · 6 diagrams in section
