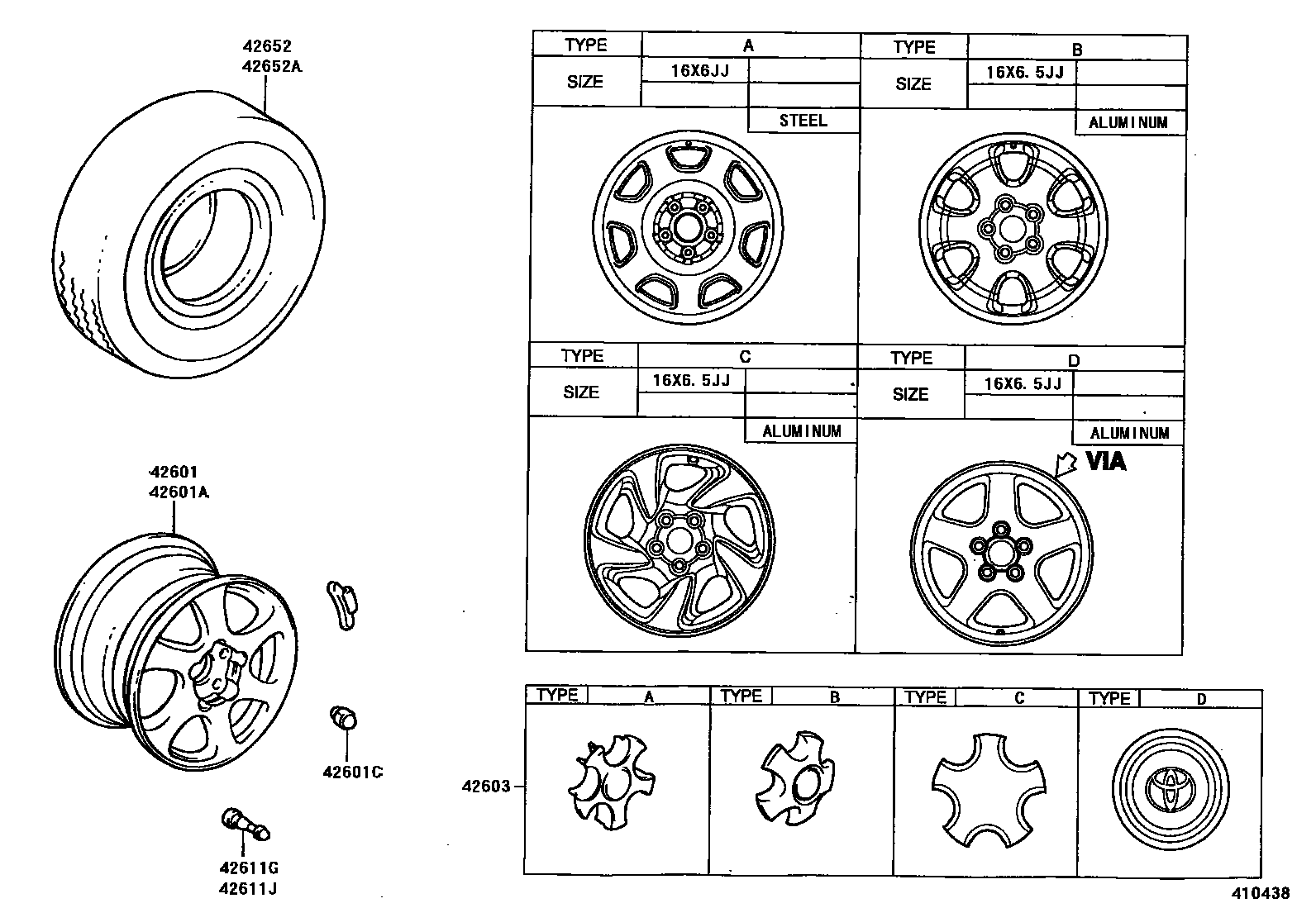

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
16X6JJ,TYPE A:REFER TO ILLUSTRATION
16X6.5JJ,TYPE B:REFER TO ILLUSTRATION
16X6.5JJ,TYPE F:REFER TO ILLUSTRATION
16X6.5JJ,TYPE C:REFER TO ILLUSTRATION
16X6.5JJ,L PACKAGE,TYPE D:REFER TO ILLUSTRATION
16X6.5JJ,TYPE D:REFER TO ILLUSTRATION
16X6J,TYPE H:REFER TO ILLUSTRATION
42601AWHEEL, DISC (FOR SPARE)
16X6JJ,TYPE A:REFER TO ILLUSTRATION
16X6.5JJ,TYPE B:REFER TO ILLUSTRATION
16X6.5JJ,TYPE F:REFER TO ILLUSTRATION
16X6.5JJ,TYPE C:REFER TO ILLUSTRATION
16X6.5JJ,L PACKAGE,TYPE D:REFER TO ILLUSTRATION
16X6J,L PACKAGE,TYPE H:REFER TO ILLUSTRATION
16X6J,TYPE H:REFER TO ILLUSTRATION
42601CNUT, HUB (FOR AXLE)
W(SPARE STEEL WHEEL)
FOR SPARE WHEEL
W(STEEL WHEEL)
L PACKAGE
W(ALUMINIUM WHEEL)
W(SPARE ALUMINIUM WHEEL)
42603ORNAMENT SUB-ASSY, WHEEL HUB
*ALU,TYPE A:REFER TO ILLUSTRATION
*STE,TYPE B:REFER TO ILLUSTRATION
*ALU,TYPE C:REFER TO ILLUSTRATION
*ALU,L PACKAGE,TYPE D:REFER TO ILLUSTRATION
*ALU,TYPE D:REFER TO ILLUSTRATION
*STE,TYPE E:REFER TO ILLUSTRATION
*ALU,TYPE F:REFER TO ILLUSTRATION
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42652TIRE
215/70R16 *B/S
215/70R16 TUBELESS,(J)
P215/70R16,*B/S
215/70R16 TUBELESS,(L)
235/60R16,W(ALUMINUM WHEEL)
42652ATIRE (FOR SPARE)
215/70R16 *B/S
215/70R16 TUBELESS,(J)
P215/70R16,*B/S
215/70R16 TUBELESS,(L)
235/60R16,W(ALUMINUM WHEEL)
8 parts on this diagram · 3 diagrams in section
