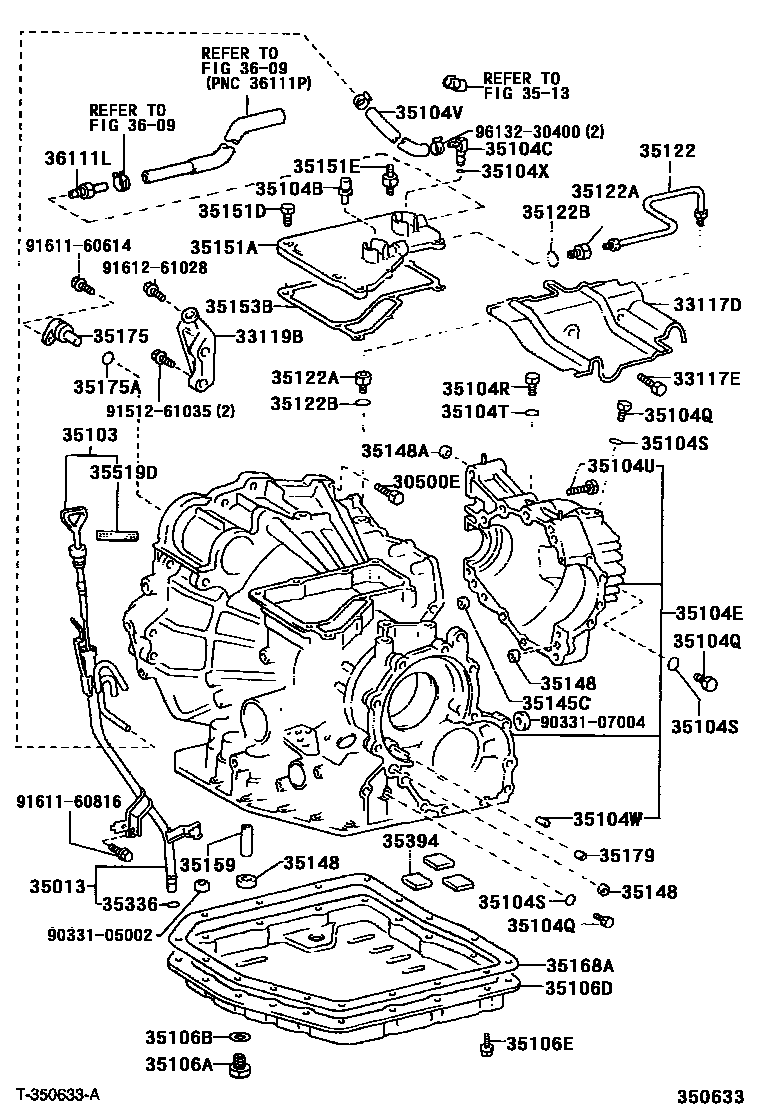

TRANSMISSION CASE & OIL PAN (ATM)
30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)
*10-1.25PX43-26
*12-1.25PX45-30
33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE
33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)
sub91641-H0820
33119BPLATE, STIFFENER, LH(ATM)
35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35104BPLUG, BREATHER, NO.1 (ATM)
35104CPLUG, BREATHER, NO.2 (ATM)
35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE
35104QPLUG, NO.1 (FOR TRANSAXLE CASE)
35104RPLUG, NO.2 (FOR TRANSAXLE CASE)
35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)
35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)
35104UBOLT (FOR TRANSAXLE CASE)
*10-1.25PX65-30
*10-1.25PX75-30
*10-1.25PX100-30
35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)
HOUSING SIDE
REAR COVER SIDE
35104XRING, O (FOR BREATHER PLUG)
35106BGASKET, DRAIN PLUG (ATM)
35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
35106EBOLT (FOR TRANSAXLE OIL PAN)
35122TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE)
35122AUNION (FOR AUTOMATIC TRANSAXLE BREATHER TUBE)
35122BRING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION)
3513
35145CGASKET, TRANSAXLE CASE
35148GASKET, GOVERNOR APPLY, NO.1
35148AGASKET, GOVERNOR APPLY, NO.2
35151ACOVER, TRANSAXLE CASE, UPPER
35151DBOLT (FOR TRANSAXLE CASE UPPER COVER)
*8-1.25PX28-18
35151EBOLT (FOR TRANSAXLE CASE UPPER COVER)
35153BGASKET, TRANSAXLE CASE UPPER COVER
35175CAP, TRANSAXLE CASE, NO.2
35175ARING, O (FOR TRANSAXLE CASE CAP)
35179GASKET, OVERDRIVE BRAKE
35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION
3609
36111LUNION, BREATHER, N0.2 (FOR TRANSFER)
9033105002
main90331-05002
9033107004
main90331-07004
9151261035
main91512-61035
9161160614
main91611-60614
9161160816
main91611-60816
9161261028
main91612-61028
9613230400
main96132-30400
49 parts on this diagram · 3 diagrams in section
