IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1

19100PPLUG, SPARK

main90919-01178i3SFE..SXA1#199511-199709

PK20R11

sub90919-01210

main90919-01194i3SFE..SXA1#199709

PK20TR11

main90919-01195i3SFE..SXA1#199709

BKR6EKPB11

19500COIL ASSY, IGNITION

main19500-74120i3SFE..SXA1#199608-199709

main90919-02209i3SFE..SXA1#199511-199608

19531HOLDER, RESISTIVE CORD, NO.1

main19531-74010i3SFE..SXA1#199511-199709

19531AHOLDER, RESISTIVE CODE, NO.3

main19531-74010i3SFE..SXA1#199511-199608

main19531-74010i3SFE..SXA1#199608-199709

NO.1

main19531-74020i3SFE..SXA1#199608-199709

NO.2

19532HOLDER, RESISTIVE CODE, NO.2

main19532-50010i3SFE..SXA1#199511-199608

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21598i3SFE..SXA1#199511-199608

main90919-21609i3SFE..SXA1#199608-199709

sub90919-29265

main90919-22386i3SFE..SXA1#199709-199808

sub90919-22400

main90919-22400i3SFE..SXA1#199808

19901ACORD, COIL RESISTIVE

main19590-74280i3SFE..SXA1#199511-199608

main19590-74300i3SFE..SXA1#199608-199709

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-15400i3SFE..SXA1#199511-199709

sub90919-15578

main90919-15466i3SFE..SXA1#199709-199808

sub90919-15546

main90919-15546i3SFE..SXA1#199808

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-15401i3SFE..SXA1#199511-199709

sub90919-15579

main90919-15465i3SFE..SXA1#199709-199808

sub90919-15547

main90919-15547i3SFE..SXA1#199808

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-15402i3SFE..SXA1#199511-199709

sub90919-15580

main90919-15464i3SFE..SXA1#199709-199808

sub90919-15548

main90919-15548i3SFE..SXA1#199808

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-15349i3SFE..SXA1#199511-199709

sub90919-15581

main90919-15463i3SFE..SXA1#199709-199808

sub90919-15549

main90919-15549i3SFE..SXA1#199808

9046400555

main90464-00555

9046400645

main90464-00645

9092901341

main90929-01341

9092901342

main90929-01342

91611A0614

main91611-A0614

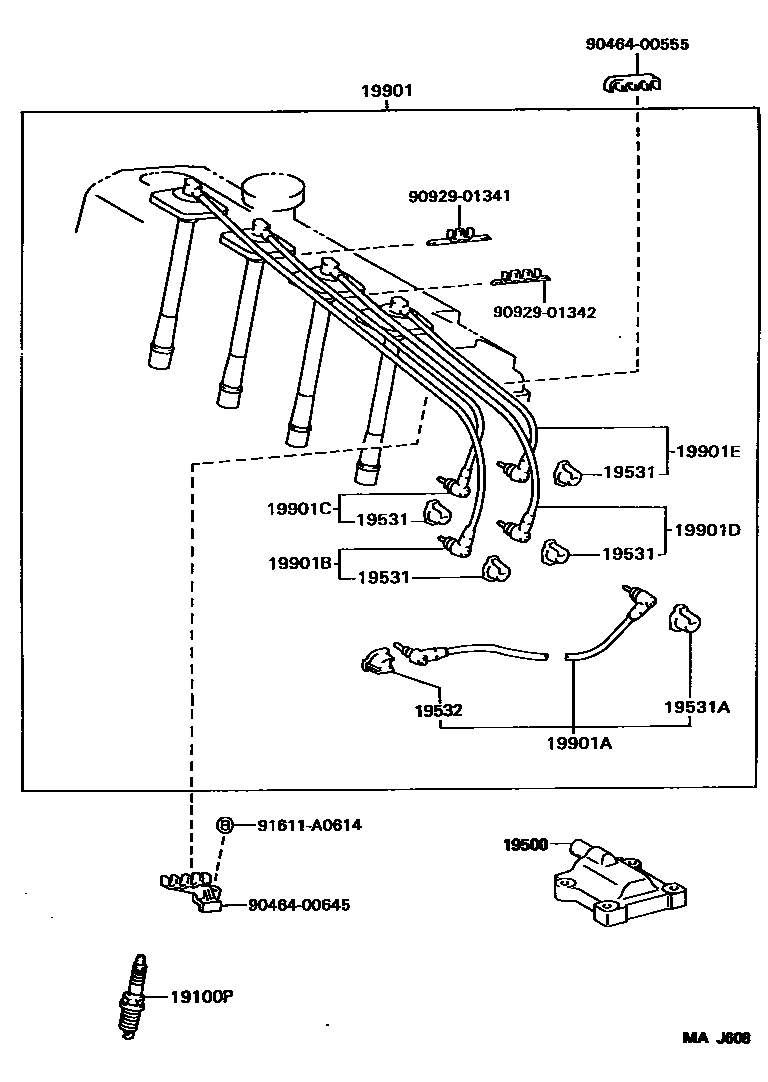

16 parts on this diagram · 3 diagrams in section
