HORN

86510HORN ASSY, HIGH PITCHED

main86510-20280iAXAA54..EUR;AXAH52..RHD..G..GEN201811-202410

86510AHORN ASSY, SECURITY

86511COVER, HIGH PITCHED HORN

main86511-42010

86520HORN ASSY, LOW PITCHED

main86520-20300iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

86570SPEAKER ASSY, VEHICLE APPROACHING

main86570-42030iAXAH5#,AXAL5#..EUR201910-202410

main86570-42030iAXAH54..P..GEN;AXAH5#,AXAL5#..(G,M,P,V)..EUR;AXAH5#,AXAL5#..LHD..X..(EUR,GEN)202008-202310

TAIWAN SPEC

main86570-42030iAXAH52..X..GEN;AXAH54..P..GEN;AXAH5#,AXAL5#..EUR202210-202310

BRAZIL SPEC

main86570-42030iAXAH52..X..GEN;AXAH54..P..GEN;AXAH5#,AXAL5#..EUR202210-202310

CHILE SPEC

main86570-42030iAXAH52..X..GEN;AXAH54..P..GEN;AXAH5#,AXAL5#..EUR202210-202310

OTHER LATIN-NCAP COUNTRY

86572CONTROLLER, VEHICLE APPROACHING SPEAKER

main86572-42040iAXAH5#,AXAL5#..RHD..X..EUR201910-202112

main86572-42051iAXAH5#..LHD..G..GEN201910-202112

TAIWAN SPEC

main86572-42170iAXAH52..X..GEN;AXAH54..P..GEN;AXAH5#,AXAL5#..LHD..EUR202112-202310

OTHER LATIN-NCAP COUNTRY

main86572-42170iAXAH54..P..GEN202112-202310

BRAZIL SPEC

main86572-42170iAXAH54..P..GEN202112-202310

CHILE SPEC

main86572-42170iAXAH54..P..GEN202112-202310

TAIWAN SPEC

main86572-42180iAXAH5#,AXAL5#..RHD..EUR202112-202310

main865H2-42010iAXAH52,AXAL5#..LHD..EUR;AXAH54..LHD..(G,M,P,V)..EUR202310-202410

main865H2-42020iAXAH54..RHD..EUR;AXAH52..RHD..M..EUR202310-202410

9010508478

main90105-08478

9011906A06

main90119-06A06

9017906274

main90179-06274

9167180612

main91671-80612

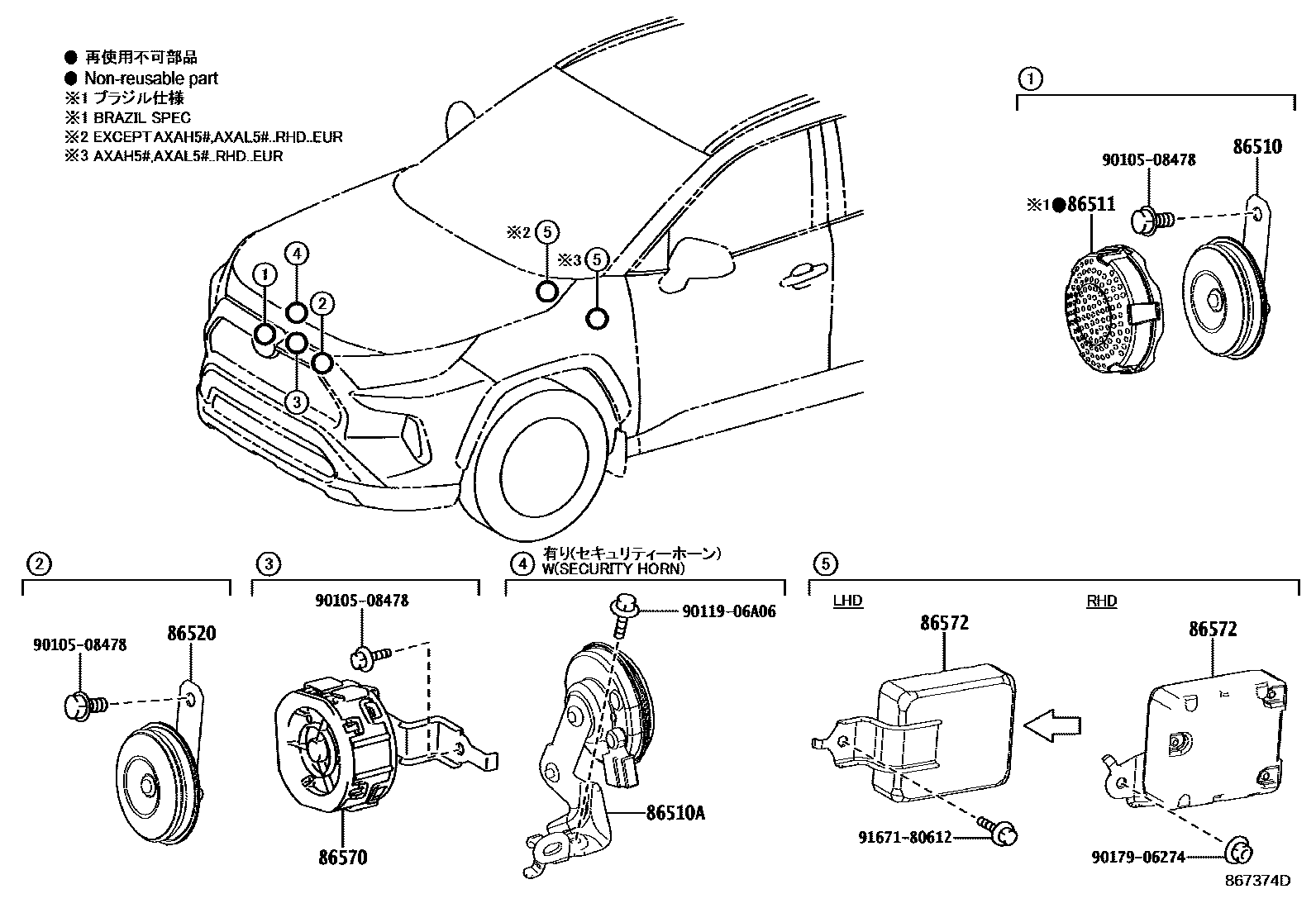

10 parts on this diagram · 1 diagram in section
