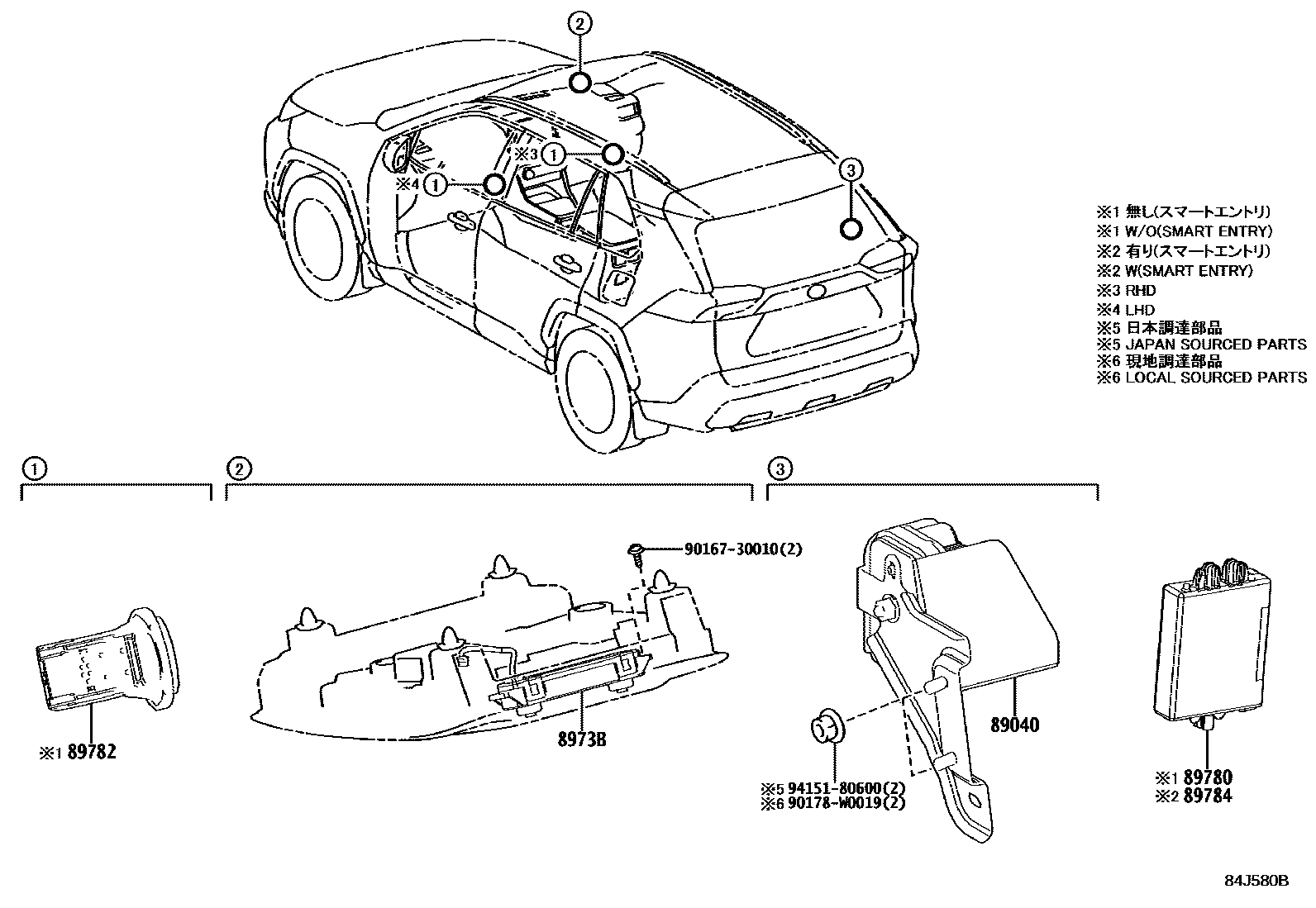

ANTI-THEFT DEVICE

89040SIREN ASSY, THEFT WARNING

main89040-0R010iAXAA54,MXAA5#..RUS201910-202203

main89040-42020iAXAA54..SA201811-202109

ANTI-THEFT SYSTEM-IMMOBILIZER & DOUBLE-LOCK & ALARM

main89040-42020iAXAA54..SA202008-202109

ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))

main89040-42020iAXAH5#..RHD..EUR;MXAA52..RHD..6F..EUR201811-201910

UNITED KINGDOM, MALTA SPEC

main89040-42020iMXAA54..RHD..6F;AXAH54..RHD..GEN;MXAA5#..(V,X)..SA;AXAA5#..RHD..G..GEN;MXAA52..RHD..CVT..M..EUR;MXAA52..RHD..CVT..G..(EUR,GEN,SA)201811-202007

ANTI-THEFT SYSTEM-*IM & *DOL & ALARM & *GBS(QATER/*BDO))

main89040-42020iAXAA54..SA201901-202007

main89040-42070iMXAA52..LHD..(G,M)..EUR;AXAH5#,AXAL5#,MXAA54..(G,M,P,V)..EUR202110-202410

ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))

main89040-42070iMXAA5#..SA202112-202210

main89040-42070iAXAA54,AXAH54,MXAA5#..(G,V)..SA202110-202310

ANTI-THEFT SYSTEM-IMMOBILIZER & DOUBLE-LOCK & ALARM

8973BSENSOR, THEFT WARNING ULTRASONIC & TILT

main8973B-42010iAXAH5#,AXAL5#..(G,M,P,V)..EUR201811-202310

ANTI-THEFT SYSTEM-IMMOBILIZER & DOUBLE-LOCK & ALARM

main8973B-42010iAXAH54..RUS201901-202210

main8973B-42010iAXAH5#..RHD..EUR;MXAA52..RHD..6F..EUR201811-201910

UNITED KINGDOM, MALTA SPEC

main8973B-42010iMXAA54..RHD..6F;AXAH54..RHD..GEN;MXAA5#..(V,X)..SA;AXAA5#..RHD..G..GEN;MXAA52..RHD..CVT..M..EUR;MXAA52..RHD..CVT..G..(EUR,GEN,SA)201811-202007

ANTI-THEFT SYSTEM-*IM & *DOL & ALARM & *GBS(QATER/*BDO))

main8973B-42010iAXAH54..RHD..M..GEN;AXAA52,MXAA54..RHD..(6F,8FC)202008-202310

ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))

main8973B-42020iAXAH54..RHD..EUR;AXAH52..RHD..M..EUR202310-202410

ANTI-THEFT SYSTEM-*IM & *D0L & ALARM & *GBS(QATER/*BDO))

89780COMPUTER ASSY, TRANSPONDER KEY

main897H0-02010iMXAA5#..X..RUS201910-202203

sub897H0-02011

main897H0-12020iMXAA52..CVT..X..GEN;MXAA52..LHD..6F..X..GEN;AXAA54,MXAA54..X..(GCC,GEN);AXAA52,MXAA52..X..(EUR,GCC,SA)201811-202208

main897H0-12021iMXAA52..X..(EUR,SA)202209-202310

89782COIL, TRANSPONDER KEY

main89782-0R050iMXAA5#..X..RUS201910-202203

main89782-33070iMXAA52..CVT..X..GEN;MXAA52..LHD..6F..X..GEN;AXAA54,MXAA54..X..(GCC,GEN);AXAA52,MXAA52..X..(EUR,GCC,SA)201811-202310

89784COMPUTER, IMMOBILIZER CODE

main89784-02100iAXAA54,MXAA5#..(G,M)..RUS201910-202203

main89784-12040iAXAA5#..LHD..(G,V)..GEN201811-202007

MEXICO SPEC&POWER DOOR LOCK-AUTO LOCK(SPEED) & POWER DOOR LOCK

main89784-12040iAXAA5#..LHD..(G,V)..GEN201811-202007

MEXICO SPEC&POWER DOOR LOCK-AUTO LOCK(SPEED) & *PBD(*KPBD)

main89784-12040iAXAA5#..LHD..(G,V)..GEN201811-202007

MEXICO SPEC

main89784-12040iAXAH52..LHD..M..GEN201901-202007

SMART ENTRY-WITH(*PAB)

main89784-12040iAXAL5#..ARL;AXAA54..G..ARL;MXAA52..6F..ARL;MXAA54..RHD..6F;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;AXAH5#,AXAL5#..RHD..X.201811-202310

main89784-42060iMXAA5#..CVT..(G,M)..EUR202210-202310

main89784-60210iAXAL5#..RHD;AXAH52..RHD..(G,P)..EUR202411

main89784-60220iAXAH52,AXAL5#..LHD..EUR;AXAH54..LHD..(G,M,P,V)..EUR202411

main89784-K0021iAXAL5#..RHD;AXAH52..RHD..(G,P)..EUR202310-202411

main89784-V1010iAXAH52,AXAL5#..LHD..EUR;AXAH54..LHD..(G,M,P,V)..EUR202310-202411

9016730010

main90167-30010

90178W0019

main90178-W0019

9415180600

main94151-80600

8 parts on this diagram · 1 diagram in section
