AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-42680iMXAA52..6F..G..SA201901-201909

main89170-42A10iMXAA54..6F..G..GEN201811-201909

main89170-42A20iAXAH52..RHD..G..GEN201811-202004

main89170-42A30iAXAA54..EUR201811-202004

main89170-42A40iAXAH5#,AXAL5#..ARL;AXAH5#,AXAL5#..LHD..EUR201811-202007

main89170-42A50supersedes 89170-42A30iMXAA5#..LHD..EUR201910-202007

ITALY SPEC&AUDIO-JBL 8INCH DAB, EUROPE

main89170-42A60iAXAH5#,AXAL5#..RHD..EUR201811-202007

TURKEY SPEC

main89170-42A70iAXAA54,MXAA5#..RUS201910-202009

main89170-42A80iAXAH54..RUS201902-201909

main89170-42B80iAXAH52,AXAL5#..LHD..EUR;AXAH54..LHD..(G,M,P,V)..EUR202310

*614

main89170-42B90iAXAL5#..RHD;AXAH52..RHD..(G,P)..EUR202310

*614

main89170-42D20iMXAA54..LHD..V..GEN;MXAA52..LHD..CVT..(G,X)..GEN202008-202202

TAIWAN SPEC

main89170-42D21iMXAA54..LHD..V..GEN;MXAA52..LHD..CVT..(G,X)..GEN202202-202210

TAIWAN SPEC

main89170-42D30iAXAH52..(G,P)..GEN;AXAH54..LHD..G..GEN202008-202202

TAIWAN SPEC

main89170-42D31iAXAH52..LHD..(G,M)..EUR;AXAH54..LHD..(G,M,V,X)..EUR202210-202310

TAIWAN SPEC

main89170-42D40supersedes 89170-42D20iMXAA52..RHD..EUR202008-202202

main89170-42D41iMXAA5#..EUR202210

main89170-42D50supersedes 89170-42D30iAXAL5#..LHD..X;AXAL5#..(G,M,P,V)..EUR;AXAH5#..LHD..(P,V)..EUR;AXAH5#..RHD..(G,M,P,V)..EUR202008-202202

main89170-42D51iAXAH5#,AXAL5#..LHD..X..EUR;AXAH5#,AXAL5#..(G,M,P,V)..EUR202202-202210

main89170-42D60iAXAA54,MXAA5#..RUS202010-202202

P/N LABEL=8917042D60

main89170-42D61iMXAA54..JPP..RUS202310

main89170-42D70iAXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAA52,MXAA5#..RHD..(6F,8FC)..GEN202008-202111

main89170-42D71iAXAA52..GCC;AXAA54..LHD..V;MXAA54..(G,V)..GEN;MXAA5#..LHD..6F..GEN;AXAA52..LHD..(G,M)..GEN;MXAA54..CVT..(M,X)..(GCC,GEN);AXAA54,MXAA52..(ATM,CVT)..(G,M,X)..(GCC,GEN202202-202210

main89170-42D80iAXAH52..GCC;AXAH54..(G,X)..(GCC,GEN);AXAH52..LHD..(G,M,P)..GEN;AXAH54..LHD..M..(GCC,GEN)202008-202202

main89170-42D81iAXAH52..GCC;AXAH52..(G,M,P)..GEN;AXAH54..(G,M,X)..(GCC,GEN)202210-202310

OTHER LATIN-NCAP COUNTRY

main89170-42D90iAXAA54,MXAA5#..SA202008-202202

main89170-42D91iMXAA52..X..SA202210

main89170-42F30iAXAH54..SA202112-202202

main89170-42F31iAXAH54..SA202202-202210

main89170-42B70iAXAH52..LHD..(G,M)..EUR;AXAH54..LHD..(G,V)..EUR202310

EXCEPT WVTA COUNTRY,*614

89173ASENSOR, AIRBAG, FRONT RH

main89173-19515iMXAA54..EUR;MXAA52..G..EUR;MXAA52..(M,X)..(EUR,SA)202210

main89173-49505iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH202008-202210

MARK = RA

89174ASENSOR, AIRBAG, FRONT LH

main89173-19515iAXAA54..EUR;AXAH52..RHD..G..GEN201811-202004

main89173-49505iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5202008-202111

MARK = RA

89831DSENSOR, FLOOR SIDE AIRBAG, RH

main89831-42060iMXAA52..CVT;AXAA54..LHD..V;MXAA54..RHD..CVT;MXAA54..(M,X)..GCC;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..E202008-202202

main89831-47050iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH202202-202210

89831ESENSOR, FLOOR SIDE AIRBAG, LH

main89831-42060iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5202008-202111

main89831-47050iAXAA54,MXAA5#..RUS202202-202203

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-12030iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR202310-202410

main8983A-33010iAXAA54..EUR;AXAH52..RHD..G..GEN201811-202004

main8983A-33011iAXAA54,MXAA5#..RUS202007-202009

main8983A-52010iAXAA5#,AXAH5#,AXAL5#,MXAA5#202008-202101

main8983A-52011iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH202102-202210

8983AASENSOR, SIDE AIRBAG PRESSURE, LH

main8983A-12030iAXAH54..X..EUR;AXAH54..RHD..EUR;AXAH52..RHD..M..EUR202310-202410

main8983A-33010iAXAH52..M,X;MXAA52..CVT;MXAA52..6F..(M,X);MXAA52..6F..G..EUR;AXAH52..G..(ARL,EUR);MXAA54..(M,V,X)..GEN;MXAA54..EUR,GCC,RUS,SA;AXAA5#..ARL,GCC,GEN,RUS,SA;AXAH54,AXAL201811-202006

main8983A-33011iAXAA54,MXAA5#..RUS202007-202009

main8983A-52010iAXAA5#,AXAH5#,AXAL5#,MXAA5#202008-202101

main8983A-52011iAXAA54..LHD..V;MXAA52..JPP..CVT;AXAH54..(G,P)..GEN;AXAH54..LHD..M..GEN;AXAA54..(M,V,X)..ARL;MXAA52..LHD..6F..GEN;AXAL5#..(G,M,P,V)..EUR;MXAA54..JPP..CVT..(M,X);AXAH202102-202210

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-28040iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-201909

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-28040iAXAA54,MXAA5#..RUS201811-202009

90105W0251

main90105-W0251

9011908C89

main90119-08C89

90119W0206

main90119-W0206

91553A0620

main91553-A0620

9415180600

main94151-80600

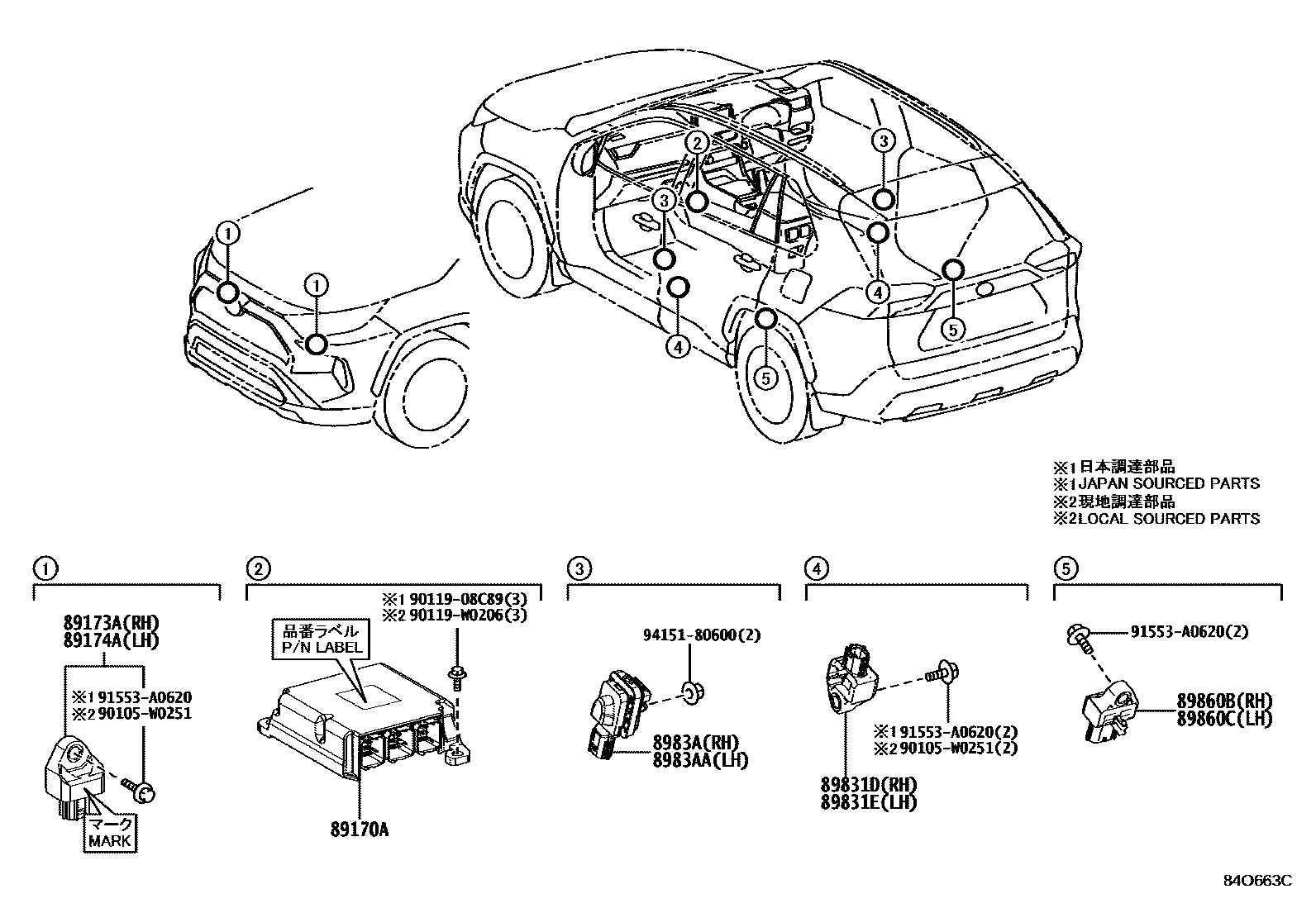

14 parts on this diagram · 1 diagram in section
