SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1SUSPENSION CROSSMEMBER 0003 1SUSPENSION CROSSMEMBER 0004 1UNDER COVER 0005 1UNDER COVER 0007 1UNDER COVER 0008 1UNDER COVER 0009 1UNDER COVER 0010 1UNDER COVER 0011 1UNDER COVER

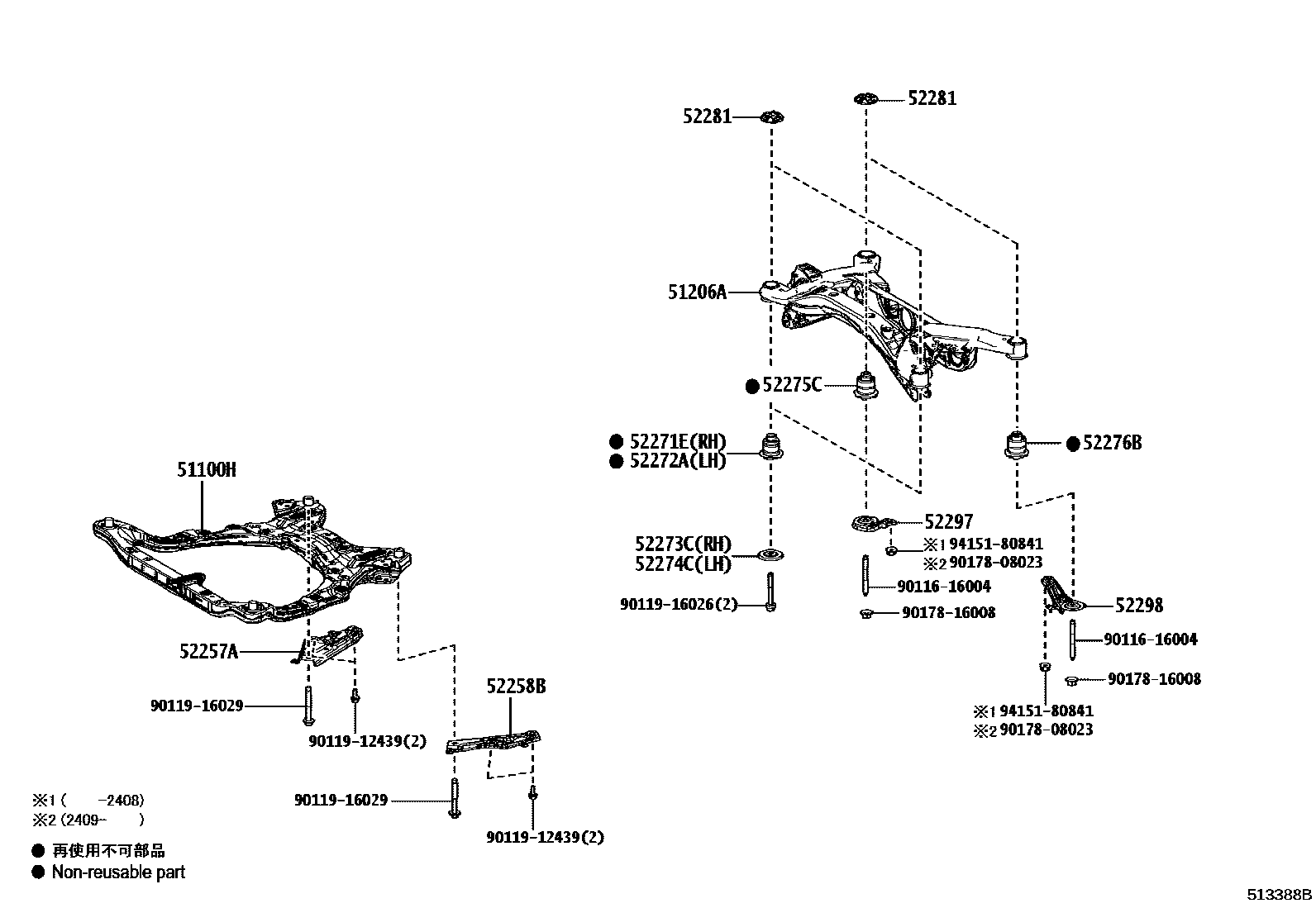

51100HFRAME ASSY, FRONT

main51100-30880iAXAA54,MXAA5#..RUS202108-202410

main51100-42010iAXAA5#,AXAH5#,MXAA5#201811-201908

sub51100-42011

sub51420-42011

sub51420-42021

sub51420-42031

main51100-42011iAXAA54,MXAA5#..RUS201908-202107

sub51100-30880

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-42070iAXAA54,MXAA54..RUS201811-202310

main51206-42080iAXAH54,AXAL54..ARL,EUR,GCC,GEN201902-202410

main51206-42090iMXAA52..G..EUR;MXAA52..(M,X)..(EUR,SA)201811-202410

52257ABRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-42020iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

52258BBRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-42020iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-42010iMXAA54..EUR;MXAA52..G..EUR;MXAA52..(M,X)..(EUR,SA)201811-202410

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52271-42010iAXAA54..EUR;AXAH52..RHD..G..GEN201811-202410

52273CSTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52273-33030iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

52274CSTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52273-33030iAXAA54..EUR;AXAH52..RHD..G..GEN201811-202410

52275CCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR RH

main52275-42010iAXAL5#..ARL;AXAA54..G..ARL;AXAA52..X..GEN;MXAA54..(G,V)..GCC;AXAA54..RHD..V..GEN;AXAH54..RHD..M..GEN;AXAA52,AXAH52..RHD..GEN;MXAA5#..RHD..6F..(ARL,GEN);AXAH5#,AXAL5201811-202410

52276BCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52276-42010iMXAA54..EUR;MXAA52..G..EUR;MXAA52..(M,X)..(EUR,SA)201811-202410

52281CUSHION, DIFFERENTIAL SUPPORT MEMBER

main52281-33020iAXAA54,MXAA5#..RUS201811-202410

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-42020iAXAA5#,AXAL5#..JPP;AXAH52..LHD..M..EUR;AXAH52..(G,P,X)..EUR;MXAA52..X..(ARL,GCC,GEN);MXAA52..(G,M)..(ARL,GEN,SA);AXAH54..LHD..(G,M,P,V)..EUR;AXAH5#,MXAA54..JPP..(AR201811-202410

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52298-42010iAXAH54..RUS;MXAA5#..6F..G..(GEN,SA)201811-202410

9011616004

main90116-16004

9011912439

main90119-12439

9011916026

main90119-16026

9011916029

main90119-16029

9017808023

main90178-08023

9017816008

main90178-16008

9415180841

main94151-80841

20 parts on this diagram · 10 diagrams in section
