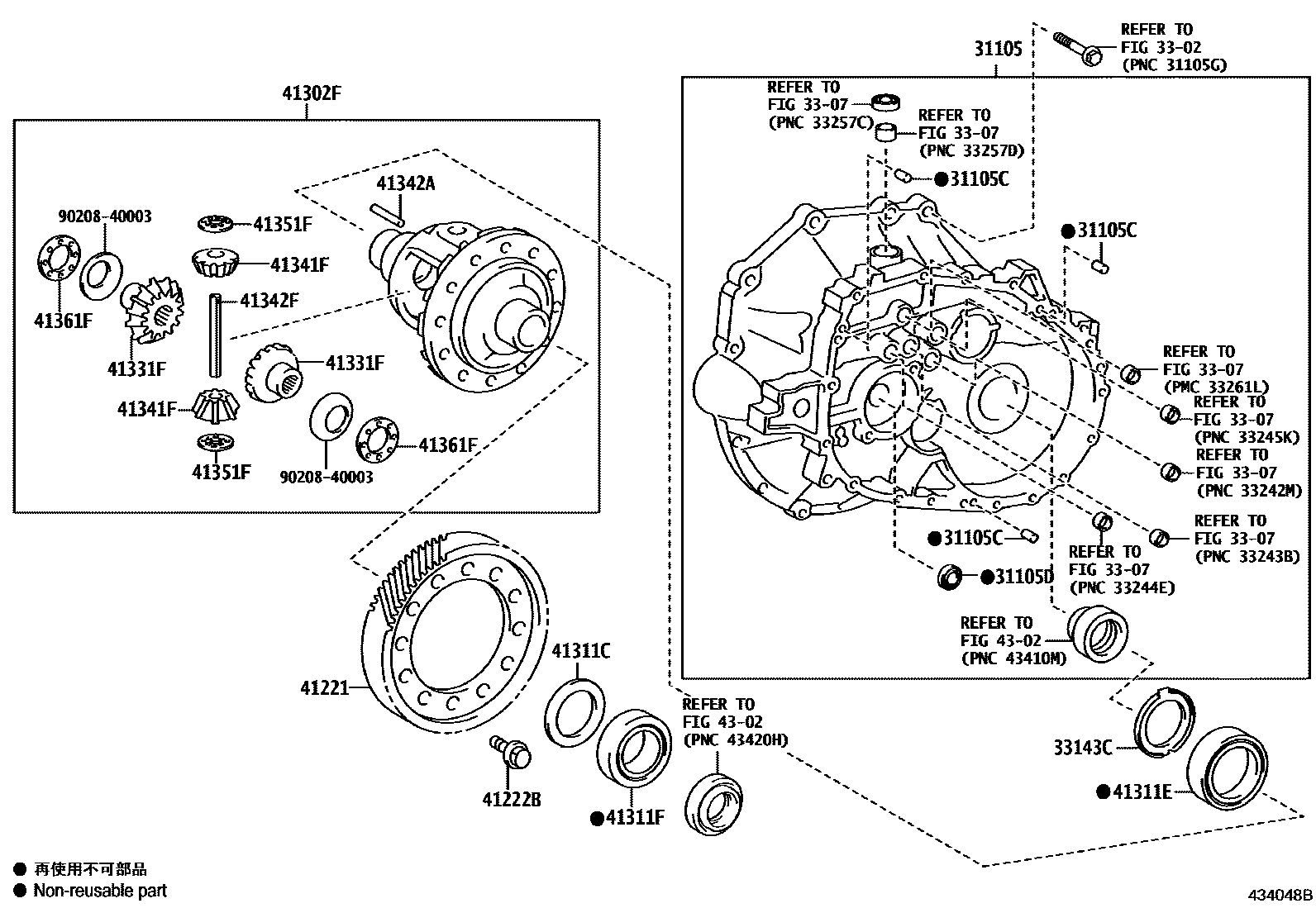

FRONT AXLE HOUSING & DIFFERENTIAL
31105CASE SUB-ASSY, TRANSAXLE(MTM)
31105CPIN, STRAIGHT(FOR TRANSAXLE CASE)
31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
3302
3307
33143CBAFFLE, FRONT DIFFERENTIAL OIL
41221GEAR, FRONT DIFFERENTIAL RING
main41221-33360iMXAA52..JPP..CVT;MXAA54..JPP..CVT..(M,X);MXAA54..CVT..(G,V)..(EUR,GEN,SA)202010-202310
AISIN AW:REFER 34-01
main41221-33360iMXAA52..CVT..X..(ARL,GCC,GEN);MXAA52..CVT..(G,M)..(ARL,GEN,SA);MXAA54..JPP..CVT..(GCC,GEN,RUS,SA)202310
AISIN:REFER 34-01
main41221-42250iMXAA52..CVT..X..(ARL,GCC,GEN);MXAA52..CVT..(G,M)..(ARL,GEN,SA);MXAA54..JPP..CVT..(GCC,GEN,RUS,SA)202008-202310
TMH:REFER FIG.34-01
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
main90105-12303iMXAA52..JPP..CVT;MXAA54..JPP..CVT..(M,X);MXAA54..CVT..(G,V)..(EUR,GEN,SA)201811-202310
41302FCASE SUB-ASSY, FRONT DIFFERENTIAL
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.05,MARK A
T=2.10,MARK B
T=2.15,MARK C
T=2.20,MARK D
T=2.25,MARK E
T=2.30,MARK F
T=2.35,MARK G
T=2.40,MARK H
T=2.45,MARK J
T=2.50,MARK K
T=2.55,MARK L
T=2.60,MARK M
T=2.65,MARK N
T=2.70,MARK P
T=2.75,MARK Q
T=2.80,MARK R
T=2.85,MARK S
T=2.90,MARK T
T=2.075,MARK AA
T=2.125,MARK BB
T=2.175,MARK CC
T=2.225,MARK DD
T=2.275,MARK EE
T=2.325,MARK FF
T=2.375,MARK GG
T=2.425,MARK HH
T=2.475,MARK JJ
T=2.525,MARK KK
T=2.575,MARK LL
T=2.625,MARK MM
T=2.675,MARK NN
T=2.725,MARK PP
T=2.775,MARK QQ
T=2.825,MARK RR
T=2.875,MARK SS
T=1.76,MARK A
T=1.79,MARK B
T=1.82,MARK C
T=1.85,MARK D
T=1.88,MARK E
T=1.91,MARK F
T=1.94,MARK G
T=1.97,MARK H
T=2.00,MARK J
T=2.03,MARK K
T=2.06,MARK L
T=2.09,MARK M
T=2.12,MARK N
T=2.15,MARK P
T=2.18,MARK Q
T=2.21,MARK R
T=2.24,MARK S
T=2.27,MARK T
T=2.30,MARK U
T=2.33,MARK V
T=1.77,MARK A
T=1.80,MARK B
T=1.83,MARK C
T=1.86,MARK D
T=1.89,MARK E
T=1.92,MARK F
T=1.95,MARK G
T=1.98,MARK H
T=2.01,MARK J
T=2.04,MARK K
T=2.07,MARK L
T=2.10,MARK M
T=2.13,MARK N
T=2.16,MARK P
T=2.19,MARK Q
T=2.22,MARK R
T=2.25,MARK S
T=2.28,MARK T
T=2.31,MARK U
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
INNER
OUTER
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
OUTER
INNER
main90366-51007iMXAA52..CVT..X..(ARL,GCC,GEN);MXAA52..CVT..(G,M)..(ARL,GEN,SA);MXAA54..JPP..CVT..(GCC,GEN,RUS,SA)201811-202310
41331FGEAR, FRONT DIFFERENTIAL SIDE
41341FPINION, FRONT DIFFERENTIAL
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.0,MARK 1
T=1.1,MARK 2
T=1.2,MARK 3
T=1.3,MARK 4
4302
9020840003
main90208-40003
20 parts on this diagram · 6 diagrams in section
