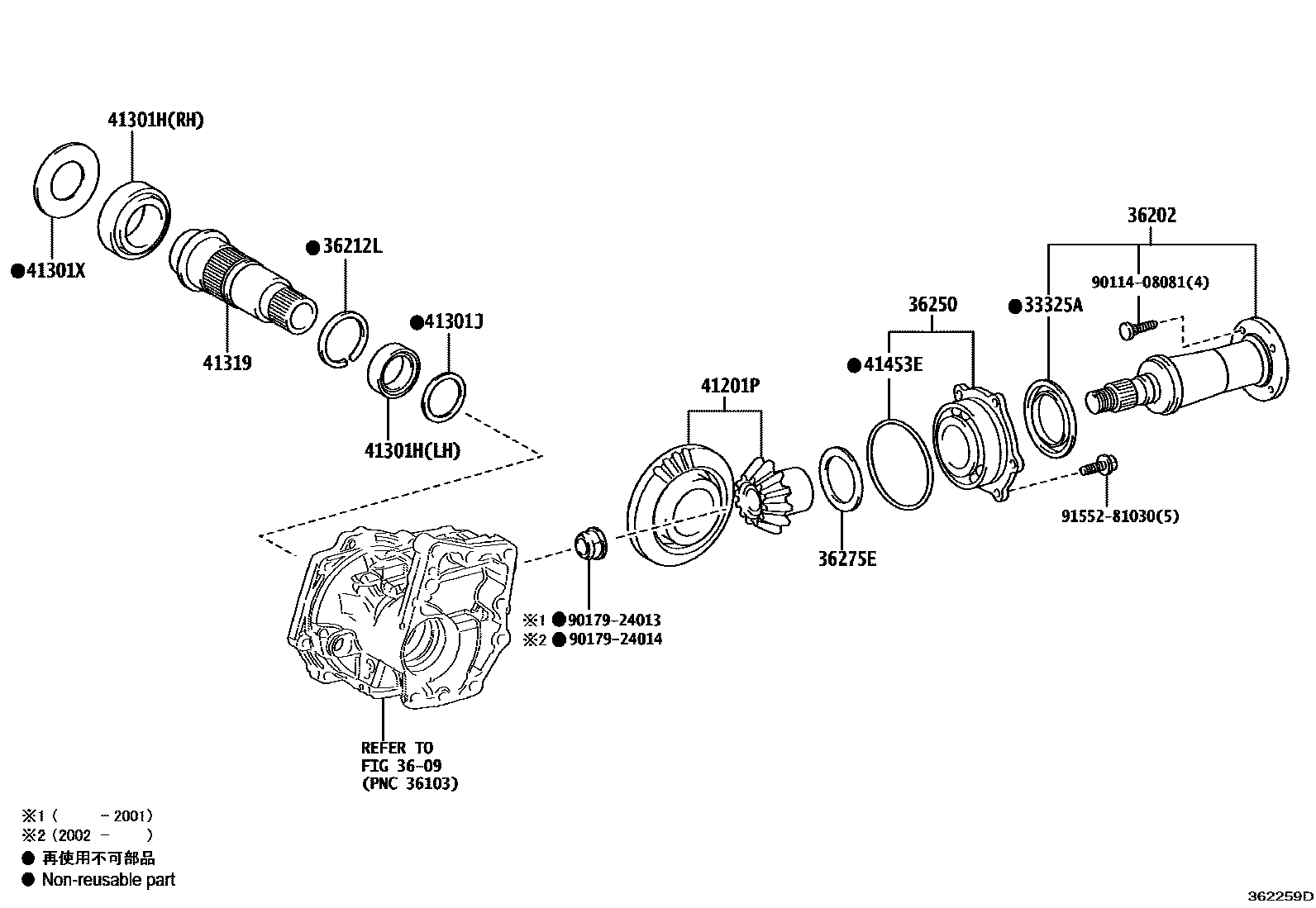

TRANSFER GEAR
33325ADEFLECTOR, DUST (FOR TRANSFER OUTPUT REAR SHAFT)
3609
36202SHAFT SUB-ASSY, TRANSFER OUTPUT, REAR
36212LRING, SHAFT SNAP
T=1.98-2.02
36250BEARING ASSY, TRANSFER
36275EWASHER, TRANSFER OUTPUT SHAFT
T=1.02,MARK 01
T=1.04,MARK 02
T=1.06,MARK 03
T=1.08,MARK 04
T=1.10,MARK 05
T=1.12,MARK 06
T=1.14,MARK 07
T=1.16,MARK 08
T=1.18,MARK 09
T=1.20,MARK 10
T=1.22,MARK 11
T=1.24,MARK 12
T=1.26,MARK 13
T=1.28,MARK 14
T=1.30,MARK 15
T=1.32,MARK 16
T=1.34,MARK 17
T=1.36,MARK 18
T=1.38,MARK 19
T=1.40,MARK 20
T=1.42,MARK 21
T=1.44,MARK 22
T=1.46,MARK 23
T=1.48,MARK 24
T=1.50,MARK 25
T=1.52,MARK 26
T=1.54,MARK 27
T=1.56,MARK 28
41201PGEAR KIT, TRANSFER
41301HBEARING(FOR RING GEAR MOUNTING CASE)
LH
RH
41301JWASHER, PLATE(FOR RING GEAR MOUNTING CASE)
T=1.97,MARK A0
T=1.99,MARK A1
T=2.01,MARK A2
T=2.03,MARK A3
T=2.05,MARK A4
T=2.07,MARK A5
T=2.09,MARK A6
T=2.11,MARK A7
T=2.13,MARK A8
T=2.15,MARK A9
T=2.17,MARK B0
T=2.19,MARK B1
T=2.21,MARK B2
T=2.23,MARK B3
T=2.25,MARK B4
T=2.27,MARK B5
T=2.29,MARK B6
T=2.31,MARK B7
T=2.33,MARK B8
T=2.35,MARK B9
T=2.37,MARK C0
T=2.97,MARK C1
T=2.41,MARK C2
T=2.43,MARK C3
T=2.45,MARK C4
T=2.47,MARK C5
T=2.49,MARK C6
T=2.51,MARK C7
T=2.53,MARK C8
T=2.55,MARK C9
T=2.57,MARK D0
T=2.59,MARK D1
T=2.61,MARK D2
T=2.63,MARK D3
T=2.65,MARK D4
T=2.67,MARK D5
T=2.69,MARK D6
T=2.71,MARK D7
T=2.73,MARK D8
T=2.75,MARK D9
41301XWASHER, TRANSFER RING GEAR MOUNTING CASE, NO.2
T=1.18,MARK A0
T=1.20,MARK A1
T=1.22,MARK A2
T=1.24,MARK A3
T=1.26,MARK A4
T=1.28,MARK A5
T=1.30,MARK A6
T=1.32,MARK A7
T=1.34,MARK A8
T=1.36,MARK A9
T=1.38,MARK B0
T=1.40,MARK B1
T=1.42,MARK B2
T=1.44,MARK B3
T=1.46,MARK B4
T=1.48,MARK B5
T=1.50,MARK B6
T=1.52,MARK B7
T=1.54,MARK B8
T=1.56,MARK B9
T=1.58,MARK C0
T=1.60,MARK C1
T=1.62,MARK C2
T=1.64,MARK C3
T=1.66,MARK C4
T=1.68,MARK C5
T=1.70,MARK C6
T=1.72,MARK C7
T=1.74,MARK C8
T=1.76,MARK C9
T=1.78,MARK D0
T=1.80,MARK D1
T=1.82,MARK D2
T=1.84,MARK D3
T=1.86,MARK D4
T=1.88,MARK D5
T=1.90,MARK D6
T=1.92,MARK D7
T=1.94,MARK D8
T=1.96,MARK D9
T=1.98,MARK E0
T=2.00,MARK E1
T=2.02,MARK E2
41319CASE, TRANSFER RING GEAR MOUNTING
41453ERING, O
9011408081
main90114-08081
9017924013
main90179-24013
9017924014
main90179-24014
9155281030
main91552-81030
16 parts on this diagram · 1 diagram in section
