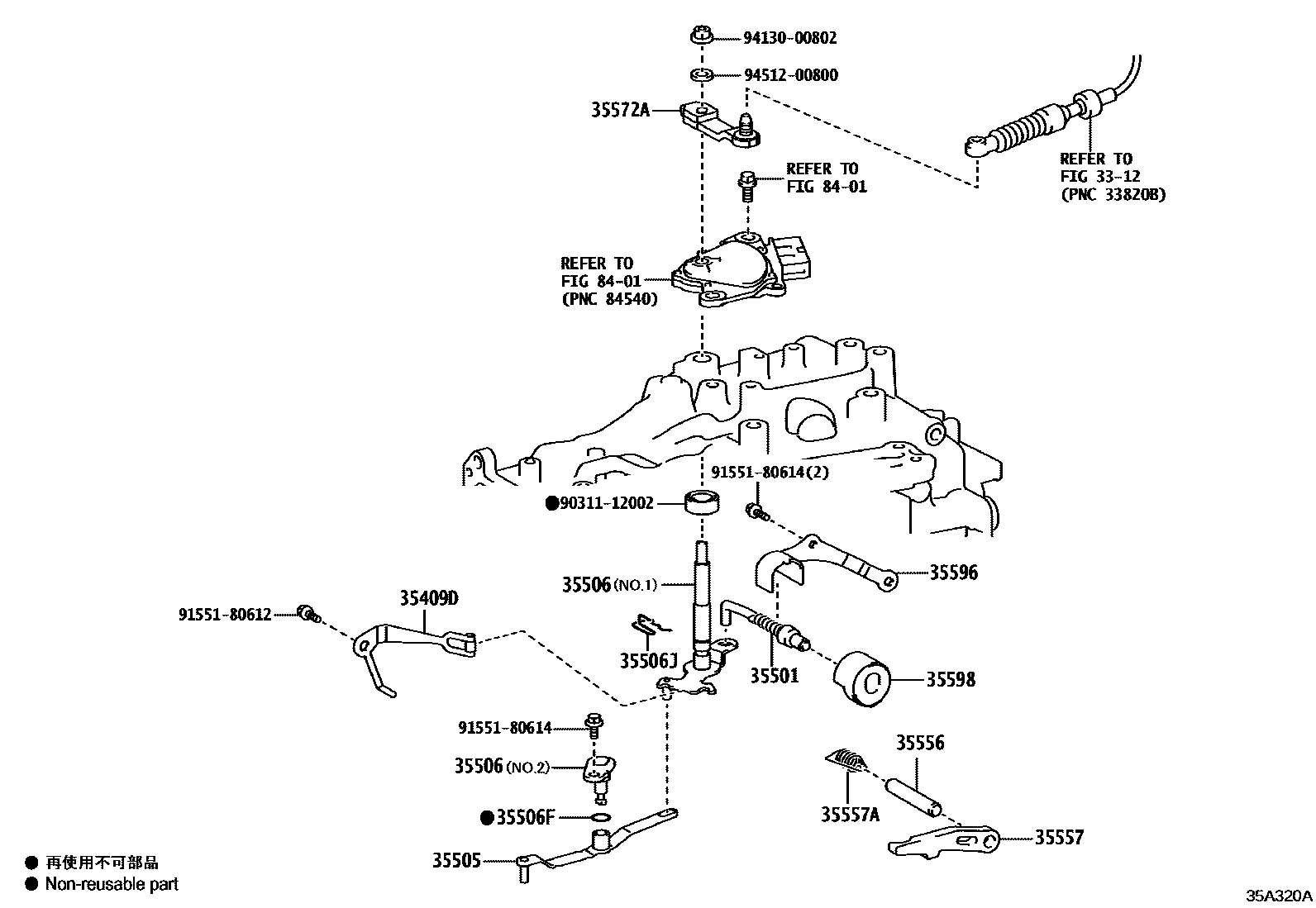

THROTTLE LINK & VALVE LEVER (ATM)

3312

35409DSPRING SUB-ASSY, MANUAL DETENT

main35409-48060iAXAA54..RUS¥400201811-202310

35501ROD SUB-ASSY, PARKING LOCK

main35501-33030iAXAA54..EUR¥1,240201811-202310

35505LEVER SUB-ASSY, MANUAL VALVE

main35502-33010iAXAA54..EUR¥230201811-202310

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35503-48010iAXAA52..RHD;AXAA52..X..GEN;AXAA54..G..ARL;AXAA54..RHD..V..GEN¥300201811-202310

NO.2

main35506-33040iAXAA52..GCC;AXAA54..LHD..V;AXAA54..(M,V,X)..ARL;AXAA52..LHD..(G,M)..GEN;AXAA54..(G,M,X)..(GCC,GEN,SA)201811-202205

NO.1

main35506-33041iAXAA5#..JPP202205-202310

NO.1

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90301-09173iAXAA54..EUR¥140201811-202310

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09004iAXAA52..RHD;AXAA52..X..GEN;AXAA54..G..ARL;AXAA54..RHD..V..GEN¥60201811-202310

35556SHAFT, PARKING LOCK PAWL

main35556-48040iAXAA54..EUR201811-202310

35557PAWL, PARKING LOCK

main35557-33040iAXAA54..EUR¥2,810201811-202310

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-29030iAXAA54..EUR¥180201811-202310

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-48050iAXAA54..EUR¥810201811-202111

sub35572-48051¥740

main35572-48051iAXAA54..RUS¥740202111-202310

35596PLATE, PAWL STOPPER

main35596-33020iAXAA54..EUR201811-202310

35598SLEEVE, PARKING LOCK

main35598-48040iAXAA54..EUR¥770201811-202310

8401

9031112002

main90311-12002¥270

9155180612

main91551-80612¥60

9155180614

main91551-80614¥60

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

19 parts on this diagram · 1 diagram in section
