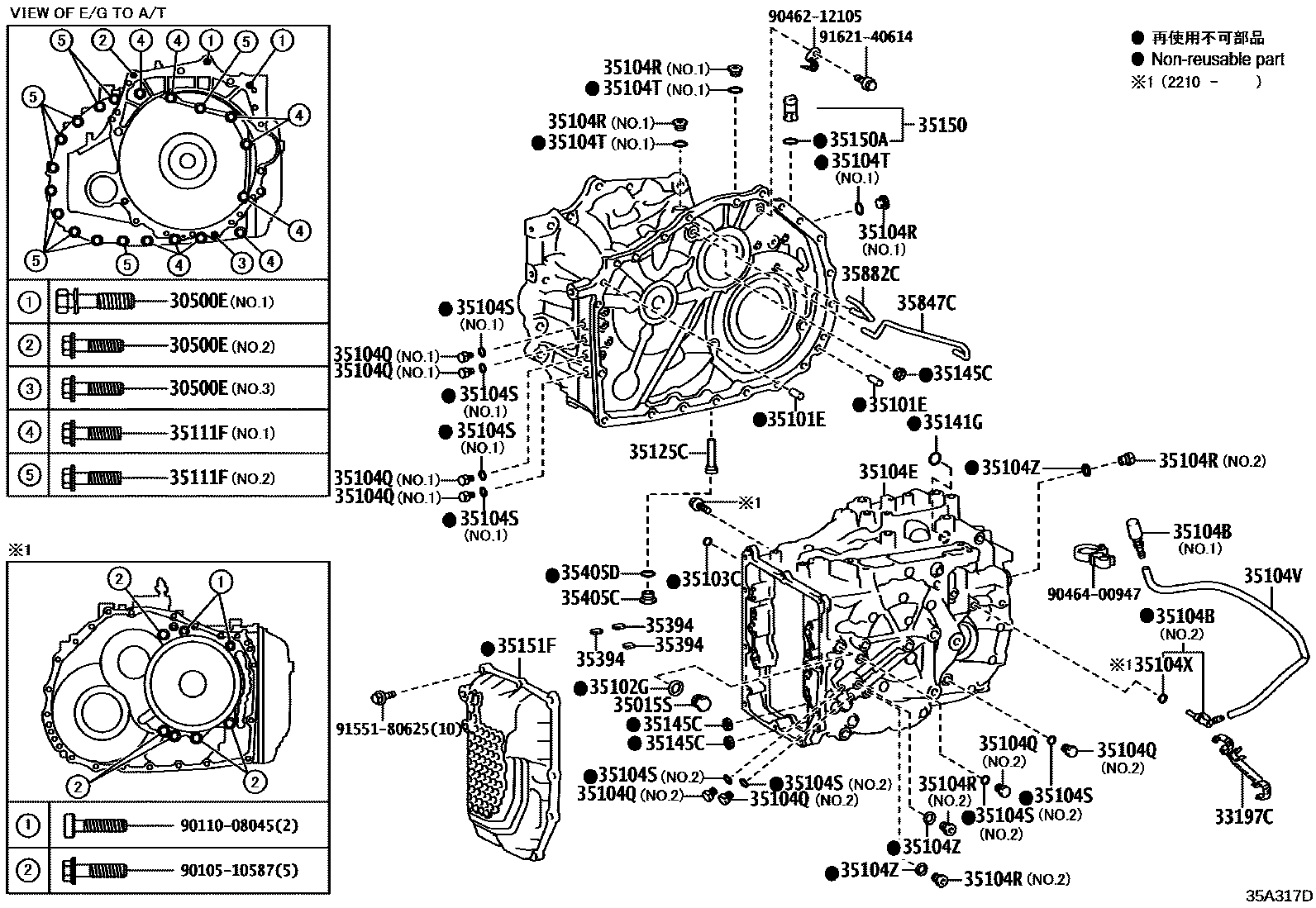

TRANSMISSION CASE & OIL PAN (ATM)

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-10591iAXAA5#..ARL,GCC,GEN,SA201811-202310

*10-1.25PX45-36,NO.2

main91552-81250iAXAA54..RUS201811-202310

*12-1.25PX50-30,NO.1

main91553-80830iAXAA54..EUR201811-202310

*8-1.25PX35-22,NO.3

33197CCLAMP, TRANSMISSION BREATHER

main33197-33020iAXAA54..RUS201811-202310

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18064iAXAA54..EUR201811-202310

35101EPIN, STRAIGHT (FOR AUTOMATIC TRANSMISSION CASE)

main90250-10021iAXAA54..EUR201811-202310

35102GGASKET (FOR TRANSAXLE REAR COVER )

main90430-18008iAXAA54..EUR201811-202310

35103CRING, O

main90301-06021iAXAA54..RUS201811-202310

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03216iAXAA54..RUS201811-202310

NO.1

main90930-03230iAXAA54..EUR201811-202310

NO.2

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-33140iAXAA54..EUR201811-202310

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iAXAA54..RUS201811-202310

NO.1

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-14015iAXAA54..EUR201811-202310

NO.1

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196iAXAA54..EUR201811-202310

NO.1

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

main90430-14008iAXAA54..EUR201811-202310

NO.1

35104VHOSE (FOR BREATHER PLUG)

main35121-33070iAXAA52..RHD;AXAA52..X..GEN;AXAA54..G..ARL;AXAA54..RHD..V..GEN201811-202310

35104XRING, O (FOR BREATHER PLUG)

main90301-08015iAXAA5#..JPP202210-202310

35104ZGASKET (FOR TRANSAXLE CASE)

main90430-14008iAXAA52..GCC;AXAA54..LHD..V;AXAA54..(M,V,X)..ARL;AXAA52..LHD..(G,M)..GEN;AXAA54..(G,M,X)..(GCC,GEN,SA)201811-202310

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main91551-00835iAXAA54..EUR201811-202310

*8-1.25PX35-22,NO.2

main91551-00840iAXAA5#..JPP201811-202310

*8-1.25PX40-22,NO.1

35125CTUBE, TRANSMISSION OIL FILLER, NO.1

main35125-33110iAXAA5#..JPP201811-202310

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-10018iAXAA54..EUR201811-202310

35145CGASKET, TRANSAXLE CASE

main35145-33010iAXAA54..EUR201811-202102

main35145-33020iAXAA52..RHD;AXAA52..X..GEN;AXAA54..G..ARL;AXAA54..RHD..V..GEN202103-202310

main35145-33020iAXAA52202310

LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN

35150PLUG ASSY, TRANSMISSION CASE

main35150-44010iAXAA54..RUS201811-202310

35150ARING, O (FOR AUTOMATIC TRANSMISSION CASE PLUG)

main90301-09173iAXAA54..EUR201811-202310

35151FCOVER, TRANSMISSION CASE, SIDE

main35151-33161iAXAA54..EUR201811-202310

MARK 35151-33161

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-48010iAXAA54..EUR201811-202310

35405CPLUG SUB-ASSY, W/HEAD STRAIGHT SCREW

main90341-18023iAXAA54..EUR201811-202310

35405DRING, O (FOR STRAIGHT SCREW PLUG)

main90430-18008iAXAA54..EUR201811-202310

35847CTUBE, TRANSMISSION LUBE APPLY

main35847-48030iAXAA54..EUR201811-202310

35882CTUBE, DIFFERENTIAL GEAR LUBE APPLY

main35882-48030iAXAA54..EUR201811-202310

9010510587

main90105-10587

9011008045

main90110-08045

9046212105

main90462-12105

9046400947

main90464-00947

9155180625

main91551-80625

9162140614

main91621-40614

33 parts on this diagram · 1 diagram in section
