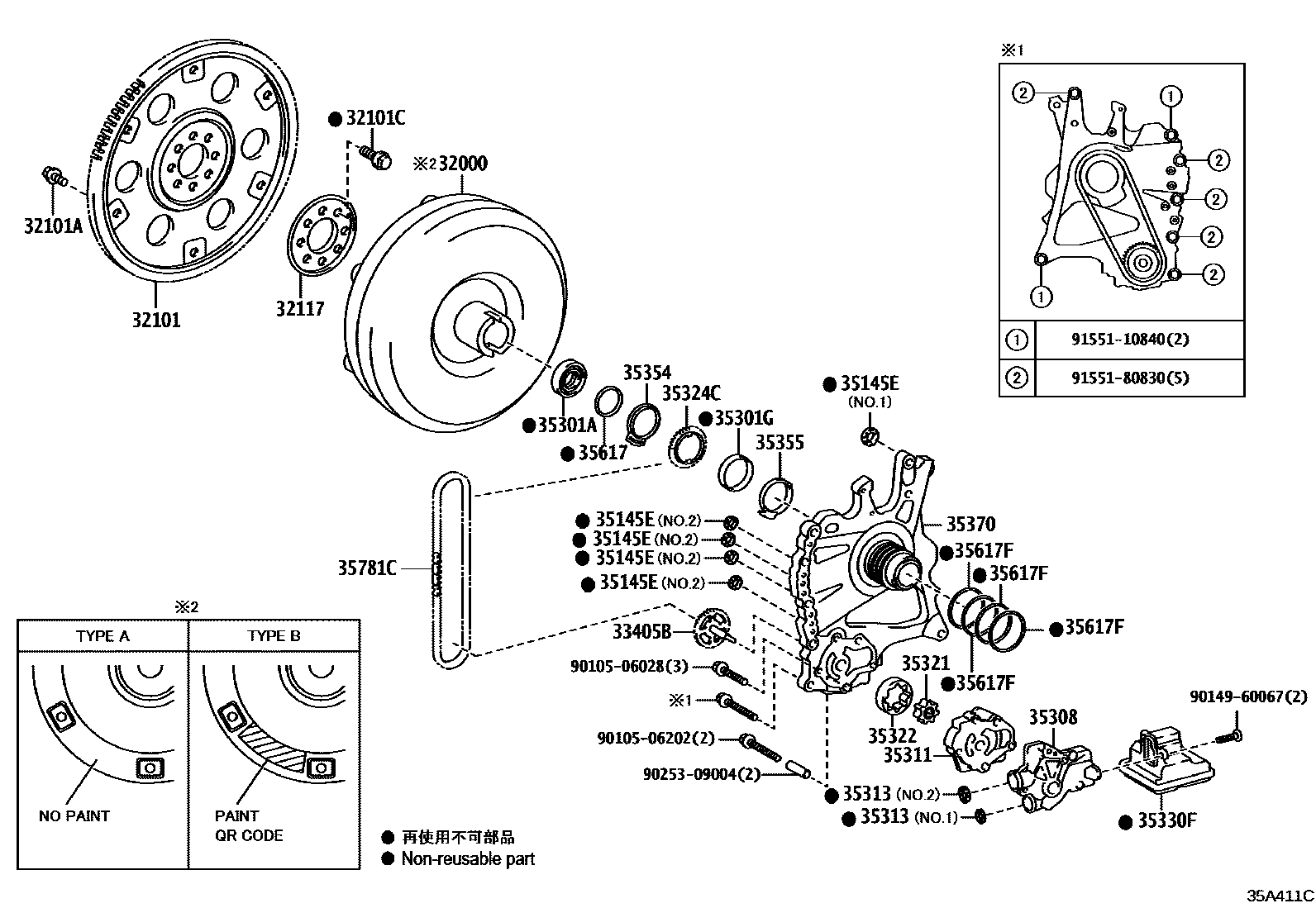

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1UB80E,UB80F W/O(IDLE STOP&ECO0002 1UB80E,UB80F W(IDLE STOP & ECO

32000CONVERTER ASSY, TORQUE

main32000-06060iAXAA5#..ARL,GCC,GEN,SA201903-202310

TYPE B:REFER ILLUST.

main32000-33180iAXAA54..RUS¥86,400201811-202310

TYPE A:REFER ILLUST.

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-33020iAXAA54..EUR¥13,400201811-202310

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iAXAA52..RHD;AXAA52..X..GEN;AXAA54..G..ARL;AXAA54..RHD..V..GEN¥80201811-202310

*9-1.25PX12.4-7.3,BLACK

main90119-09025iAXAA54..RUS¥80201811-202310

*9-1.25PX12.4-8.4,SILVER WHITE

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12404iAXAA54..EUR¥100201811-202310

*12-1.25PX20.3-14.3

32117SPACER, DRIVE PLATE, REAR

main32117-33010iAXAA52..GCC;AXAA54..LHD..V;AXAA54..(M,V,X)..ARL;AXAA52..LHD..(G,M)..GEN;AXAA54..(G,M,X)..(GCC,GEN,SA)¥920201811-202310

33405BSHAFT SUB-ASSY, OIL PUMP DRIVE

main33405-48010iAXAA54..RUS¥1,110201811-202310

35145EGASKET, TRANSAXLE CASE

main35145-33010iAXAA54..(M,V)..ARL¥360201811-202102

NO.1

main35145-33010iAXAA5#¥360202008-202102

LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN,NO.1

main35145-33010iAXAA54..EUR¥360201811-202004

LOW FUEL CONSUMPTION PACKAGE-WITHOUT,NO.1

main35145-33020iAXAA54..ARL¥340202103-202310

NO.1

main35145-33020iAXAA52..GCC;AXAA54..LHD..V;AXAA54..(M,V,X)..ARL;AXAA52..LHD..(G,M)..GEN;AXAA54..(G,M,X)..(GCC,GEN,SA)¥340202103-202310

LOW FUEL CONSUMPTION PACKAGE-IDLE STOP & ECO-RUN,NO.1

main35145-33040iAXAA52..RHD;AXAA52..X..GEN;AXAA54..G..ARL;AXAA54..RHD..V..GEN¥340202103-202310

NO.2

main35145-48030iAXAA54..EUR¥400201811-202102

NO.2

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-51013iAXAA5#..JPP¥470201811-202310

35301GBEARING,NEEDLE ROLLER

main90364-51004iAXAA5#..JPP¥890201811-202310

35308COVER SUB-ASSY, FRONT OIL PUMP

main35308-48110iAXAA52..GCC;AXAA54..LHD..V;AXAA54..(M,V,X)..ARL;AXAA52..LHD..(G,M)..GEN;AXAA54..(G,M,X)..(GCC,GEN,SA)201811-202310

35311BODY, FRONT OIL PUMP

main35311-48040iAXAA54..EUR¥5,900201811-202310

35313GASKET, FRONT OIL PUMP COVER

main35313-48020iAXAA54..EUR¥40201811-202310

NO.1

main35313-48030iAXAA54..RUS¥60201811-202310

NO.2

35321GEAR, FRONT OIL PUMP DRIVE

main35321-48110iAXAA54..EUR¥2,490201811-202310

T=16.66

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-48110iAXAA54..EUR¥2,490201811-202310

T=16.66

35324CSPROCKET, TRANSMISSION OIL PUMP DRIVE

main35324-48040iAXAA54..EUR¥970201811-202310

35330FSTRAINER ASSY, OIL

main35330-48040iAXAA54..RUS¥3,580201811-202310

35354WASHER, OIL PUMP SPROCKET THRUST, FRONT

main35354-48010iAXAA54..EUR¥400201811-202310

35355WASHER, OIL PUMP SPROCKET THRUST, REAR

main35355-48010iAXAA54..EUR¥750201811-202012

main35355-48011iAXAA52..RHD;AXAA52..X..GEN;AXAA54..G..ARL;AXAA54..RHD..V..GEN¥550202012-202310

35370SHAFT ASSY, STATOR

main35370-33070iAXAA54..EUR¥14,900201811-202310

35617RING, CLUTCH DRUM OIL SEAL

main35617-48050iAXAA54..EUR¥200201811-202310

35617FRING, CLUTCH DRUM OIL SEAL

main35617-33020iAXAA54..EUR¥200201811-202310

35781CCHAIN, TRANSMISSION DRIVE

main35781-48020iAXAA54..EUR¥4,600201811-202310

9010506028

main90105-06028¥80

9010506202

main90105-06202¥90

9014960067

main90149-60067¥80

9025309004

main90253-09004¥90

9155110840

main91551-10840¥80

9155180830

main91551-80830¥80

28 parts on this diagram · 2 diagrams in section
