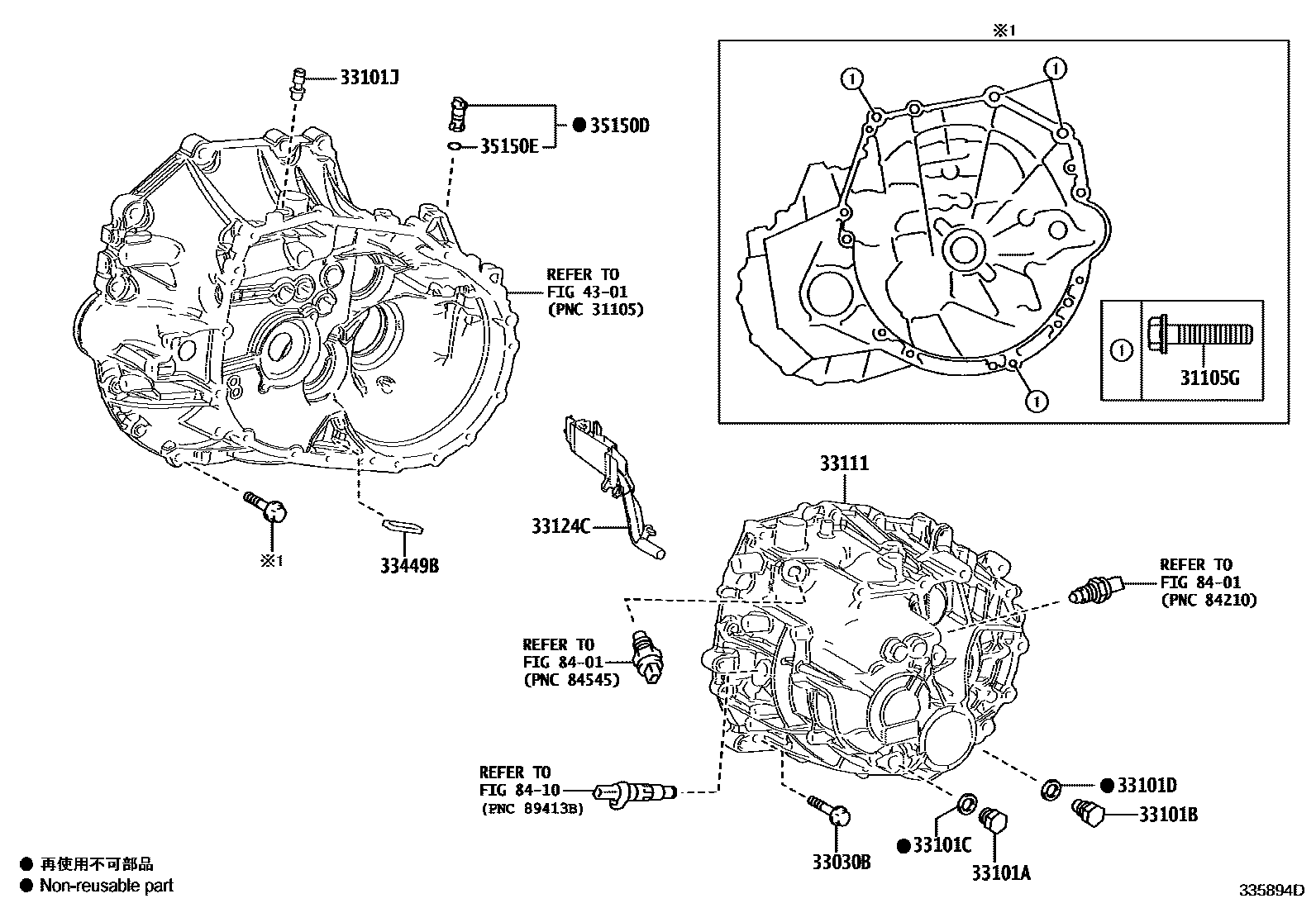

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-10591iMXAA5#..6F..GEN201811-202310

*10-1.25PX45-36

main90105-W0092iMXAA5#..6F..RUS202112-202210

*8-1.25PX35-22,(L)

main91552-81250iMXAA5#..6F..RUS201811-202310

*12-1.25PX50-30

main91553-80830iMXAA52..6F..(EUR,SA);MXAA52..LHD..6F..GEN;MXAA54..JPP..LHD..6F202112-202210

*8-1.25PX35-22,(J)

main91553-80830iMXAA5#..6F..RUS201811-202310

*8-1.25PX35-22

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main91551-10840iMXAA5#..6F..G..(GEN,SA)201811-202310

*8-1.25PX40-22

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18033iMXAA5#..6F..G..(GEN,SA)201811-202310

33101BPLUG(FOR MANUAL TRANSMISSION DRAIN)

main90341-18085iMXAA5#..6F..G..(GEN,SA)201811-202310

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iMXAA5#..6F..(EUR,SA)201811-202310

33101DGASKET(FOR MANUAL TRANSMISSION DRAIN PLUG)

main90430-18008iMXAA5#..6F..G..(GEN,SA)201811-202310

33101JPLUG, BREATHER

main90930-03085iMXAA5#..6F..G..(GEN,SA)201811-202310

33111CASE, MANUAL TRANSMISSION

main33111-12350iMXAA5#..6F..G..(GEN,SA)201811-202310

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-12090iMXAA5#..6F..G..(GEN,SA)201811-202310

33449BMAGNET, TRANSMISSION

main33449-60010iMXAA5#..6F..G..(GEN,SA)201811-202310

35150DPLUG ASSY, TRANSMISSION CASE

main35150-44010iMXAA5#..6F..G..(GEN,SA)201811-202310

35150ERING, O (FOR TRANSMISSION CASE PLUG)

main90301-09173iMXAA5#..6F..G..(GEN,SA)201811-202310

4301

8401

8410

15 parts on this diagram · 1 diagram in section
