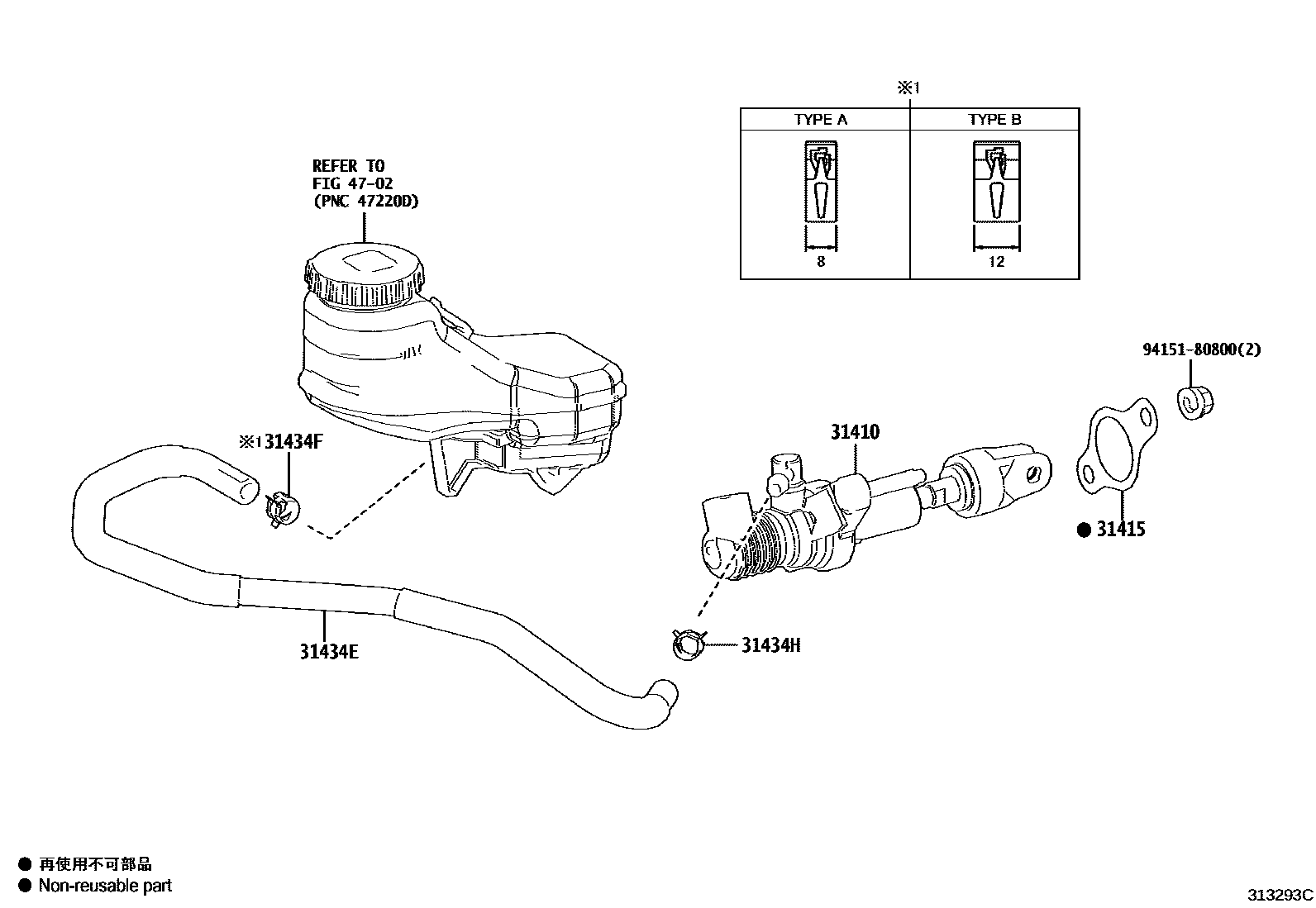

CLUTCH MASTER CYLINDER

0001 1 0002 1

31410CYLINDER ASSY, CLUTCH MASTER

main31420-12090iMXAA5#..6F..RUS201811-202310

31415GASKET, CLUTCH MASTER CYLINDER

main31415-60020iMXAA5#..6F..RUS201811-202310

31434EHOSE, CLUTCH RESERVOIR, NO.1

main31434-0R010iMXAA5#..6F..RUS201910-202301

(L)

main31434-42070iMXAA5#..6F..EUR201811-202310

(J)

main31434-42080iMXAA5#..RHD..6F..(M,X)201811-202210

31434FCLIP(FOR CLUTCH RESERVOIR HOSE NO.1)

main96137-41501iMXAA5#..6F..GEN202008-202310

main96137-41501iMXAA5#..6F..G..(GEN,SA)201907-202009

TYPE B:REFER ILLUST.

main96138-41501iMXAA5#..6F201811-201907

TYPE A:REFER ILLUST.

31434HCLIP(FOR CLUTCH RESERVOIR HOSE NO.2)

main96138-41501iMXAA5#..6F..G..(GEN,SA)201811-202310

4702

9415180800

main94151-80800

7 parts on this diagram · 2 diagrams in section
