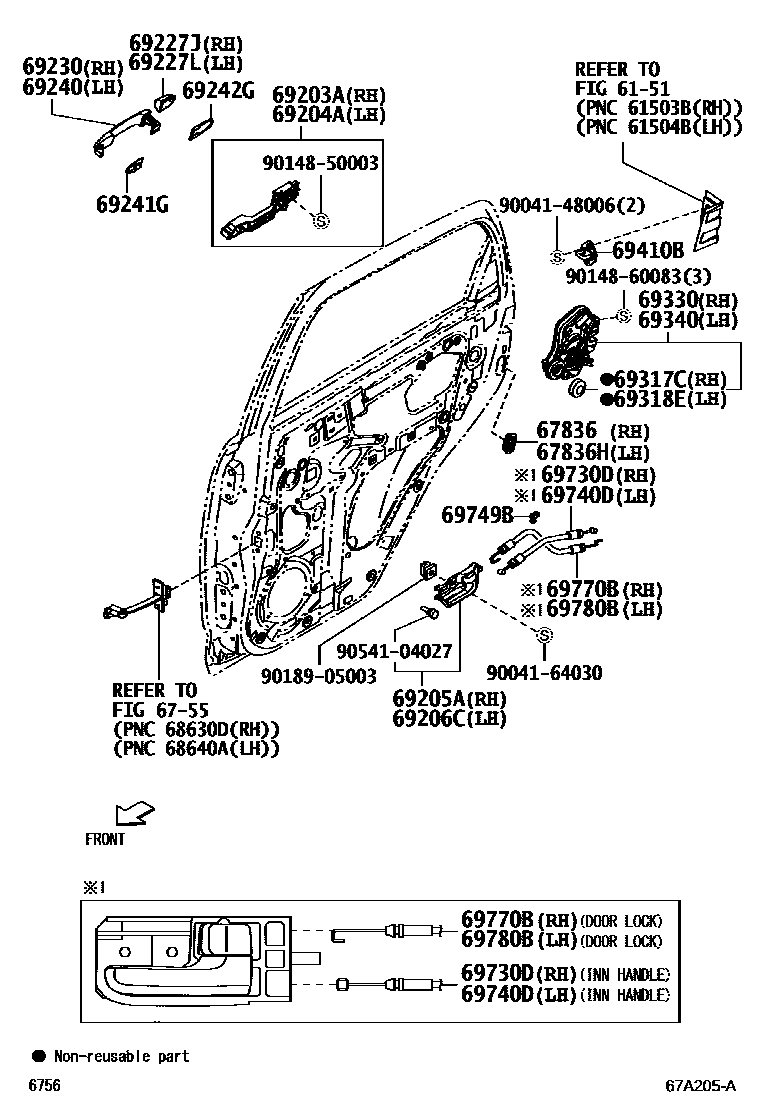

REAR DOOR LOCK & HANDLE
6151
6755
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
sub69205-B1021
HI-G PACKAGE,DK.GRAY,TRIM1#
MID PACKAGE,DK.GRAY,TRIM1#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
sub69206-B1021
HI-G PACKAGE,DK.GRAY,TRIM1#
MID PACKAGE,DK.GRAY,TRIM1#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
*CR,DESTINATION PACKAGE(ALL)-CHILE&HI-G PACKAGE&WIRELESS DOOR LOCK-KEY LESS(EC ONEPEACE)
BLACK
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
*CR,DESTINATION PACKAGE(ALL)-CHILE&HI-G PACKAGE&WIRELESS DOOR LOCK-KEY LESS(EC ONEPEACE)
BLACK
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
PLATING,DESTINATION PACKAGE(ALL)-CHILE&HI-G PACKAGE&WIRELESS DOOR LOCK-KEY LESS(ECONEPEACE)
NO PAINT REQ.
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
PLATING,DESTINATION PACKAGE(ALL)-CHILE&HI-G PACKAGE&WIRELESS DOOR LOCK-KEY LESS(ECONEPEACE)
NO PAINT REQ.
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69317CSEAL, DOOR LOCK WIRING HARNESS, RH
69318ESEAL, DOOR LOCK WIRING HARNESS, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
INN HANDLE SIDE
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
INN HANDLE SIDE
69749BCLAMP, REAR DOOR LOCK LINK
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
DOOR LOCK
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
DOOR LOCK
9004148006
main90041-48006
9004164030
main90041-64030
9014850003
main90148-50003
9014860083
main90148-60083
9018905003
main90189-05003
9054104027
main90541-04027
30 parts on this diagram · 1 diagram in section
