SIDE MEMBER

0001 1 0003 1

51511BGUSSET, UPPER CONTROL ARM SUPPORT, RH

main51511-B4010iJ200,210¥1,380200811

51511CGUSSET, UPPER CONTROL ARM SUPPORT, LH

main51511-B4010iJ200,210¥1,380200811

58741CPROTECTOR, QUARTER PANEL, RH

main58741-B4020iJ200,210201605

58742CPROTECTOR, QUARTER PANEL, LH

main58742-B4020iJ200,210201605

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-B4020iJ200,210¥7,700200811

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-B4020iJ200,210¥7,700200811

61031EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER RH

main61031-B4010iJ200¥11,000200811-200812

sub61031-B4011¥15,300

main61031-B4011iJ200,210¥15,300200812

61032EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER LH

main61032-B4020iJ200,210¥13,100200811

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-B4020iJ200¥9,800200811-200911

sub61037-B4021¥13,100

main61037-B4021iJ200,210¥13,100201605

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

main61038-B4020iJ200¥9,800200811-200911

sub61038-B4021¥13,100

main61038-B4021iJ200,210¥13,100201605

61071CREINFORCEMENT SUB-ASSY, SEAT BELT ANCER, UPPER RH

main61071-B4010iJ200,210¥4,900200811

61072CREINFORCEMENT SUB-ASSY, SEAT BELT ANCER, UPPER LH

main61072-B4010iJ200,210¥4,900200811

61106BPILLAR SUB-ASSY, FRONT, RH

main61106-B4010iJ200,210¥7,700200811

61107DPILLAR SUB-ASSY, FRONT, LH

main61107-B4010iJ200,210¥7,700200811

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-B4010iJ200,210¥13,100200811

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-B4010iJ200,210¥13,100200811

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-B4070iJ200,210¥21,600200811

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-B4070iJ200,210¥21,600200811

61231RAIL, ROOF SIDE, INNER RH

main61231-B4010iJ200,210¥4,900200811

61232ARAIL, ROOF SIDE, INNER LH

main61232-B4010iJ200,210¥4,900200811

61247BREINFORCEMENT, ROOF SIDE RAIL, INNER RH

main61247-B4010iJ200,210¥7,700200811

61248BREINFORCEMENT, ROOF SIDE RAIL, INNER LH

main61248-B4010iJ200,210¥7,700200811

61311BPILLAR, CENTER BODY, OUTER RH

main61311-B4030iJ200,210¥20,800200811

61312BPILLAR, CENTER BODY, OUTER LH

main61312-B4030iJ200,210¥20,800200811

61341CPILLAR, CENTER BODY, INNER UPPER RH

main61341-B4010iJ200,210¥4,900200811

61342CPILLAR, CENTER BODY, INNER UPPER LH

main61342-B4010iJ200,210¥4,900200811

61343APILLAR, CENTER BODY, INNER RH

main61343-B4010iJ200,210¥4,900200811

61344APILLAR, CENTER BODY, INNER LH

main61344-B4010iJ200,210¥4,900200811

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-B4010iJ200,210¥17,300200903

main61403-B4020iJ200¥11,000200811-200902

sub61403-B4010¥17,300

61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH

main61404-B4010iJ200,210¥17,300200811

61411PANEL, ROCKER, OUTER RH

main61411-B4030iJ200,210¥28,700200811

61412PANEL, ROCKER, OUTER LH

main61412-B4030iJ200,210¥28,700200811

61418AREINFORCEMENT, ROCKER PANEL, RH

main61418-B4010iJ200,210¥2,220200811

61419AREINFORCEMENT, ROCKER PANEL, LH

main61419-B4010iJ200,210¥2,220200811

61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

main61503-B4010iJ200,210¥1,800200811

61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH

main61504-B4010iJ200,210¥1,800200811

61611PANEL, QUARTER, RH

main61611-B4070iJ200¥36,700200811-200911

main61611-B4071iJ200,210¥30,500201605

TYPE B

61612PANEL, QUARTER, LH

main61612-B4070iJ200¥36,700200811-200911

main61612-B4071iJ200,210¥30,500201605

TYPE B

61619DREINFORCEMENT, QUARTER PANEL, RH

main61619-B4010iJ200,210¥350200811

61627EEXTENSION, QUARTER PANEL, REAR LOWER RH

main61627-B4010iJ200,210¥7,700200811

61628DEXTENSION, QUARTER PANEL, REAR LOWER LH

main61628-B4010iJ200,210¥7,700200811

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main65608-B4020iJ200,210¥11,100200811

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main65609-B4020iJ200,210¥11,100200811

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61633-B4010iJ200,210¥9,100200811

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61634-B4010iJ200,210¥7,700200811

61661AEXTENSION, QUARTER PANEL TO UPPER BACK, RH

main61661-B4010iJ200,210¥4,900200811

61662BEXTENSION, QUARTER PANEL TO UPPER BACK, LH

main61662-B4010iJ200,210¥4,900200811

61667DSEAL, QUARTER PANEL

main61667-87213iJ200,210¥260200811

61701BPANEL SUB-ASSY, ROOF SIDE, INNER UPPER RH

main61701-B4010iJ200,210¥6,300200811

61702BPANEL SUB-ASSY, ROOF SIDE, INNER UPPER LH

main61702-B4020iJ200,210¥6,300200811

61713BREINFORCE, ROOF SIDE, OUTER RH

main61713-B4010iJ200,210¥310200811

61725BOX, FUEL INLET

main61725-B4010iJ200,210¥3,510200811

61731BPANEL, ROOF SIDE, INNER RH

main61731-B4010iJ200,210¥7,700200811

61732BPANEL, ROOF SIDE, INNER LH

main61732-B4010iJ200,210¥7,700200811

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-B4010iJ200,210¥7,700200811

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-B4010iJ200,210¥7,700200811

61768EREINFORCE, SEAT BELT ANCHOR, NO.2 LOWER RH

main61768-B4010iJ200,210¥660200811

61769AREINFORCEMENT, SEAT BELT ANCHOR, NO.2 LH

main61769-B4010iJ200,210¥660200811

61881SEAL, ROOF SIDE RAIL, FRONT RH

main61881-B2010iJ200,210¥440200811

63185FBRACKET, ROOF RACK, FRONT

main63185-B4010iJ200,210¥1,330200811

65637BLINER, REAR WHEEL HOUSE, RH

main65637-B4020iJ200,210¥2,220200811

65638ALINER, REAR WHEEL HOUSE, LH

main65638-B4020iJ200,210¥2,220200811

6753

6756

6761

9004468320

main90044-68320¥170

9011906939

main90119-06939¥60

904670707122

main90467-0707122

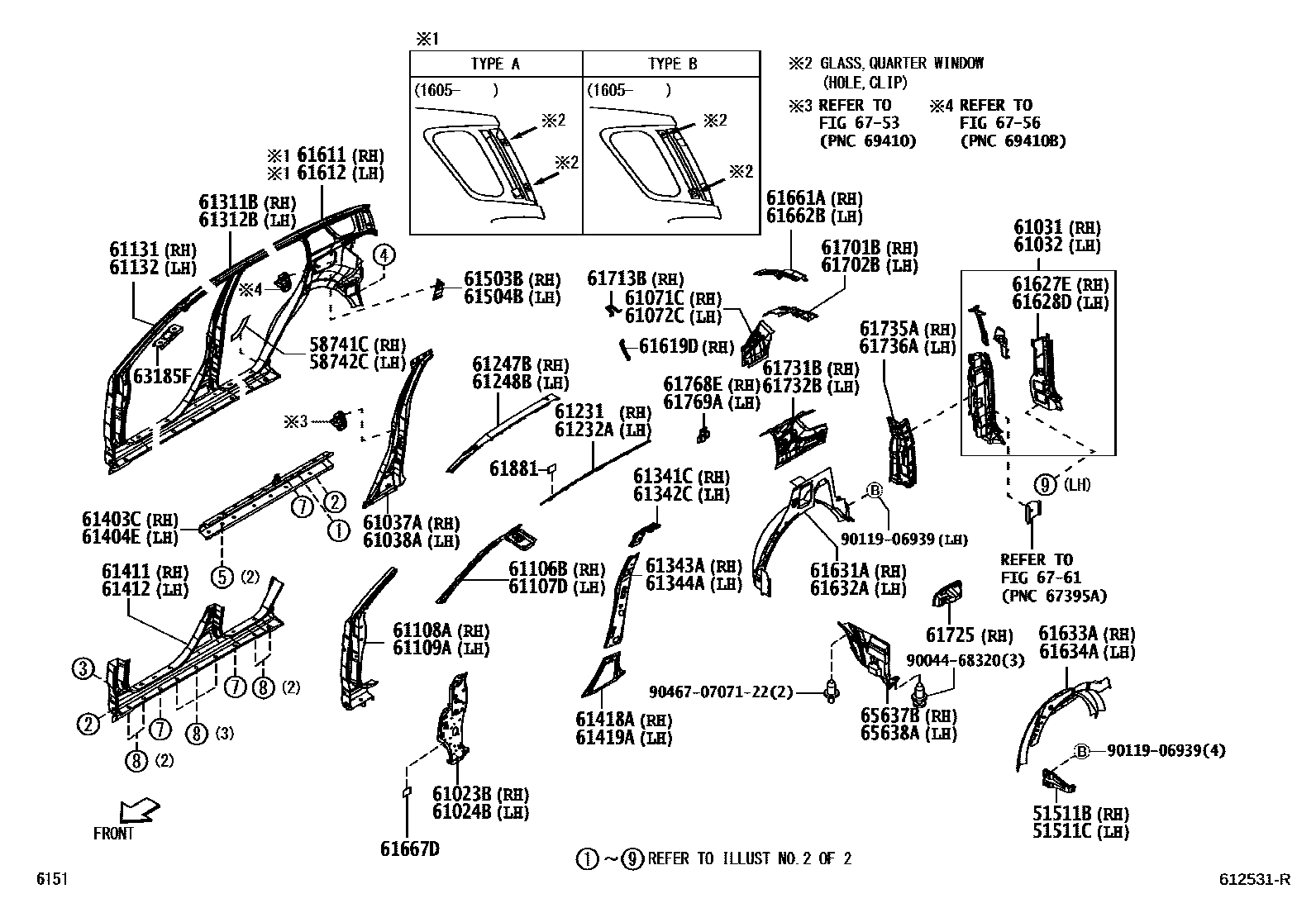

68 parts on this diagram · 2 diagrams in section
