CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-B2030-B1iJ200200811-200911

DK.GRAY,TRIM1#,SEAT HEATER SWITCH,DEICER SWITCH

sub55539-B2030

main55539-B2030-B2iJ200,210201605-201610

DK.GRAY,TRIM1#,MINI-JACK,SEAT HEATER SWITCH,DEICER SWITCH

sub55539-B2030

main55539-B2030-C1iJ200,210201610

BLACK,TRIM1#,MINI-JACK,SEAT HEATER SWITCH,DEICER SWITCH

sub55539-B2030

58811ABOX, CONSOLE, FRONT

main58811-B4021-B0iJ200,210200811

DK.GRAY,TRIM1#

58815ACARPET, CONSOLE BOX

main58815-B1020iJ200,210200811

58839ACOVER, CONSOLE BOX HOLE

main58839-B4010-B0iJ200,210200811

DK.GRAY,TRIM1#

58841ACOVER, SHIFTING HOLE

main58841-B4010-B0iJ200,210..5F200811

DK.GRAY,TRIM1#

58842AFRAME, SHIFTING HOLE

main58842-B4010iJ200..5F200811-200911

58843BEZEL, SHIFTING HOLE

main58843-B4010-B0iJ200,210..E4AT200811

DK.GRAY,TRIM1#

58910CBOX ASSY, CONSOLE, REAR

main58911-B4020-B0iJ200,210200811

DK.GRAY,TRIM1#

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-B4010iJ200,210200811

7456

8121

9004468165B1

main90044-68165B1

9010906292

main90109-06292

9155180614

main91551-80614

9356715014

main93567-15014

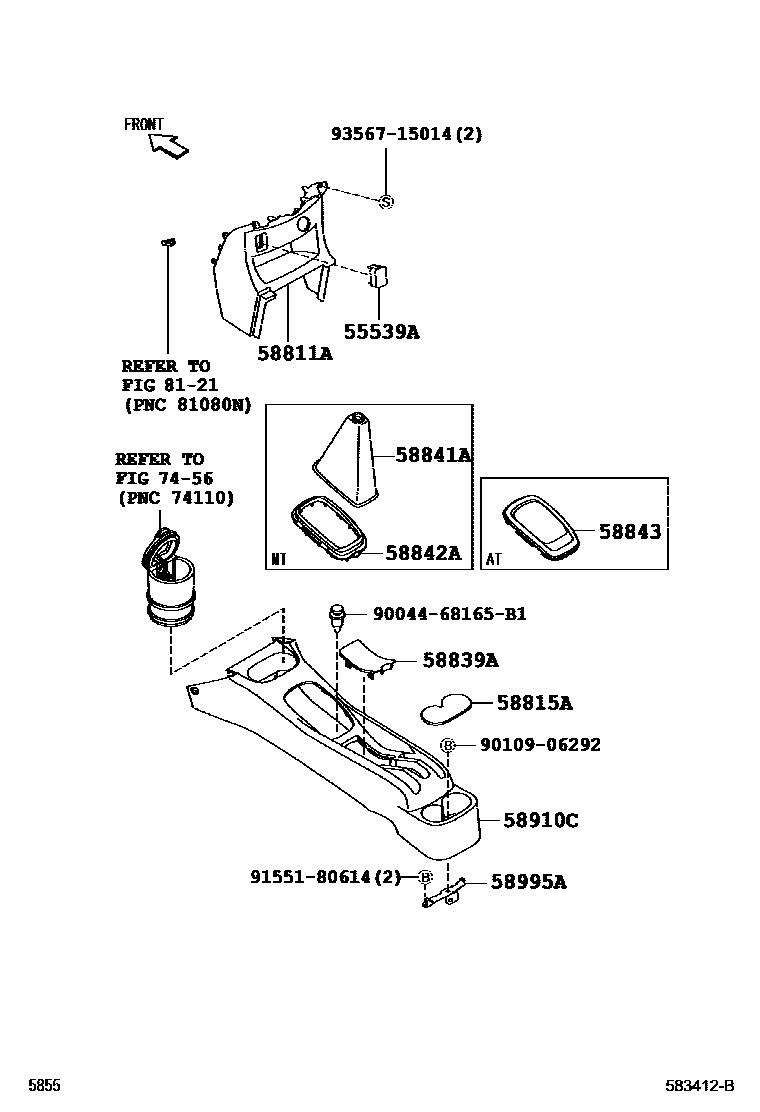

15 parts on this diagram · 1 diagram in section
