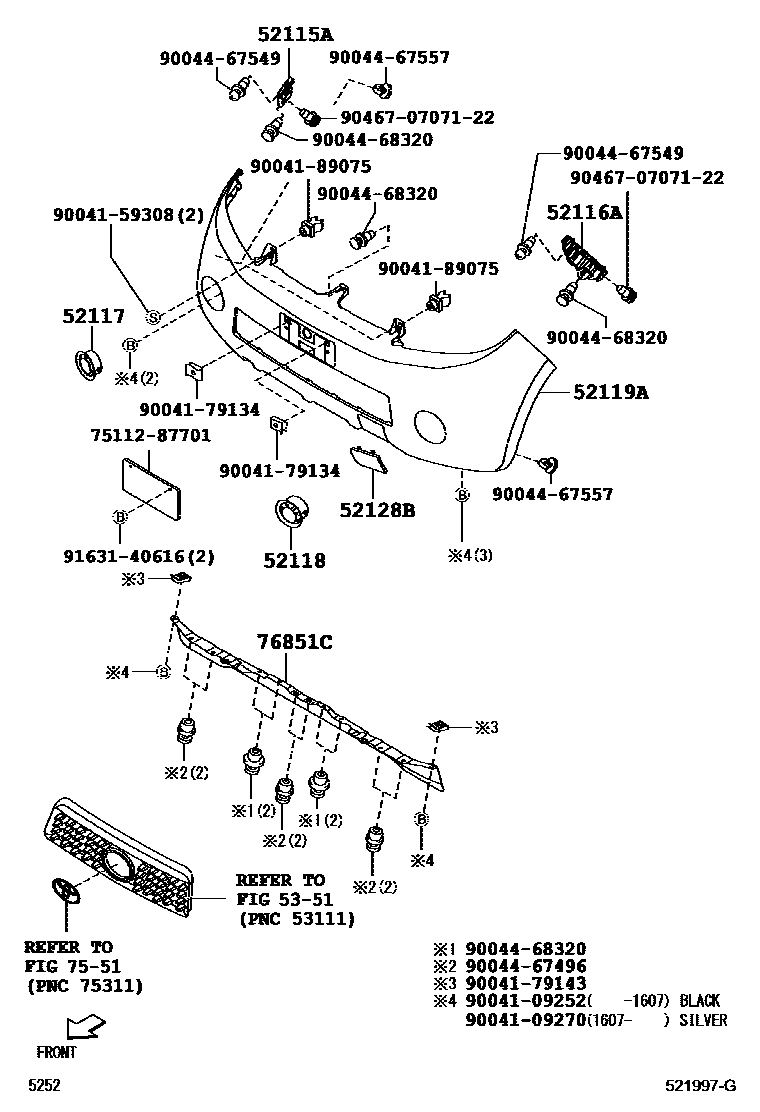

FRONT BUMPER & BUMPER STAY

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-B4011iJ200,210200811

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-B4011iJ200,210200811

52117MOULDING, BUMPER SIDE, RH

main52712-B2060iJ200,210201605

52118MOULDING, BUMPER SIDE, LH

main52712-B2060iJ200,210201605

52119ACOVER, FRONT BUMPER

main52119-B4150iJ200200811-200911

sub52119-B4151

main52119-B4151iJ200,210201605

main52119-B4171-A1iJ200,210201605

WHITE PEARL MC.CS,W24

sub52119-B4171

sub52119-B4151

main52119-B4171-B0iJ200,210201605

SILVER ME.,S28

sub52119-B4171

sub52119-B4151

main52119-B4171-B1iJ200,210201605

GRAY ME.,S33

sub52119-B4171

sub52119-B4151

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-B4060iJ200,210200811

main52128-B4070-A1iJ200,210201605

WHITE PEARL MC.CS,W24

sub52128-B4070

main52128-B4070-B0iJ200,210201605

SILVER ME.,S28

sub52128-B4070

main52128-B4070-B1iJ200,210201605

GRAY ME.,S33

sub52128-B4070

5351

7551

76851CFRONT SPOILER

main76851-B4020iJ200200811-200911

7511287701BASE, LICENSE PLATE BRACKET

main75112-87701

9004109252

main90041-09252

9004109270

main90041-09270

9004159308

main90041-59308

9004179134

main90041-79134

9004179143

main90041-79143

9004189075

main90041-89075

9004467496

main90044-67496

9004467549

main90044-67549

9004467557

main90044-67557

9004468320

main90044-68320

904670707122

main90467-0707122

9163140616

main91631-40616

22 parts on this diagram · 1 diagram in section
