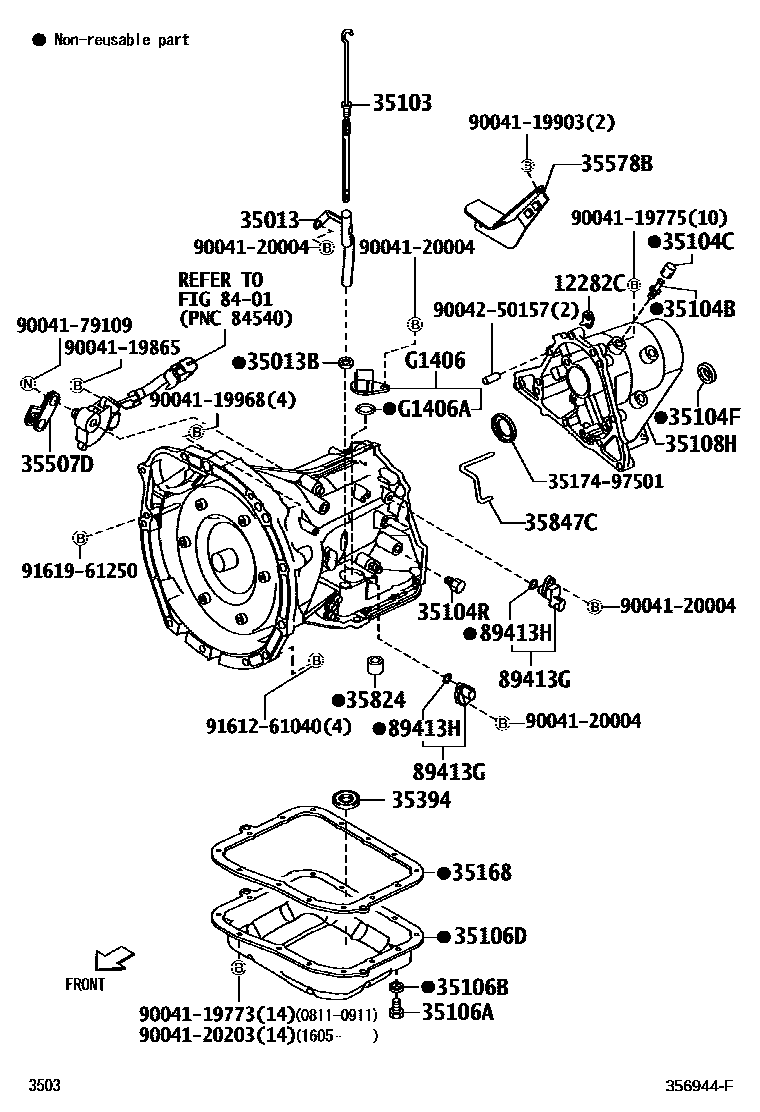

TRANSMISSION CASE & OIL PAN (ATM)
12282CHANGER, ENGINE, NO.2
35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013BRING, O (FOR TRANSMISSION OIL FILLER TUBE)
35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35104BPLUG, BREATHER, NO.1 (ATM)
35104CPLUG, BREATHER, NO.2 (ATM)
35104FSEAL, OIL (FOR TRANSAXLE CASE)
35104RPLUG, NO.2 (FOR TRANSAXLE CASE)
35106APLUG SUB-ASSY, DRAIN (ATM)
35106BGASKET, DRAIN PLUG (ATM)
35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
35108HHOUSING SUB-ASSY, EXTENSION
35168GASKET, AUTOMATIC TRANSMISSION OIL PAN
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
35507DLEVER, TRANSMISSION CONTROL SHAFT
35578BBRACKET, TRANSMISSION CONTROL CABLE
35824SEAL, BRAKE CYLINDER
35847CTUBE, TRANSMISSION LUBE APPLY
8401
89413GSENSOR, TRANSMISSION REVOLUTION
89413HRING, O(FOR TRANSMISSION REVOLUTION SENSOR)
G1406CONNECTOR SUB-ASSY, TRANS SOLENOID
G1406ARING, O(FOR TRANS SOLENOID CONNECTOR)
3517497501SEPARATOR, TRANSAXLE HOUSING OIL
main35174-97501
9004119773
main90041-19773
9004119775
main90041-19775
9004119865
main90041-19865
9004119903
main90041-19903
9004119968
main90041-19968
9004120004
main90041-20004
9004120203
main90041-20203
9004179109
main90041-79109
9004250157
main90042-50157
9161261040
main91612-61040
9161961250
main91619-61250
35 parts on this diagram · 2 diagrams in section
