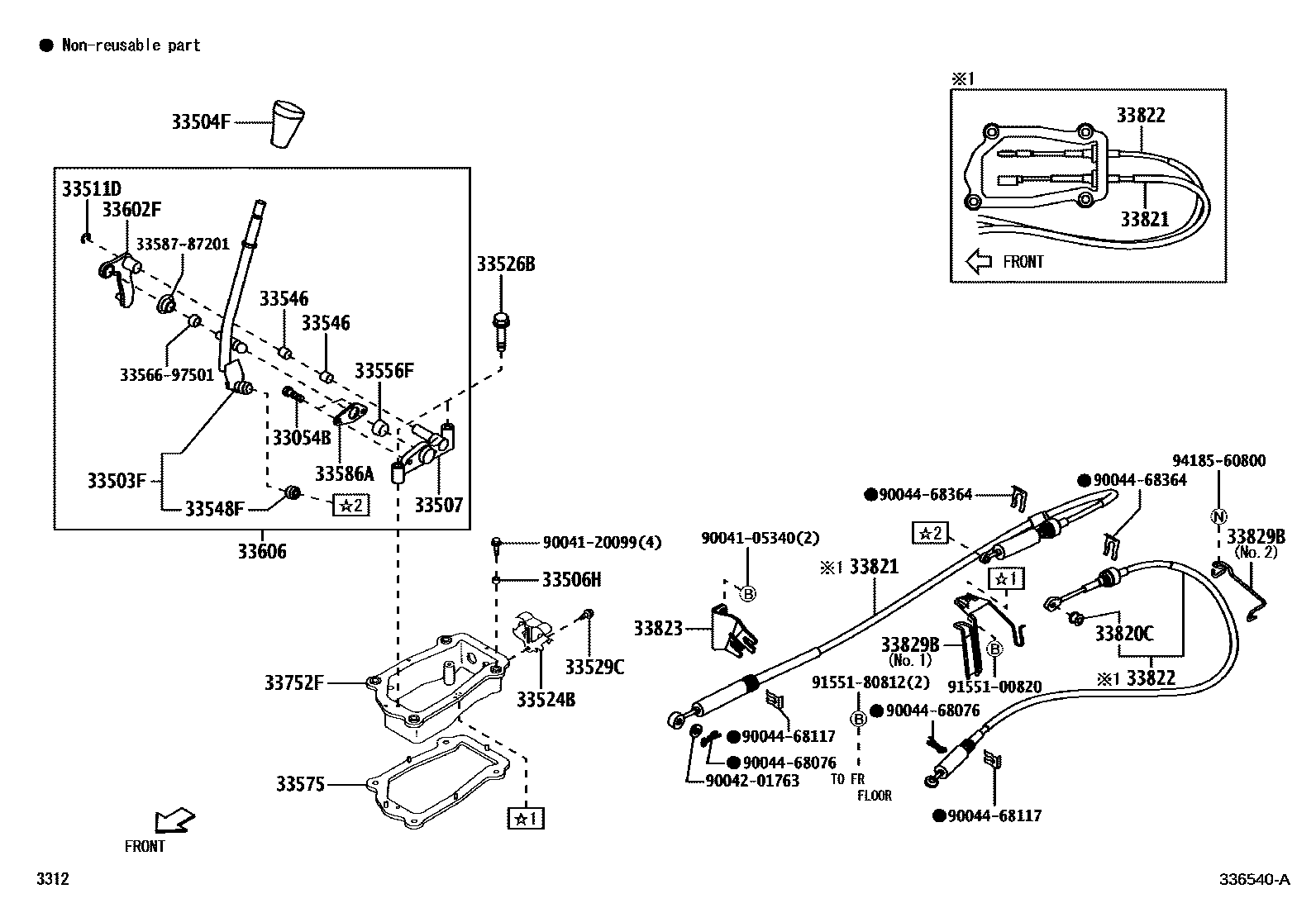

SHIFT LEVER & RETAINER

0001 1 0003 1

33054BBOLT(FOR SHIFT LEVER NO.2)

main90041-05071iJ200,210..5F200811-201806

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-B4010iJ200,210..5F200811-201806

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-13010-B0iJ200,210..5F201605

HI-G PACKAGE,DK.GRAY,TRIM1#

sub33504-13010

main33504-87401-B1iJ200,210..5F200811

DK.GRAY,TRIM1#

sub33504-87401

33506HBUSH (FOR SHIFT LEVER RETAINER)

main33546-B4010iJ200,210..5F200811-201806

ID=8.5

main33546-B4020iJ200,210..5F200811-201806

ID=11.4

33507BRACKET SUB-ASSY, SHIFT LEVER HOUSING

main33507-97501iJ200,210..5F200811-201806

33511DRING, E (FOR FLOOR SHIFT CONTROL SHAFT)

main96160-00800iJ200,210..5F200811-201806

33524BBRACKET, CONTROL CABLE

main33524-B4010iJ200,210..5F..LA200811-200911

33526BBOLT, SHIFT LEVER HOUSING SET

main81134-B4010iJ200,210..5F200811-201806

33529CBOLT, SHIFT LEVER

main81134-B4020iJ200,210..5F200811-201806

33546BUSH(FOR CONTROL SHIFT LEVER RETAINER)

main33548-B4010iJ200,210..5F200811-201806

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main90043-86132iJ200,210..5F200811-201806

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-87202iJ200,210..5F200811-201806

33575RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33575-B4010iJ200,210..5F200811-201806

33586ASTOPPER, CONTROL LEVER (FOR FLOOR SHIFT)

main33586-97501iJ200,210..5F200811-201806

33602FLEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT)

main33602-B4010iJ200,210..5F200811-201806

33606LEVER SUB-ASSY, WIRE PULL

main33606-B4011iJ200..5F200811-200911

33752FSUPPORT, CONTROL LINK (FOR FLOOR SHIFT)

main33752-B4010iJ200,210..5F200811-201806

33820CBUSH (FOR TRANSMISSION CONTROL CABLE)

main33835-B1010iJ200,210..5F200811-201806

33821CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)

main33820-B4010iJ200,210..5F200811

SHIFT CABLE

33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)

main33830-B4010iJ200,210..5F200811-201709

SELECT CABLE

sub33830-B4011

main33830-B4011iJ200,210..5F201710

SELECT CABLE

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-B4010iJ200..5F200811-200911

main33823-B4020iJ210..5F201605

33829BCLAMP, TRANSMISSION CONTROL CABLE

main33829-B4010iJ200,210..5F200811

NO.1

main33829-B4020iJ200,210..E4AT200811

NO.1

main33829-B4030iJ200,210..5F200811

NO.2

main33829-B4040iJ200,210..E4AT200811

NO.2

3356697501PIN, SHIFT LEVER STOP

main33566-97501

3358787201GUIDE, CONTROL SELECT LEVER

main33587-87201

9004105340

main90041-05340

9004120099

main90041-20099

9004201763

main90042-01763

9004468076

main90044-68076

9004468117

main90044-68117

9004468364

main90044-68364

9155100820

main91551-00820

9155180812

main91551-80812

9418560800

main94185-60800

33 parts on this diagram · 2 diagrams in section
