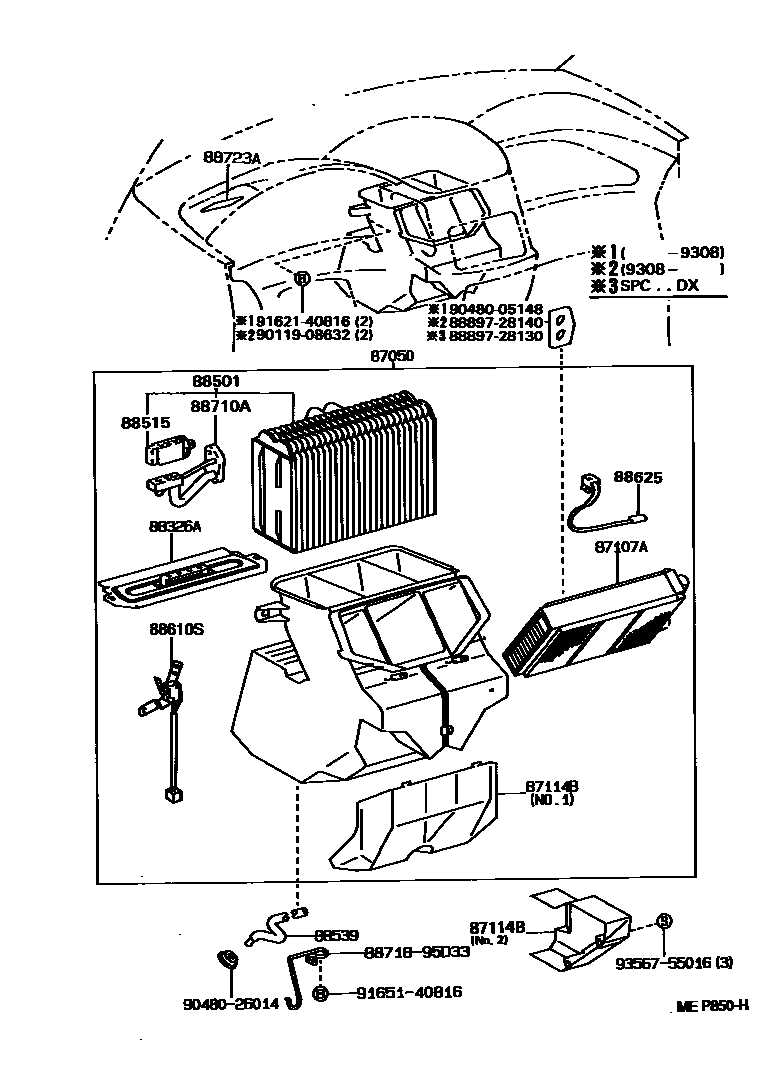

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT 0002 1REAR, MATSUSHITA 0003 1REAR, DENSO 0004 1REAR 0005 1COOL BOX 0006 1COOL BOX 0007 1COOL BOX 0008 1W/O(COOL BOX) 0009 1W(COOL BOX)

87050RADIATOR ASSY, AIR CONDITIONER

main87050-28070iTCR10..EFI;TCR10,20..CND199308-199707

main87050-28110iTCR10,20..USA..SPC199508-199707

main87050-95D00iTCR10,20..ATM;TCR10..MTM..CND199108-199308

main87050-95D00iTCR10,20..MTM..USA199001-199308

COLD SPEC

main87050-95D02iTCR10,20..USA199001-199108

sub87050-95D00

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-28130iTCR10,20199308-199707

main87107-95D02iTCR10,20..MTM..USA199001-199308

COLD SPEC

main87107-95D02iTCR10,20..ATM;TCR10..MTM..CND199108-199308

main87107-95D03iTCR10,20..USA199001-199108

sub87107-95D02

87114BCOVER, HEATER

main87114-95D00iTCR10,20..USA199001-199108

main87114-95D00iTCR10,20199001-199707

NO.2

main87114-95D04iTCR10,20199001-199707

NO.1

88326APLATE, COVER

main88326-28040iTCR10,20199308-199707

main88326-95D01iTCR10,20199001-199308

sub88326-28010

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-28110iTCR10,20199308-199707

sub88511-28041

sub88515-22240

sub88710-28870

sub90099-04381

main88501-95D03iTCR10,20199001-199308

88515VALVE, COOLER EXPANSION

main88515-14062iTCR10,20..MTM..USA199001-199303

sub88515-33010

main88515-20100iTCR10,20199308-199707

sub88515-22240

main88515-33010iTCR10,20199303-199308

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-28100iTCR10,20199308-199707

main88539-95D04iTCR10..05S..CND199308-199508

DEALER OPTION

main88539-95D04iTCR10,20199001-199308

88610SWITCH ASSY, COOLER CONTROL

main88610-28150iTCR10..07S..USA199108-199707

NO.1

main88610-95713iTCR10,20199001-199707

NO.2

main88610-95D00iTCR10,20199001-199108

NO.1

88610SSWITCH ASSY, CONTROL

main88610-28290iTCR10,20..USA..SPC199508-199707

88625THERMISTOR, COOLER, NO.1

main88625-60050iTCR10,20199001-199707

88710ATUBE ASSY, AIR CONDITIONER

main88710-28720iTCR10,20199001-199308

main88710-28870iTCR10,20199308-199707

88723ALABEL, COOLER SERVICE CAUTION

main88723-28100iTCR10,20..CND199001-199308

SINGLE

main88723-28100iTCR10,20..CND199001-199308

SINGLE---MAKER OPT

main88723-28100iTCR10,20199009-199011

main88723-28110iTCR10,20199001-199009

DUAL

main88723-28130iTCR10,20199011-199308

DUAL

main88723-28170iTCR10,20..USA199308-199707

DUAL

main88723-28180iTCR10,20..05S..USA199311-199408

DUAL

main88723-28180iTCR10,20..CND199308-199408

SINGLE---DEALER OPT

8871895D33PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95D33

8889728130VALVE, COOLER MAGNET

main88897-28130

8889728140VALVE, COOLER MAGNET

main88897-28140

9011908632

main90119-08632

9048005148

main90480-05148

9048026014

main90480-26014

9162140816

main91621-40816

9165140816

main91651-40816

9356755016

main93567-55016

21 parts on this diagram · 9 diagrams in section
