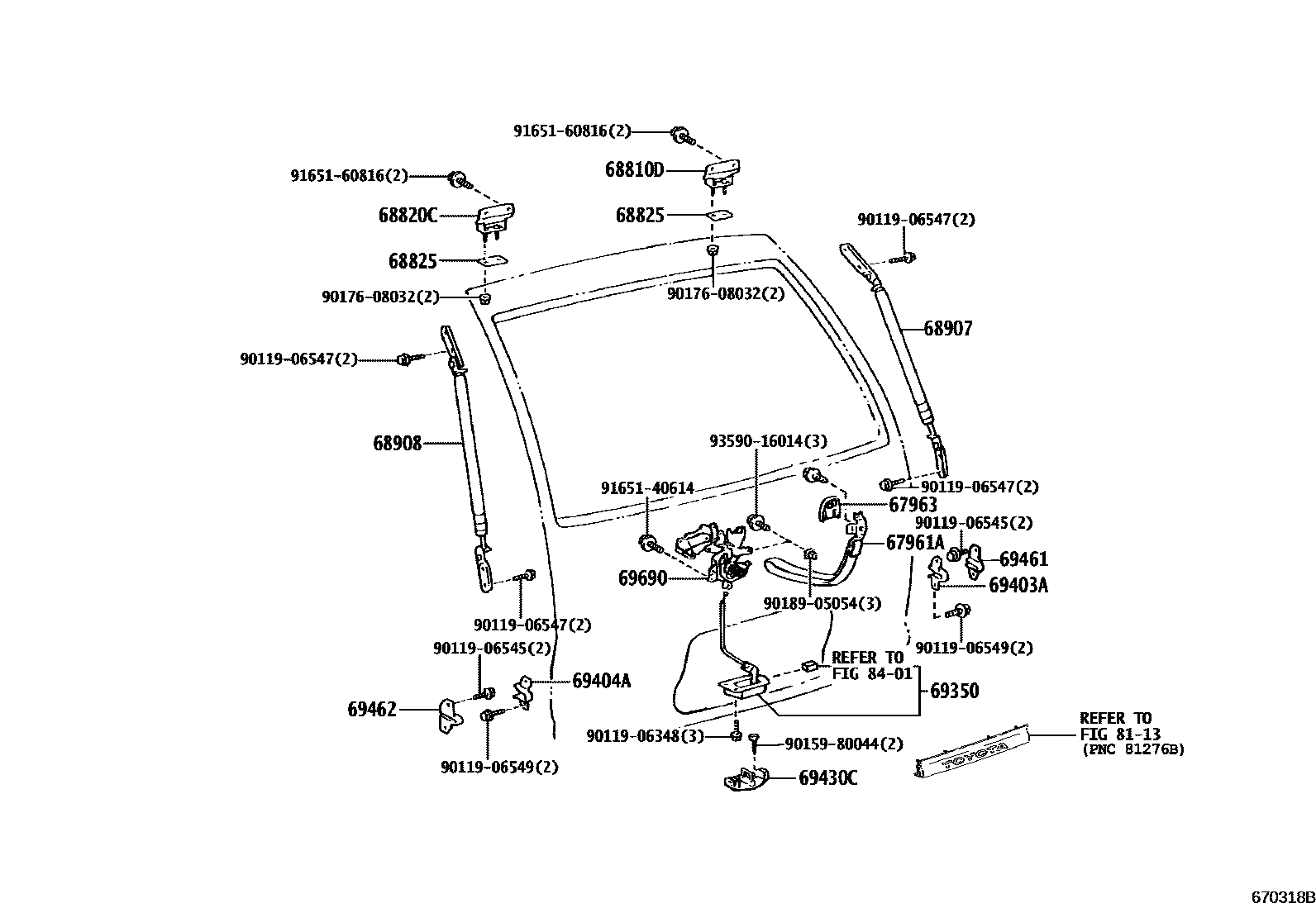

BACK DOOR LOCK & HINGE

67961ASTRAP, BACK DOOR PULL

main67908-28010-B0iTCR10,20199308-199707

BLUISH GRAY,TRIM1#

sub67908-28010

main67908-28010-E1iTCR10,20199308-199508

MI.GRAIGE,TRIM4#

sub67908-28010

main67908-28010-E2iTCR10,20199508-199707

OAK,TRIM4#

sub67908-28010

main67908-28010-J0iTCR10,20199308-199408

MI.BLUE,TRIM8#

sub67908-28010

67963COVER, BACK DOOR STRAP

main67963-28010-B0iTCR10,20199308-199707

BLUISH GRAY,TRIM1#

sub67963-28010

main67963-28010-E0iTCR10,20199308-199707

MI.GRAIGE,TRIM4#

sub67963-28010

main67963-28010-J0iTCR10,20199308-199408

MI.BLUE,TRIM8#

sub67963-28010

68810DHINGE ASSY, BACK DOOR, RH

main68810-28010iTCR10,20..05S..USA199302-199308

W(REAR WINDOW WIPER)

main68810-28010iTCR10,20199308-199707

main68810-28030iTCR10,20..05S..USA199302-199308

main68810-95D00iTCR10,20199001-199302

sub68810-28030

main68810-95D01iTCR10,20..05S..USA199001-199302

W(REAR WINDOW WIPER)

sub68810-28010

68820CHINGE ASSY, BACK DOOR, LH

main68820-28010iTCR10,20199302-199707

main68820-95D00iTCR10,20199001-199302

sub68820-28010

68825PLATE, BACK DOOR HINGE

main68825-95700iTCR10,20199001-199707

68907STAY SUB-ASSY, BACK DOOR DAMPER, RH

main68907-0W120iTCR10,20..CND199406-199612

W(COLD SPEC)

sub68907-28070

main68907-28060iTCR10,20..USA199208-199707

main68907-28070iTCR10,20..USA199406-199612

main68907-28070iTCR10,20..05S..USA199108-199308

W(REAR WINDOW WIPER)

main68907-28070iTCR10,20..07S..USA199208-199406

W(REAR WIPER)

main68907-28070iTCR10,20..07S..USA199208-199707

W(COLD SPEC)

main68907-28070iTCR10,20..07S..USA199208-199302

W(COLD SPEC & REAR WINDOW WIPER)

main68907-28070iTCR10,20199302-199308

W(COLD SPEC & CHINA SPEC)

main68907-95D00iTCR10,20..USA199001-199108

main68907-95D01iTCR10,20..USA199001-199108

W(COLD SPEC OR REAR WINDOW WIPER)

sub68907-28060

main68907-95D01iTCR10,20..05S..USA199108-199208

sub68907-28060

main68907-95D03iTCR10,20..USA199001-199108

W(REAR WINDOW WIPER)

sub68907-28070

main68907-95D03iTCR10,20..CND199001-199108

W(COLD SPEC & REAR WINDOW WIPER)

sub68907-28070

main68907-95D03iTCR10,20..CND;TCR10,20..07S..USA199108-199208

W(REAR WIPER)

sub68907-28070

68908STAY SUB-ASSY, BACK DOOR DAMPER, LH

main68908-0W120iTCR10,20..CND199406-199612

W(COLD SPEC)

sub68908-28070

main68908-28060iTCR10,20..05S..USA199208-199308

W(REAR WINDOW WIPER)

main68908-28060iTCR10,20..USA199308-199707

main68908-28070iTCR10,20..USA199612-199707

W(COLD SPEC)

main68908-28070iTCR10,20..USA199406-199612

main68908-28070iTCR10,20199108-199308

W(REAR WIPER)

main68908-28070iTCR10,20199308-199406

W(REAR WINDOW WIPER)

main68908-28070iTCR10..07S..USA199302-199308

COLD SPEC & CHINA SPEC

main68908-95D00iTCR10,20..USA199001-199108

main68908-95D01iTCR10,20..USA199001-199108

W(COLD SPEC OR REAR WINDOW WIPER)

sub68908-28060

main68908-95D01iTCR10,20..05S..USA199108-199208

sub68908-28060

main68908-95D03iTCR10,20..USA199001-199108

W(COLD SPEC & REAR WINDOW WIPER)

sub68908-28070

main68908-95D03iTCR10,20..USA199001-199108

W(REAR WINDOW WIPER)

sub68908-28070

69350LOCK ASSY, BACK DOOR

main69350-95D00iTCR10,20199001-199707

main69350-95D01iTCR10..07S..USA199302-199308

CHINA SPEC

69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH

main69403-95D00iTCR10,20199001-199707

69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH

main69404-95D00iTCR10,20199001-199707

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-95D00iTCR10,20199001-199707

69461STOPPER, BACK DOOR SIDE MALE, RH

main69461-28010iTCR10,20199412-199707

main69461-95D00iTCR10,20199001-199412

69462STOPPER, BACK DOOR SIDE MALE, LH

main69462-28010iTCR10,20199412-199707

main69462-95D00iTCR10,20199001-199412

69690CONTROL ASSY, BACK DOOR REMOTE

main69690-95D00iTCR10,20..05S199001-199707

main69690-95D01iTCR10,20..05S..USA199001-199707

W(POWER DOOR LOCK)

main69690-95D01iTCR10..05S..CND199608-199707

W(POWER WINDOW)

main69690-95D01iTCR10,20..07S199001-199707

main69690-95D02iTCR10,20..USA199108-199707

W(SECURITY SYSTEM)

main69690-95D02iTCR10,20..07S..USA199001-199308

W(SECURITY SYSTEM & POWER DOOR LOCK)

main69690-95D04iTCR10..07S..USA199302-199308

CHINA SPEC

8113

8401

9011906348

main90119-06348

9011906545

main90119-06545

9011906547

main90119-06547

9011906549

main90119-06549

9015980044

main90159-80044

9017608032

main90176-08032

9018905054

main90189-05054

9165140614

main91651-40614

9165160816

main91651-60816

9359016014

main93590-16014

26 parts on this diagram · 1 diagram in section
