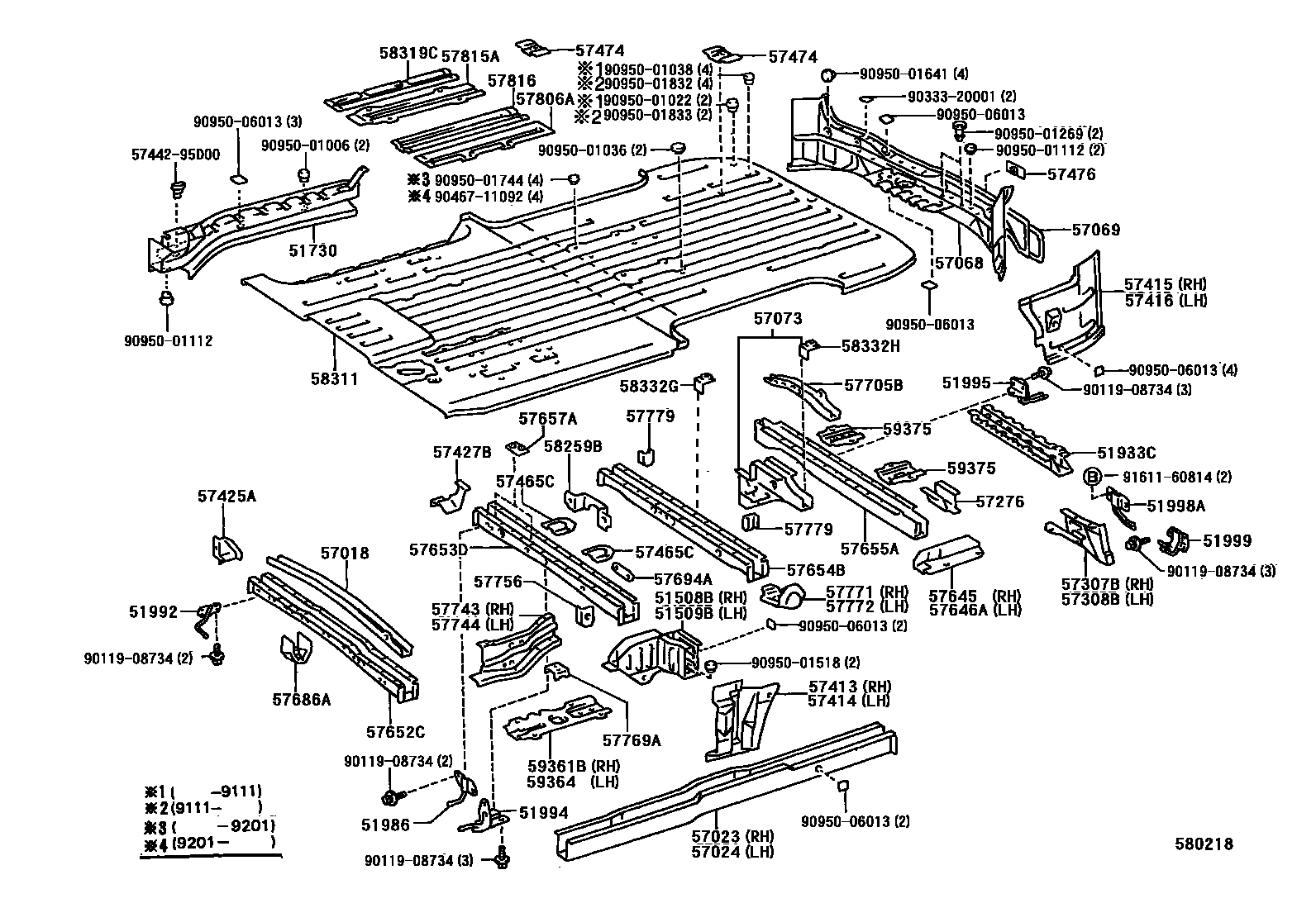

REAR FLOOR PANEL & REAR FLOOR MEMBER
51508BBRACKET SUB-ASSY, LOWER CONTROL LINK, RH
51509BBRACKET SUB-ASSY, LOWER CONTROL LINK, LH
51933CSTOPPER, SPARE WHEEL
51986HANGER, EXHAUST PIPE SUPPORT, NO.3
51992HANGER, EXHAUST PIPE SUPPORT, NO.2
51994HANGER, EXHAUST PIPE, NO.4
51995HANGER, EXHAUST PIPE, NO.5
51998AHANGER, EXHAUST PIPE SUPPORT, NO.6
51999HANGER, EXHAUST PIPE SUPPORT, NO.7
57018BRACKET SUB-ASSY, CROSSMEMBER FLOOR, NO.1
57023MEMBER SUB-ASSY, REAR SIDE, RH
sub57023-28440
57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER
57069MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER
57073BRACKET SUB-ASSY, LATERAL ROD
57276GUSSET, REAR FLOOR CROSSMEMBER, NO.4
57307BOUTRIGGER SUB-ASSY, NO.4 RH
57308BOUTRIGGER SUB-ASSY, NO.4 LH
57413RAIL, FLOOR SIDE, CENTER RH
57414RAIL, FLOOR SIDE, CENTER LH
57425APLATE, REAR STEP, FRONT RH
57427BPLATE, REAR STEP, REAR RH
57465CRETAINER, BELT ANCHOR, NO.2
57474PLATE, BELT ANCHOR, NO.1
FRONT
REAR
W(BENCH 2-PASSENGER SEAT),REAR
57476PLATE, FRONT FLOOR CROSSMEMBER, LH
57645REINFORCEMENT, REAR SIDE MEMBER, RH
57646AREINFORCEMENT, REAR SIDE MEMBER, LH
57652CMEMBER, REAR FLOOR CROSS, NO.1
57653DMEMBER, REAR FLOOR CROSS, NO.2
57654BMEMBER, REAR FLOOR CROSS, NO.3
57657ABRACKET, EXHAUST PIPE MOUNTING, NO.2
57686ABRACKET, FUEL TANK MOUNTING, REAR RH
57694AREINFORCEMENT, FUEL TANK SUPPORT, NO.2
57705BREINFORCEMENT SUB-ASSY, REAR ABSORBER MOUNTING, RH
57743BRACKET, UPPER CONTROL LINK, INNER RH
57744BRACKET, UPPER CONTROL LINK, INNER LH
57756PLATE, REAR FLOOR NO.2 CROSSMEMBER
57769AREINFORCEMENT, UPPER CONTROL LINK BRACKET
57771PLATE, REAR SPRING, RH
57772PLATE, REAR SPRING, LH
57779RETAINER, UPPER CONTROL LINK, UPPER
57806AREINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.2
57815AREINFORCEMENT, BELT ANCHOR, RH
W(CAPTAIN SEAT OR LEATHER SEAT)
W(CAPTAIN SEAT & RETRCTOR)
W(CAPTAIN SEAT)
57816REINFORCE SUB-ASSY, BELT ANCHOR, NO.2 LH
58259BREINFORCEMENT, PARKING BRAKE CABLE, NO.1
58319CANCHOR, REAR SEAT
58332GBRACKET, REAR FLOOR HEAT INSULATOR, NO.4
58332HBRACKET, REAR FLOOR HEAT INSULATOR, NO.4
59361BRETAINER, REAR SEAT, NO.1 A
59364RETAINER, REAR SEAT, NO.1 D
59375RETAINER, REAR SEAT, NO.4
5744295D00PLUG, STEP PANEL HOLE
main57442-95D00
9011908734
main90119-08734
9033320001
main90333-20001
9046711092
main90467-11092
9095001006
main90950-01006
9095001022
main90950-01022
9095001036
main90950-01036
9095001038
main90950-01038
9095001112
main90950-01112
9095001269
main90950-01269
9095001518
main90950-01518
9095001641
main90950-01641
9095001744
main90950-01744
9095001832
main90950-01832
9095001833
main90950-01833
9095006013
main90950-06013
9161160814
main91611-60814
73 parts on this diagram · 1 diagram in section
