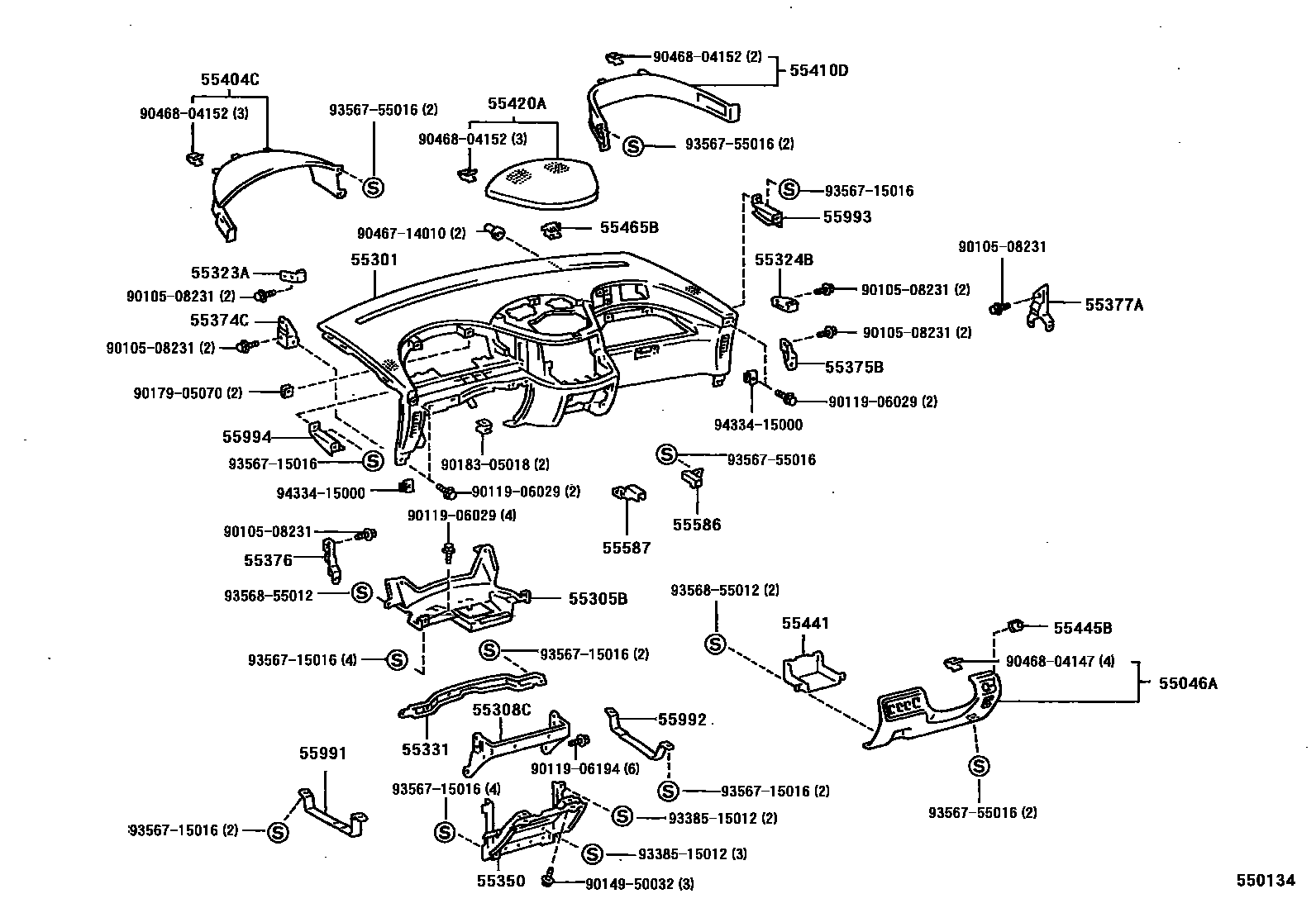

INSTRUMENT PANEL & GLOVE COMPARTMENT
55046APANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER LH
55301PANEL SUB-ASSY, INSTRUMENT
BLUISH GRAY,TRIM1#
MI. GREIGE,TRIM4#
MI. BLUE,TRIM8#
55305BREINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, NO.1
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
CHINA SPEC
55323ABRACKET, INSTRUMENT PANEL, NO.3
CHINA SPEC
55324BBRACKET, INSTRUMENT PANEL, NO.4
55331REINFORCEMENT, INSTRUMENT PANEL
55350BRACE ASSY, INSTRUMENT PANEL
55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1
CHINA SPEC
55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2
55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2
55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2
55410DPANEL ASSY, INSTRUMENT CLUSTER FINISH, END
55420APANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER
W(SECURITY SYSTEM),GRAY,TRIM1#
W(SECURITY SYSTEM),GREIGE,TRIM4#
W(SECURITY SYSTEM),BLUE,TRIM8#
55441BOX, INSTRUMENT PANEL
CHINA SPEC
55445BPLATE, INSTRUMENT PANEL FINISH
55586SUPPORT, SHELL BOX, NO.1
55587SUPPORT, SHELL BOX, NO.2
55991BRACKET, DEFROSTER DUCT, NO.1
55992BRACKET, DEFROSTER DUCT, NO.2
55993BRACKET, DEFROSTER DUCT, NO.3
55994BRACKET, DEFROSTER DUCT, NO.4
9010508231
main90105-08231
9011906029
main90119-06029
9011906194
main90119-06194
9014950032
main90149-50032
9017905070
main90179-05070
9018305018
main90183-05018
9046714010
main90467-14010
9046804147
main90468-04147
9046804152
main90468-04152
9338515012
main93385-15012
9356715016
main93567-15016
9356755016
main93567-55016
9356855012
main93568-55012
9433415000
main94334-15000
38 parts on this diagram · 6 diagrams in section
