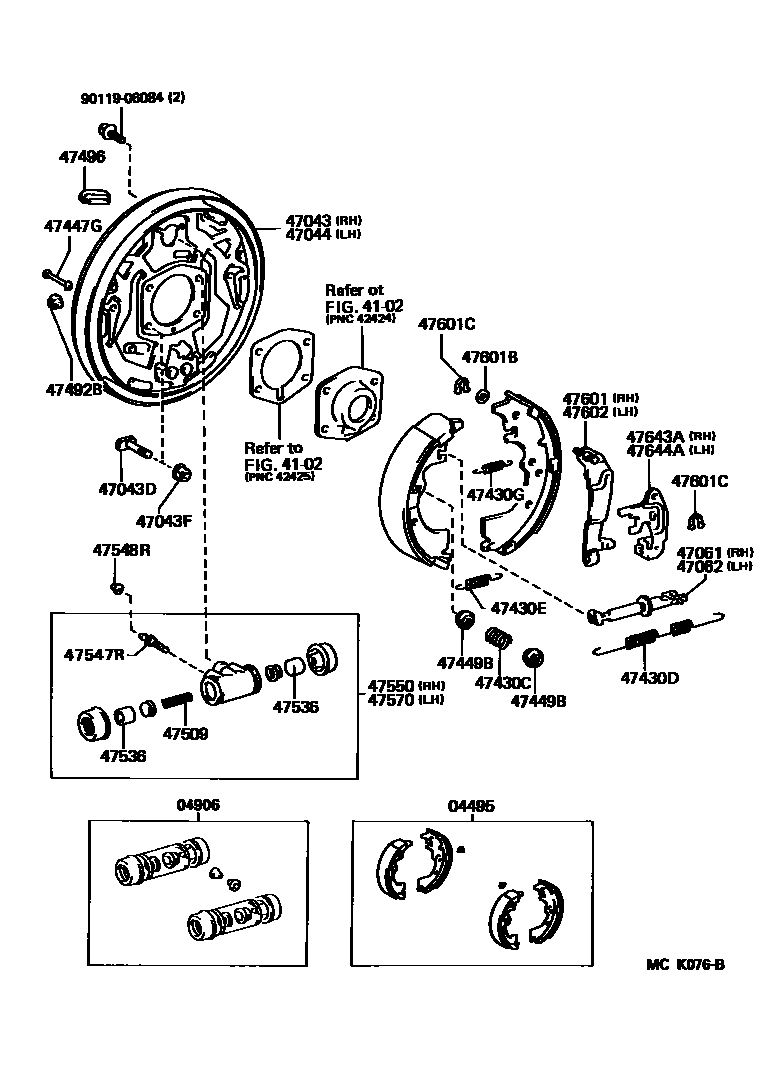

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04495SHOE KIT, REAR BRAKE

main04495-28071iTCR10,20199001-199405

main04495-28080iTCR10,20199405-199707

sub04495-28170

04906CUP KIT, REAR WHEEL CYLINDER

main04906-28030iTCR10,20..CND;TCR10,20..05S..USA199607-199707

main04906-30100iTCR10,20199005-199607

4102

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-28070iTCR10,20199001-199405

main47043-28100iTCR10,20199405-199707

47043DBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-28010iTCR10,20199001-199707

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90179-10150iTCR10,20199001-199707

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-28070iTCR10,20199001-199405

main47044-28100iTCR10,20199405-199707

47061STRUT SET, PARKING BRAKE SHOE, RH

main47062-30030iTCR10,20..CND;TCR10,20..05S..USA199001-199707

47062STRUT SET, PARKING BRAKE SHOE, LH

main47061-30030iTCR10,20199001-199707

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20756iTCR10,20199001-199707

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23003iTCR10,20199001-199707

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18076iTCR10,20199405-199707

main90506-23030iTCR10,20199001-199405

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12480iTCR10,20199001-199707

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-30020iTCR10,20199001-199707

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iTCR10,20199001-199707

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010iTCR10,20199001-199707

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iTCR10,20199001-199707

47509SPRING SUB-ASSY, REAR WHEEL CYLINDER PISTON

main47509-20010iTCR10,20..CND;TCR10,20..05S..USA199001-199607

main90029-60011iTCR10,20..CND;TCR10,20..05S..USA199607-199707

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-22020iTCR10,20199001-199607

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-27020iTCR10,20199001-199707

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iTCR10,20199001-199707

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-28020iTCR10,20199001-199607

main47550-28021iTCR10,20..CND;TCR10,20..05S..USA199607-199707

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-28020iTCR10,20199001-199607

main47550-28021iTCR10,20..CND;TCR10,20..05S..USA199607-199707

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-28010iTCR10,20199001-199707

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-09001iTCR10,20..CND;TCR10,20..05S..USA199001-199707

T=0.2

main90564-09002iTCR10,20199001-199707

T=0.4

main90564-09003iTCR10,20199001-199707

T=0.5

main90564-09184iTCR10,20199001-199707

T=0.3

main90564-09185iTCR10,20..CND;TCR10,20..05S..USA199001-199707

T=0.6

main90564-09186iTCR10,20199001-199707

T=0.9

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iTCR10,20199001-199707

T=1.2,ADJUSTING LEVER SIDE

main90213-07010iTCR10,20199001-199707

T=1.6,SHOE LEVER SIDE

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-28010iTCR10,20..CND;TCR10,20..05S..USA199001-199707

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47644-30010iTCR10,20199001-199707

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47643-30010iTCR10,20199001-199707

9011906084

main90119-06084

30 parts on this diagram · 2 diagrams in section
