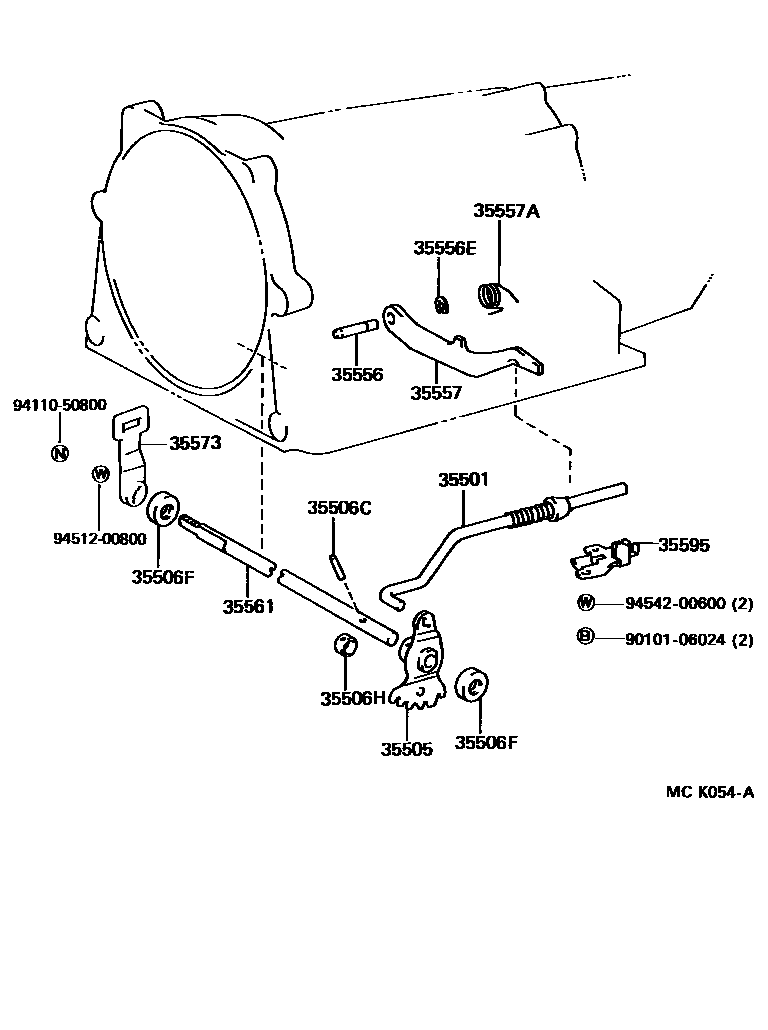

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A46DE,A46DF 0002 1A46DE,A46DF 0003 1A340E,A340F 0004 1A340E,A340F

35501ROD SUB-ASSY, PARKING LOCK

main35501-26020iTCR10,20..ATM..EFI199001-199608

main35501-30010iTCR10,20..SPC199401-199707

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-28010iTCR10,20..ATM..EFI199001-199608

main35505-50010iTCR10,20..SPC199401-199707

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iTCR10,20..ATM..EFI199001-199608

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-11001iTCR10,20..ATM199001-199107

sub90311-11003

main90311-11003iTCR10,20..ATM..EFI199107-199608

main90311-12002iTCR10,20..SPC199401-199707

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20003iTCR10,20..ATM..EFI199001-199608

sub90560-20025

35556SHAFT, PARKING LOCK PAWL

main35556-26010iTCR10,20..ATM..EFI199001-199608

main35556-30020iTCR10,20..SPC199401-199707

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iTCR10,20..ATM199001-199707

35557PAWL, PARKING LOCK

main35557-26010iTCR10,20..ATM..EFI199001-199511

sub35557-26020

main35557-26020iTCR10..EFI199511-199608

main35557-30020iTCR10,20..SPC199401-199707

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21001iTCR10,20..ATM..EFI199001-199608

main90508-21002iTCR10,20..SPC199401-199707

35561SHAFT, MANUAL VALVE LEVER

main35561-30060iTCR10,20..ATM..EFI199001-199608

main35561-35010iTCR10,20..SPC199401-199707

35573LEVER, TRANSMISSION CONTROL SHAFT, LH

main35573-28010iTCR10,20..ATM..EFI199001-199608

main35573-28020iTCR10,20..SPC199401-199707

35595BRACKET, PARKING LOCK PAWL

main35595-30010iTCR10,20..SPC199401-199707

main35595-40010iTCR10,20..ATM..EFI199001-199608

9010106024

main90101-06024

9411050800

main94110-50800

9451200800

main94512-00800

9454200600

main94542-00600

16 parts on this diagram · 4 diagrams in section
