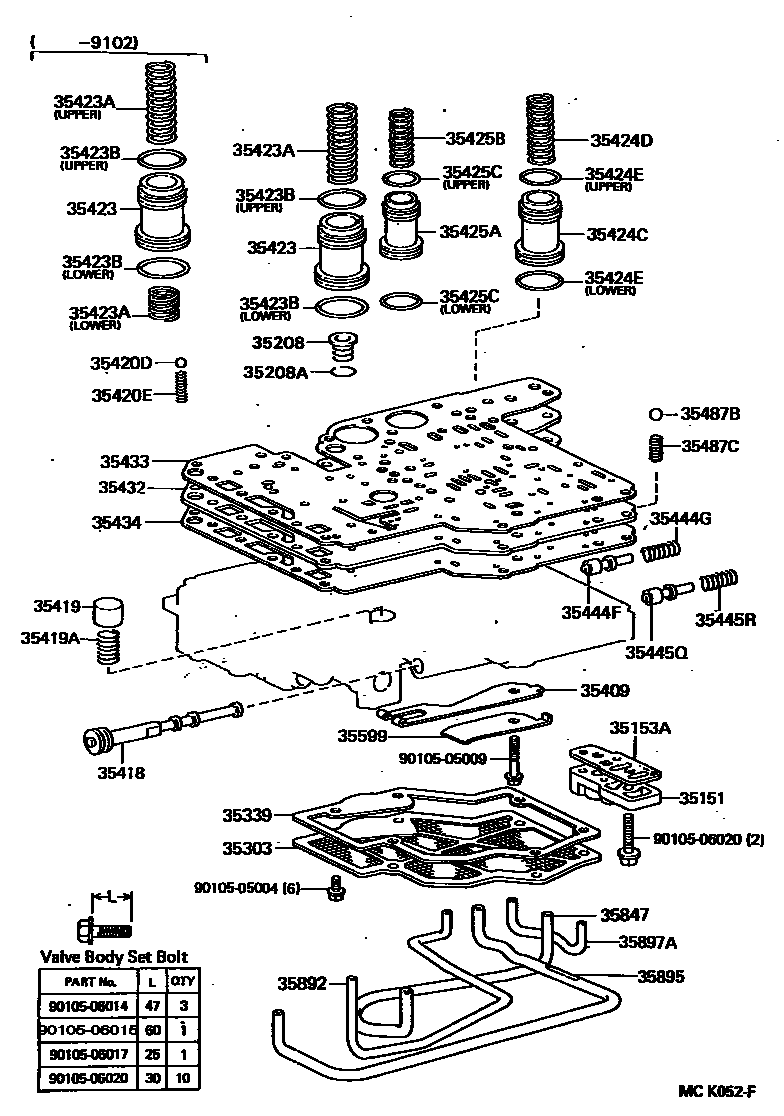

VALVE BODY & OIL STRAINER (ATM)
35151COVER, TRANSMISSION CASE, LOWER
35153AGASKET, TRANSMISSION CASE LOWER COVER
35208SPRING SUB-ASSY, B-2 ACCUMULATOR
35208ARING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)
35303STRAINER SUB-ASSY, OIL
35409SPRING SUB-ASSY, MANUAL DETENT
35418VALVE, MANUAL
35419VALVE, CHECK, NO.1
35419ASPRING, COMPRESSION (FOR CHECK VALVE)
35420BODY ASSY, LOWER VALVE
35420DBALL (FOR LOWER VALVE BODY)
OD=6.35,RUBBER
35420ESPRING (FOR LOWER VALVE BODY)
35423PISTON, B-2 ACCUMULATOR
35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)
LOWER
UPPER
35423BRING, O (FOR B-2 ACCUMULATOR PISTON)
UPPER
LOWER
35424CPISTON, C-1 ACCUMULATOR
35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)
35424ERING, O (FOR C-1 ACCUMULATOR PISTON)
UPPER
LOWER
35425SEAT, PRESSURE REGULATOR VALVE SLEEVE
35425APISTON, C-2 ACCUMULATOR
35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
OUTER
INNER
35425CRING, O (FOR C-2 ACCUMULATOR PISTON)
LOWER
35444FVALVE, INTERMEDIATE COAST MODULATOR
35444GSPRING (FOR INTERMEDIATE COAST MODULATOR VALVE)
35445QVALVE, LOW COAST MODULATOR
35445RSPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE)
35487BBALL, CHECK, NO.4
35487CSPRING, COMPRESSION (FOR CHECK BALL)
35599COVER, MANUAL DETENT SPRING
35847TUBE, TRANSMISSION LUBE APPLY
35892TUBE, OVERDRIVE BRAKE
sub35892-26010
35895TUBE, FRONT CLUTCH APPLY
35897ATUBE, 1ST & REVERSE BRAKE, NO.1
9010505004
main90105-05004
9010505009
main90105-05009
9010506014
main90105-06014
9010506015
main90105-06015
9010506017
main90105-06017
9010506020
main90105-06020
43 parts on this diagram · 7 diagrams in section
