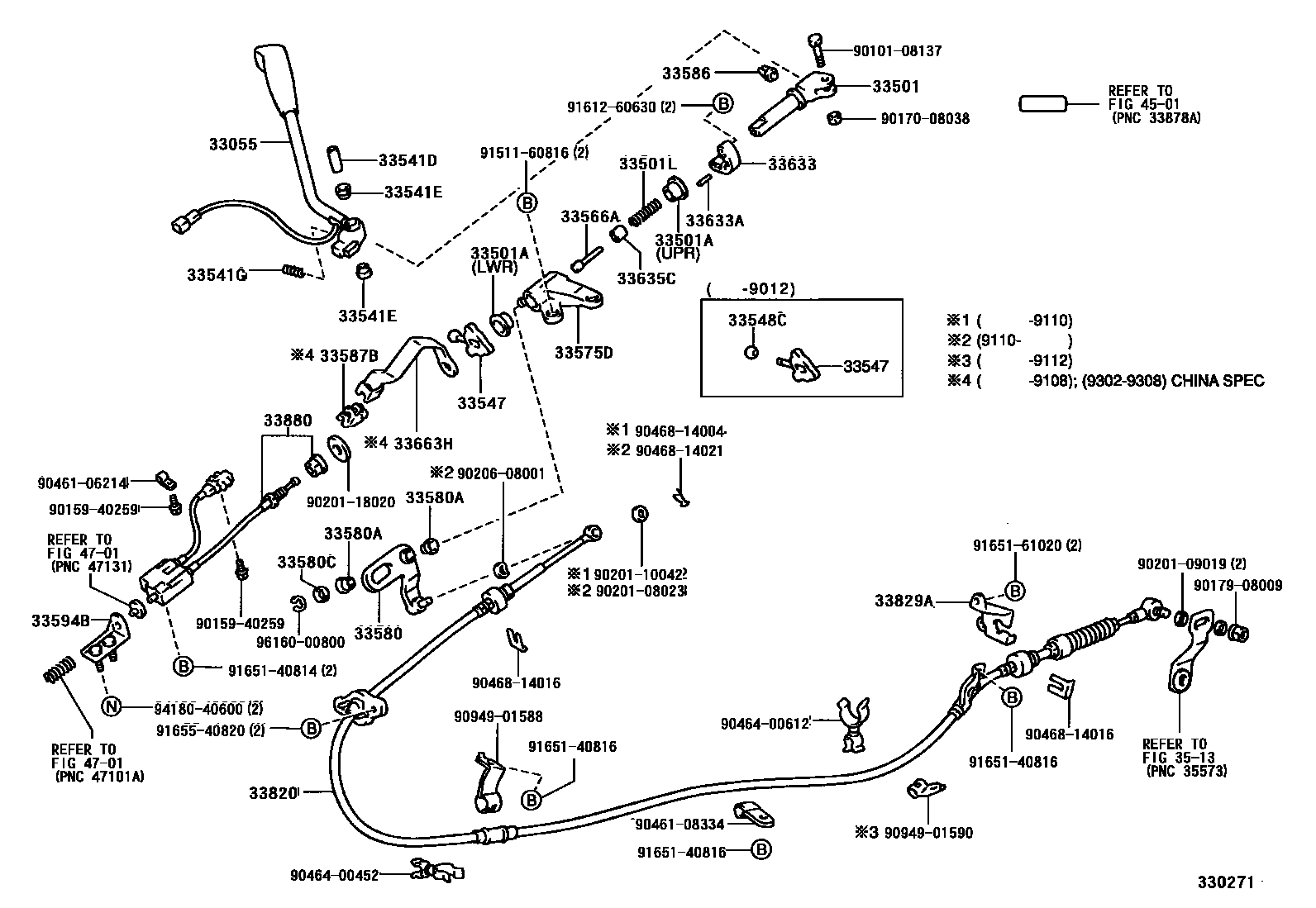

CONTROL SHAFT & CROSSSHAFT

0001 1 0002 1

33055LEVER SUB-ASSY, COLUMN SHIFT

main33055-28060iTCR10,20..ATM199001-199003

sub33055-28061

main33055-28061iTCR10,20..ATM199003-199108

main33055-28062iTCR10,20..ATM199108-199608

main33055-28180iTCR10,20199608-199707

sub33055-28181

sub33586-28012

33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)

main33501-28090iTCR10,20..ATM199001-199707

33501ABUSH (FOR COLUMN SHIFT CONTROL SHAFT)

main90386-18003iTCR10,20..ATM199005-199707

LOWER

main90386-18004iTCR10,20..ATM199005-199707

UPPER

33501LSPRING, COMPRESSION (FOR COLUMN SHIFT CONTROL SHAFT)

main90501-05032iTCR10,20..ATM199001-199707

33541DCOLLAR (FOR COLUMN SHIFT LEVER)

main90387-08112iTCR10,20..ATM199001-199707

33541EBUSH (FOR COLUMN SHIFT LEVER)

main90386-12013iTCR10,20..ATM199001-199303

main90386-12034iTCR10,20..ATM199303-199707

33541GSPRING, COMPRESSION (FOR COLUMN SHIFT LEVER)

main90501-16130iTCR10,20..ATM199003-199301

sub90905-01008

sub33586-28011

main90905-01008iTCR10,20..ATM199301-199707

33547LEVER, COLUMN SHIFT, NO.3

main33547-28010iTCR10,20..ATM199001-199012

sub33547-28011

main33547-28011iTCR10,20..ATM199012-199108

main33547-28040iTCR10,20..ATM199108-199707

33548CBUSH, SHIFT LEVER (FOR COLUMN SHIFT)

main33548-28010iTCR10,20..ATM199001-199012

sub33547-28011

33566APIN, SHIFT LEVER STOP (FOR COLUMN SHIFT)

main33566-28010iTCR10,20..ATM199001-199707

33575DRETAINER, CONTROL SHIFT LEVER (FOR COLUMN SHIFT)

main33575-28030iTCR10,20..ATM199001-199707

33580BELLCRANK ASSY, SHIFTING (FOR COLUMN SHIFT)

main33580-28010iTCR10,20..ATM199001-199707

33580ABUSH (FOR SHIFTING BELLCRANK)

main90386-10017iTCR10,20..ATM199001-199707

33580CWASHER, PLATE (FOR SHIFTING BELL CRANK)

main90201-10119iTCR10,20..ATM199003-199707

33586STOPPER, CONTROL SHIFT LEVER

main33586-28010iTCR10,20..ATM199001-199301

sub33586-28011

main33586-28011iTCR10,20..ATM199301-199707

sub33586-28012

33587BBUSH, LEVER SELECTING

main33587-28030iTCR10,20..ATM199001-199003

sub33587-28031

main33587-28031iTCR10,20..ATM199003-199108

main33587-28031iTCR10..07S..USA199302-199308

CHINA SPEC

33594BPLATE, SHIFT LOCK (FOR COLUMN SHIFT)

main33594-28010iTCR10,20..ATM199001-199707

33633PLATE, COLUMN SHIFT LEVER DETENT

main33633-28100iTCR10,20..ATM199001-199003

sub33633-28H00

main33633-28101iTCR10,20..ATM199003-199707

33633APIN, SLOTTED SPRING(FOR COLUMN SHIFT LEVER DETENT PLATE)

main90254-04036iTCR10,20..ATM199005-199707

33635CGUIDE, WIRE

main33635-28040iTCR10,20..ATM199001-199707

33663HLEVER, TRANSMISSION CONTROL (FOR COLUMN SHIFT)

main33663-28010iTCR10,20..ATM199001-199108

main33663-28010iTCR10..07S..USA199302-199308

CHINA SPEC

33820CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)

main33820-28210iTCR10,20..ATM199001-199112

main33820-28211iTCR10,20..ATM..EFI199112-199608

main33820-28260iTCR10,20..SPC199401-199707

33829ASUPPORT, TRANSMISSION CONTROL CABLE

main33829-28010iTCR10,20..ATM..EFI199001-199608

main33829-28060iTCR10,20..SPC199401-199707

33880CABLE ASSY, PARKING LOCK (FOR COLUMN SHIFT)

main33880-28010iTCR10,20..ATM199001-199005

sub33880-28H00

main33880-28011iTCR10,20..ATM199005-199108

sub33880-28012

main33880-28012iTCR10,20..ATM199108-199707

3513

4501

4701

9010108137

main90101-08137

9015940259

main90159-40259

9017008038

main90170-08038

9017908009

main90179-08009

9020108023

main90201-08023

9020109019

main90201-09019

9020110042

main90201-10042

9020118020

main90201-18020

9020608001

main90206-08001

9046106214

main90461-06214

9046108334

main90461-08334

9046400452

main90464-00452

9046400612

main90464-00612

9046814004

main90468-14004

9046814016

main90468-14016

9046814021

main90468-14021

9094901588

main90949-01588

9094901590

main90949-01590

9151160816

main91511-60816

9161260630

main91612-60630

9165140814

main91651-40814

9165140816

main91651-40816

9165161020

main91651-61020

9165540820

main91655-40820

9418040600

main94180-40600

9616000800

main96160-00800

53 parts on this diagram · 2 diagrams in section
