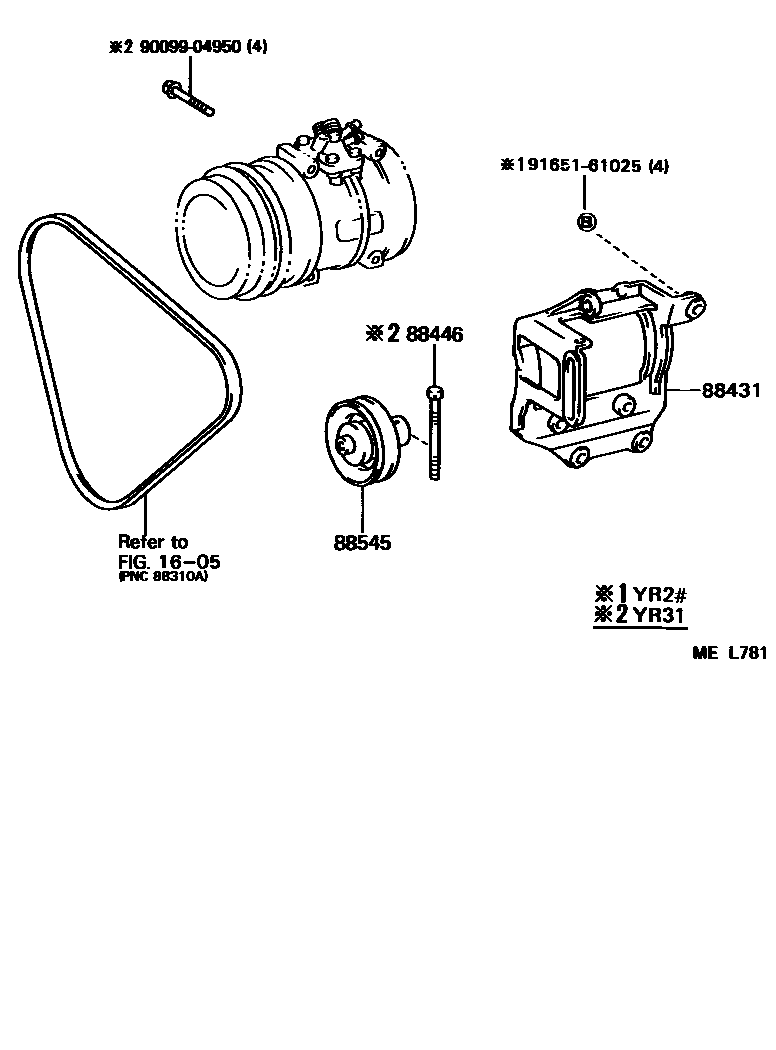

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

1605

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-35160iYR31198808-199001

88446BOLT, IDLE PULLEY

main88446-35010iYR31198808-199001

88545PULLEY ASSY, IDLE

main88440-35020iYR31198808-199001

9009904950

main90099-04950

9165161025

main91651-61025

6 parts on this diagram · 2 diagrams in section
