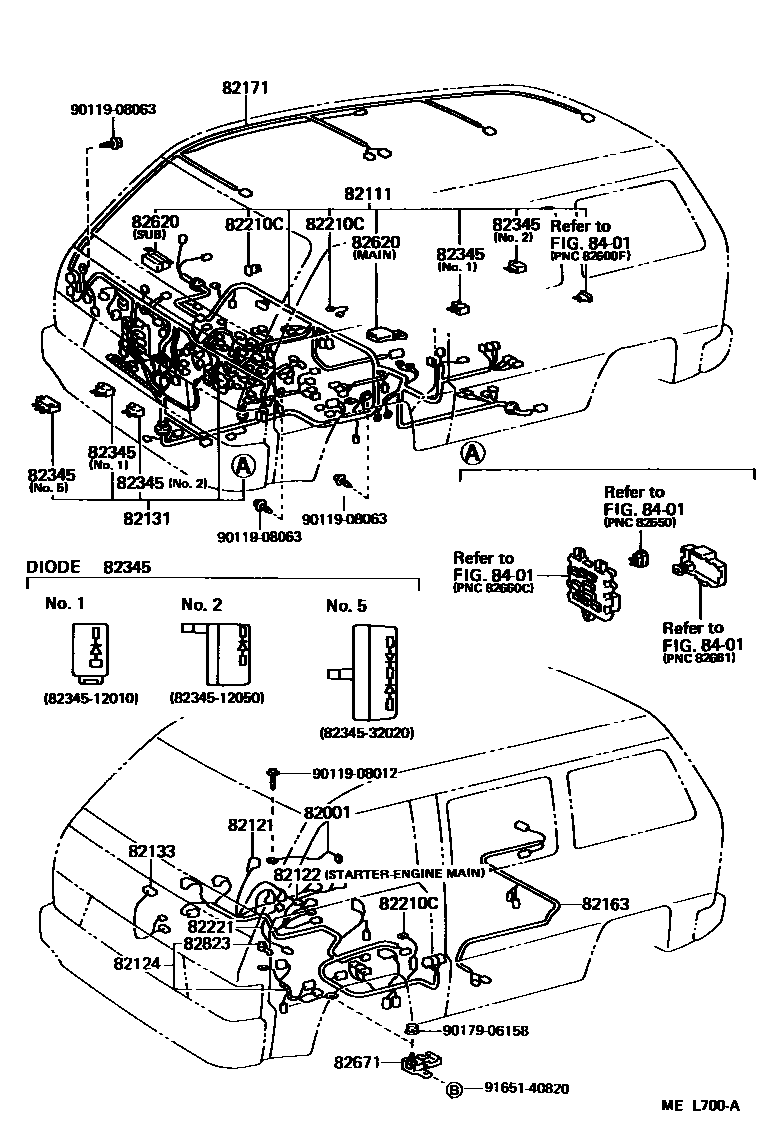

WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
82121WIRE, ENGINE
82122WIRE, ENGINE, NO.2
BATTERY-STARTER
STARTER-ENGINE MAIN
BATTERY-STARTER
82124WIRE, ENGINE, NO.4
W(POWER STEERING)
82131WIRE, COWL
W(CRUISE CONTROL)
W(POWER WINDOW)
W(POWER WINDOW OR W(POWER DOOR LOCK)
W(TACHOMETER)
W(CRUISE CONTROL & TACHOMETER)
W(CRUISE CONTROL)
W(POWER WINDOW)
W(TACHOMETER)
W(CRUISE CONTROL & TACHOMETER)
82133WIRE, COWL, NO.3
82163WIRE, FLOOR, NO.3
82171WIRE, ROOF, NO.1
W(TWIN SUN ROOF)
82210CFUSIBLE LINK
30A,TERM.:FEMALE,PNK
40A,TERM.:FEMALE,GRN
60A,TERM.:MALE,YEL
80A,TERM.:MALE,BLK
L=110 0.5
L=110,1.25(BLACK)
82221WIRE, OIL PRESSURE SWITCH
82345DIODE
NO.2(COWL WIRE)
NO.2(E/G ROOM MAIN)
NO.5(COWL WIRE)
82620BLOCK ASSY, FUSIBLE LINK
SUB
MAIN
82671BLOCK, JUNCTION
82823CAP, TERMINAL, NO.1
8401
8234512010DIODE
main82345-12010
8234512050DIODE
main82345-12050
8234532020DIODE
main82345-32020
9011908012
main90119-08012
9011908063
main90119-08063
9017906158
main90179-06158
9165140820
main91651-40820
23 parts on this diagram · 6 diagrams in section
