CORNERING LAMP

81360ELAMP ASSY, CORNERING, RH

main81360-28010iYR22,31198808-199001

CORNERING ONLY

main81360-28020iYR29,32198808-199001

W/O CORNERING LAMP

sub81360-28010

81360FBULB, CORNERING LAMP

main99132-11270iYR29,32198808-199001

12V 27W

81361BLENS & BODY, CORNERING LAMP, RH

main81361-28020iYR29,32198808-199001

W/O CORNERING LAMP

sub81361-87004

main81361-87004iYR22,31198808-199001

CORNERING ONLY

81365SOCKET & WIRE, CORNERING LAMP

main81365-28010iYR29,32198808-199001

81390ELAMP ASSY, CORNERING, LH

main81390-28010iYR22,31198808-199001

CORNERING ONLY

main81390-28020iYR29,32198808-199001

W/O CORNERING LAMP

sub81390-28010

81391BLENS & BODY, CORNERING LAMP, LH

main81391-28020iYR29,32198808-199001

W/O CORNERING LAMP

main81391-87002iYR22,31198808-199001

CORNERING ONLY

8155995J00MOULDING, REAR COMBINATION LAMP, RH

main81559-95J00

9004468008

main90044-68008

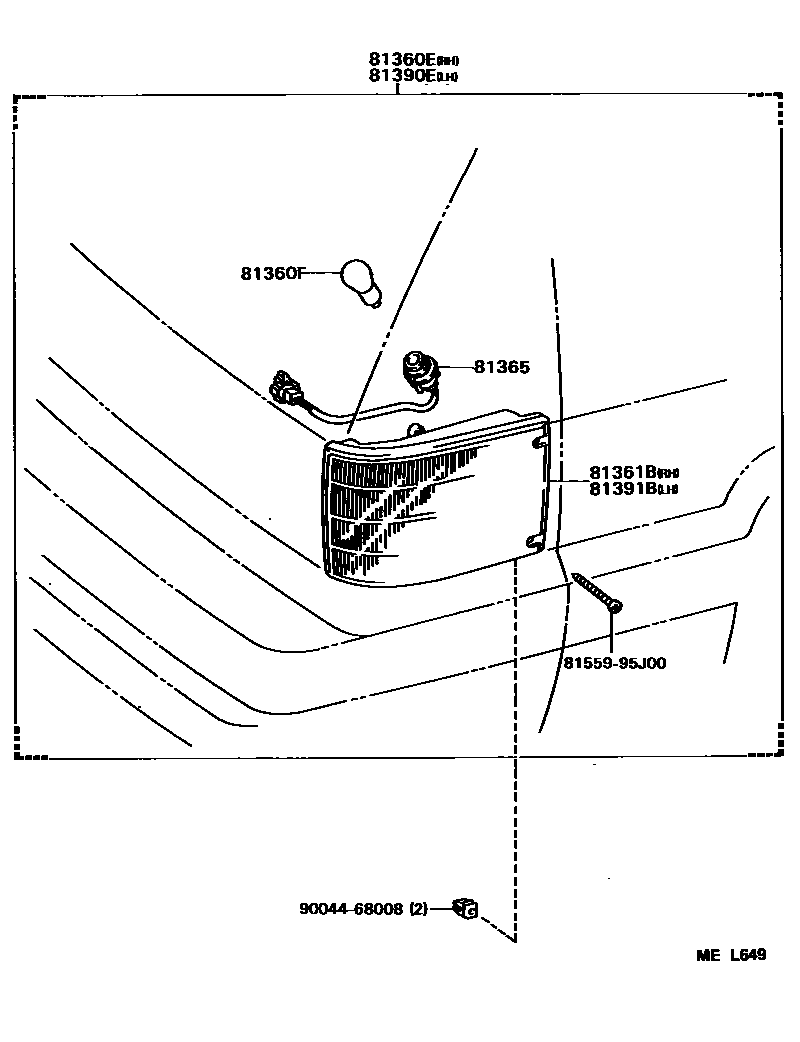

8 parts on this diagram · 1 diagram in section
