MOULDING

0001 1 0002 1

5854

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-28010iYR2#,3#198808-199001

75532MOULDING, WINDSHIELD, LOWER

main75504-28010iYR2#,3#198808-199001

75533MOULDING, WINDSHIELD, OUTSIDE RH

main76503-28010iYR2#,3#198808-199001

75534MOULDING, WINDSHIELD, OUTSIDE LH

main76504-28010iYR2#,3#198808-199001

75548AFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1

main75548-28010iYR2#,3#198808-199001

75549BFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.2

main75549-28010iYR2#,3#198808-199001

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-87005iYR22,31..LE198808-199001

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-87005iYR22,31..LE198808-199001

75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH

main75553-87005iYR22,31..LE198808-199001

75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH

main75554-87005iYR22,31..LE198808-199001

75563RETAINER, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75563-87001iYR22,31..LE198808-199001

RH

sub75563-87002

main75563-87002iYR22,31..LE198808-199001

LH

75578BCOVER, ROOF DRIP MOULDING END, REAR RH

main75578-87001iYR2#,3#..DLX,STD198808-199001

75579BCOVER, ROOF DRIP MOULDING END, REAR LH

main75579-87001iYR2#,3#..DLX,STD198808-199001

75595BCOVER, ROOF DRIP SIDE MOULDING END, FRONT

main75595-95J00iYR2#,3#..DLX,STD198808-199001

RH

main75596-95J00iYR2#,3#..DLX,STD198808-199001

LH

75739MOULDING, DOOR EDGE PROTECTION

main75739-30030iYR2#,3#198808-199001

sub75739-12011

9015940118

main90159-40118

9018904056

main90189-04056

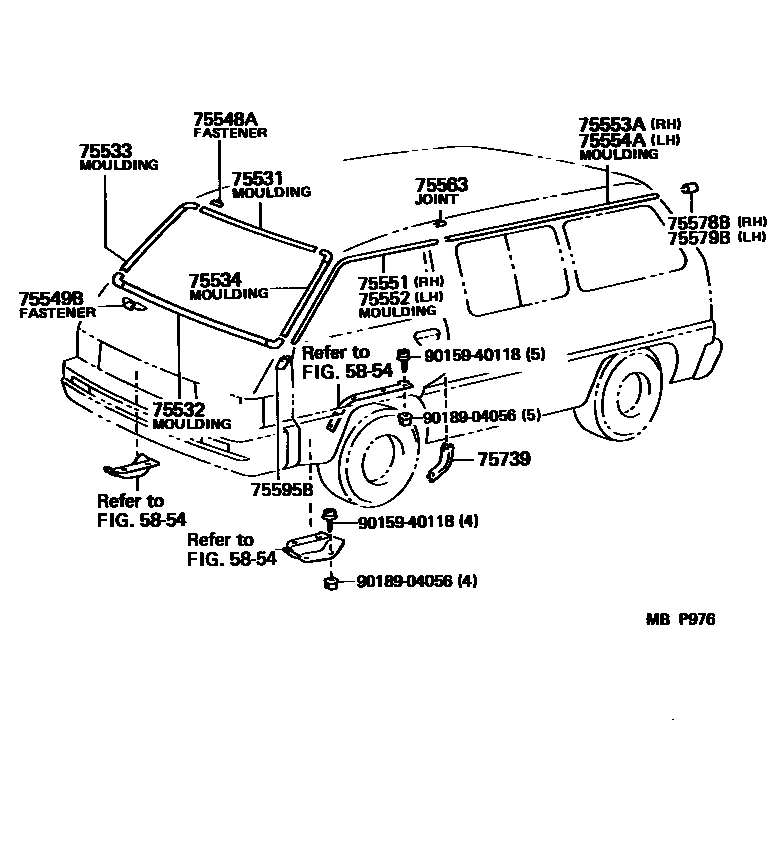

18 parts on this diagram · 2 diagrams in section
