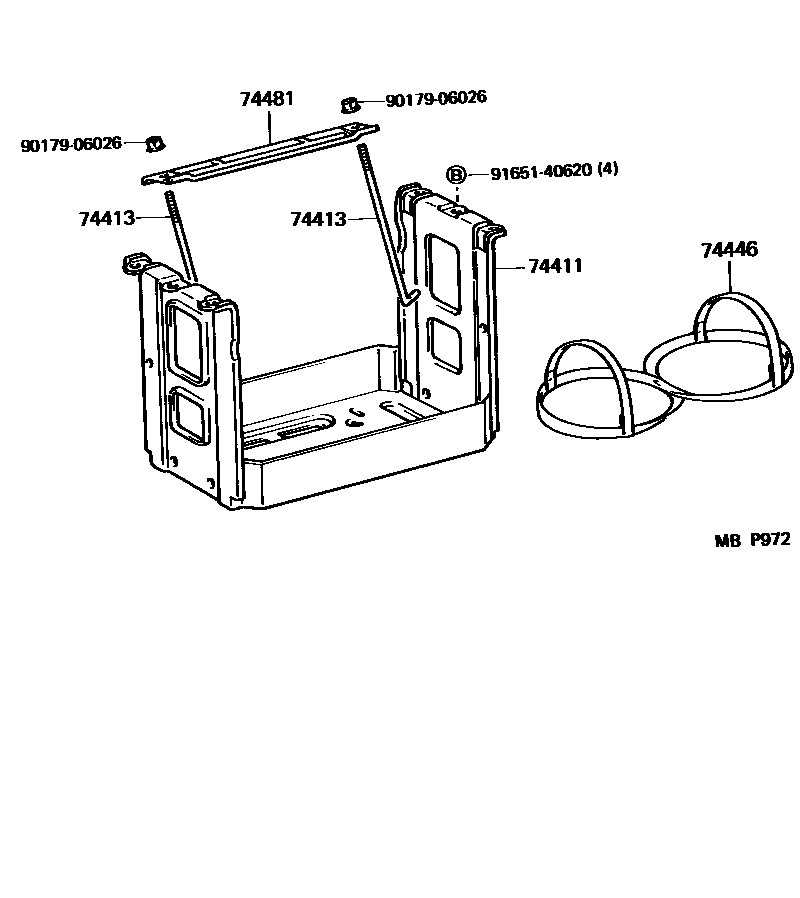

BATTERY CARRIER

74411CARRIER, BATTERY

main74403-87004iYR2#,3#198808-199001

sub74403-28010

74413BOLT, BATTERY CLAMP

main74451-87002iYR2#,3#198808-199001

74446BAND, BATTERY

main74446-95702iYR2#,3#198808-199001

74481CLAMP, BATTERY HOLD DOWN

main74481-87007iYR2#,3#198808-199001

9017906026

main90179-06026

9165140620

main91651-40620

6 parts on this diagram · 1 diagram in section
