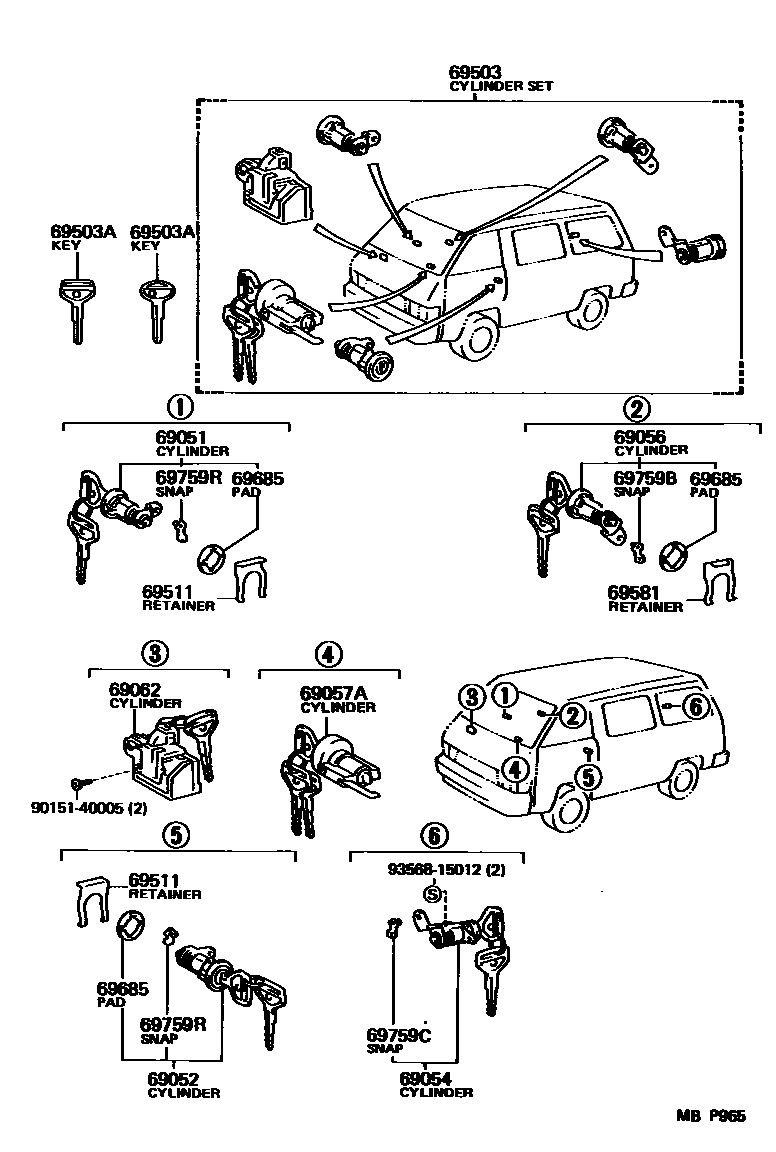

LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
69052CYLINDER & KEY SET, DOOR LOCK, LH
69054CYLINDER & KEY SET, BACK DOOR LOCK
69056CYLINDER & KEY SET, REAR DOOR LOCK, RH
sub69053-28012
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69503CYLINDER SET, LOCK
69503AKEY, BLANK
MASTER KEY
SUB KEY
69511RETAINER, FRONT DOOR LOCK CYLINDER
69581RETAINER, FUEL FILLER LID CYLINDER
69685PAD, LOCK CYLINDER
69759BSNAP, REAR DOOR LOCK CYLINDER
69759CSNAP, BACK DOOR LOCK CYLINDER
69759RSNAP, FRONT DOOR LOCK CYLINDER
LH
RH
LH
RH
9015140005
9356815012
16 parts on this diagram · 1 diagram in section
