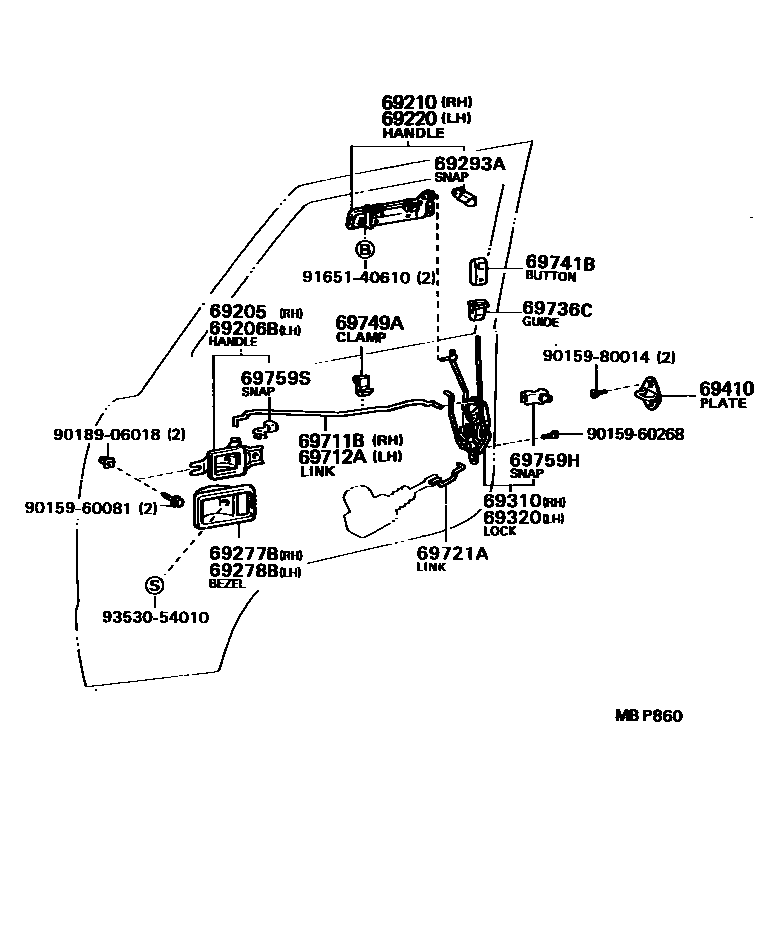

FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
LH
69310LOCK ASSY, FRONT DOOR, RH
W(POWER DOOR LOCK)
69320LOCK ASSY, FRONT DOOR, LH
W(POWER DOOR LOCK)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69721ALINK, FRONT DOOR LOCK ACTUATOR
RH
LH
69736CGUIDE, FRONT DOOR LOCKING LINK
69741BKNOB, FRONT DOOR LOCK CONTROL
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69759HSNAP, DOOR LOCK CONTROL LINK, NO.2
YELLOW
BROWN
69759SSNAP, FRONT DOOR INSIDE HANDLE
RH
LH
9015960081
main90159-60081
9015960268
main90159-60268
9015980014
main90159-80014
9018906018
main90189-06018
9165140610
main91651-40610
9353054010
main93530-54010
24 parts on this diagram · 1 diagram in section
