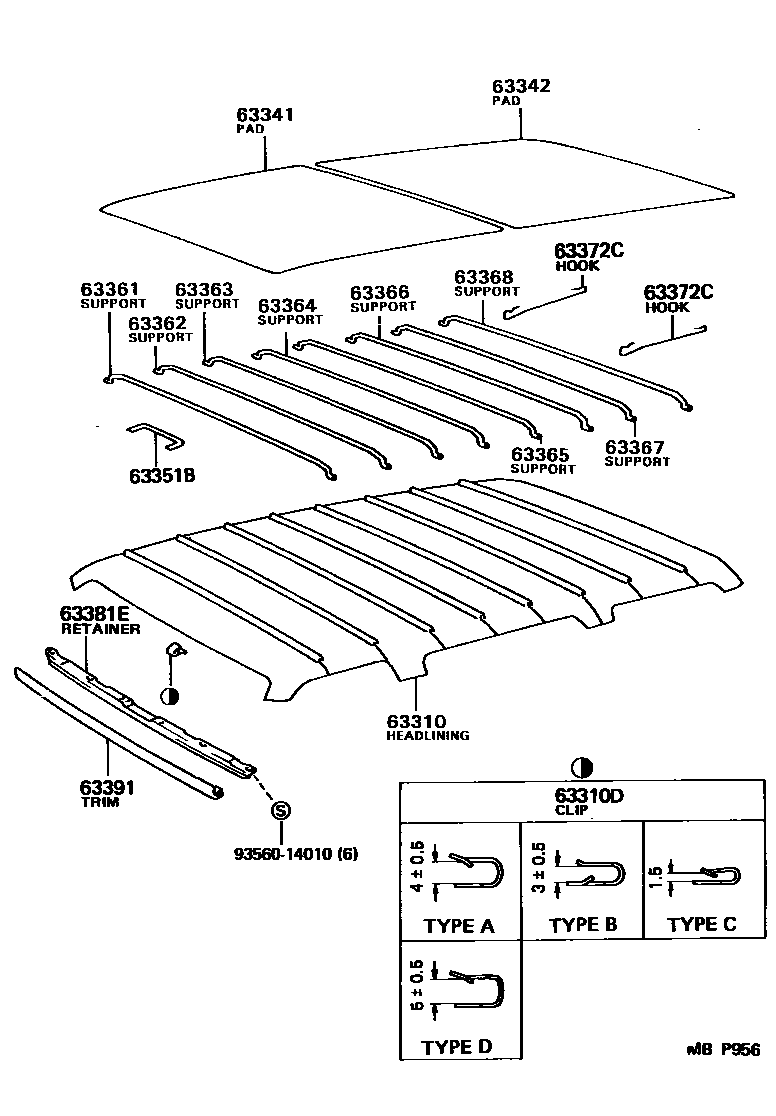

ROOF HEADLINING & SILENCER PAD
63310HEADLINING ASSY, ROOF
GRAY,TRIM1#
LIGHT BLUE,TRIM8#
LIGHT SABLE,TRIM4#
63310DCLIP, ROOF HEADLINING
TYPE B
TYPE A
TYPE C
TYPE D
63341PAD, ROOF SILENCER, NO.1
63342PAD, ROOF SILENCER, NO.2
63351BPAD, ROOF HEADLINING
W(TWIN SUN ROOF)
63361SUPPORT, ROOF HEADLINING, NO.1
L=1105
63362SUPPORT, ROOF HEADLINING, NO.2
L=1113
63363SUPPORT, ROOF HEADLINING, NO.3
L=1122
63364SUPPORT, ROOF HEADLINING, NO.4
L=1122
63365SUPPORT, ROOF HEADLINING, NO.5
L=1122
63366SUPPORT, ROOF HEADLINING, NO.6
L=1122
63367SUPPORT, ROOF HEADLINING, NO.7
L=1122
63368SUPPORT, ROOF HEADLINING, NO.8
L=1122
63372CHOOK, ROOF HEADLINING SUPPORT
63381ERETAINER, ROOF HEADLINING TRIM, FRONT
63391TRIM, ROOF HEADLINING, FRONT
9356014010
17 parts on this diagram · 3 diagrams in section
