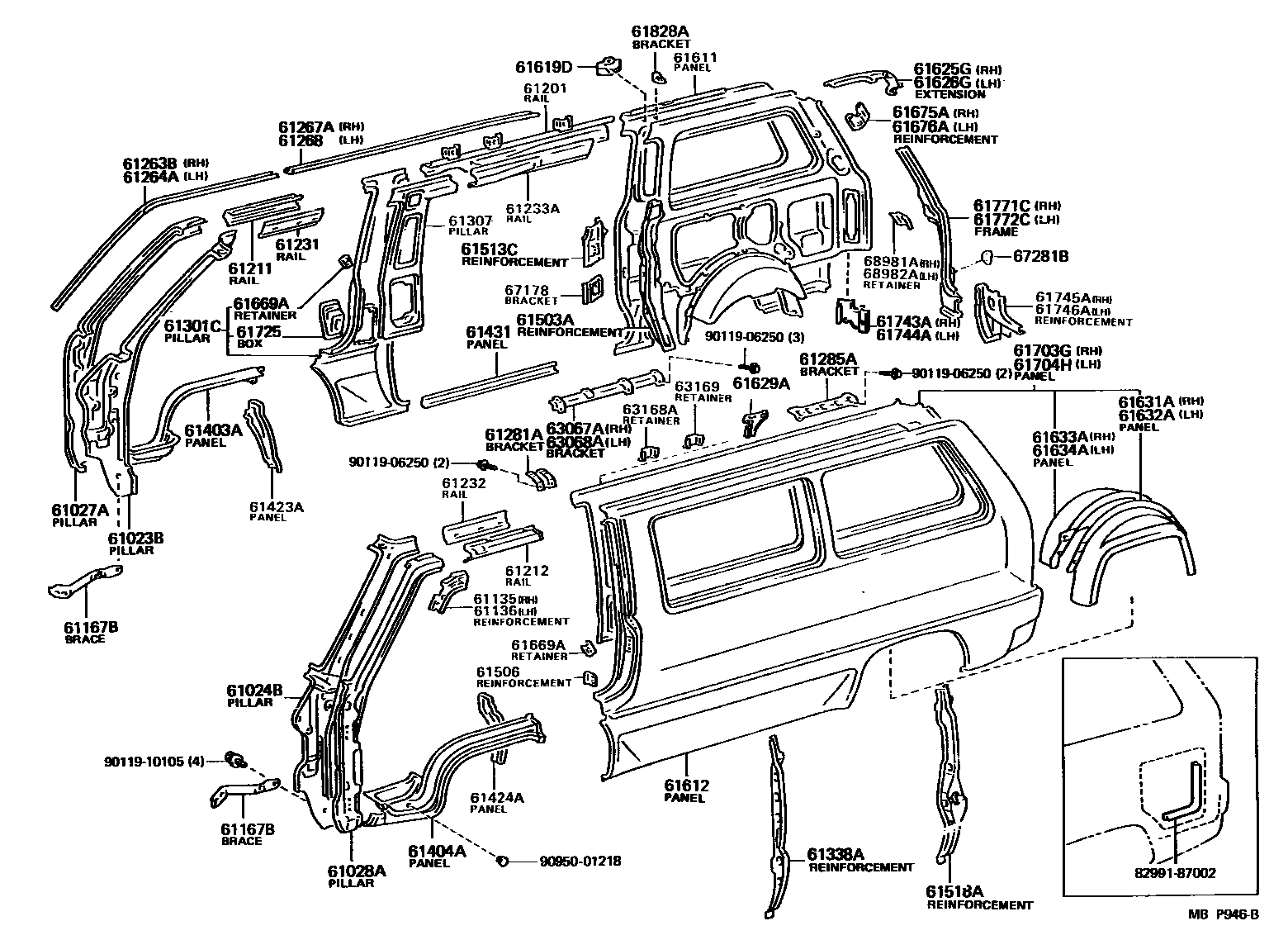

SIDE MEMBER
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH
61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH
61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH
W(RADIO)
61135REINFORCEMENT, FRONT BODY PILLAR, UPPER RH
61136REINFORCEMENT, FRONT BODY PILLAR, UPPER LH
61167BBRACE, FRONT BODY PILLAR, LOWER
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
W(TWIN SUN ROOF)
61232RAIL, ROOF SIDE, INNER LH
W(TWIN SUN ROOF)
61233ARAIL, ROOF SIDE, INNER NO.2 RH
W(TWIN SUN ROOF)
61263BCHANNEL, ROOF DRIP SIDE, FRONT RH
61264ACHANNEL, ROOF DRIP SIDE, FRONT LH
61267ACHANNEL, ROOF DRIP SIDE, REAR RH
61268CHANNEL, ROOF DRIP SIDE, REAR LH
61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1
61285ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.4
61301CPILLAR SUB-ASSY, CENTER BODY, OUTER RH
W(LARGE SIDE PROTECTIVE M0ULDING)
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
61338AREINFORCEMENT, CENTER BODY PILLAR, INNER LH
61403APANEL SUB-ASSY, FENDER, RH
61404APANEL SUB-ASSY, FENDER, LH
61423APANEL, FENDER, INNER LOWER RH
61424APANEL, FENDER, INNER LOWER LH
61431PANEL, ROCKER, OUTER REAR RH
61503AREINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, RH
61506REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, LH
61513CREINFORCEMENT, SLIDE DOOR LOCK STRIKER, RH
61518AREINFORCEMENT, QUARTER LOCK PILLAR, LH
61611PANEL, QUARTER, RH
61619DREINFORCEMENT, QUARTER PANEL, RH
61625GEXTENSION, QUARTER PANEL, REAR RH
W(REAR WINDOW WIPER)
61626GEXTENSION, QUARTER PANEL, REAR LH
61629AREINFORCEMENT, QUARTER PANEL, LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
sub61632-87005
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61669ARETAINER, FRONT DOOR OPEN SWITCH SET
61675AREINFORCE, SEAT BELT ANCHOR, NO.2 UPPER RH
61676AREINFORCE, SEAT BELT ANCHOR, NO.2 UPPER LH
61703GPANEL SUB-ASSY, QUARTER, INNER RH
W(TWIN SUN ROOF)
61704HPANEL SUB-ASSY, QUARTER, INNER LH
W(TWIN SUN ROOF)
61725BOX, FUEL INLET
61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH
61744AREINFORCEMENT, BACK DOOR OPENING SIDE, LH
61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH
61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH
61771CFRAME, BACK DOOR OPENING SIDE, RH
61772CFRAME, BACK DOOR OPENING SIDE, LH
61828ABRACKET, REAR DOOR RAIL, CENTER RH
63067ABRACKET SUB-ASSY, SLIDING ROOF MOUNT, RH
63068ABRACKET SUB-ASSY, SLIDING ROOF MOUNT, LH
63168ARETAINER, ROOF REINFORCEMENT, NO.1
63169RETAINER, ROOF REINFORCEMENT, NO.2
67178RETAINER, REAR DOOR SWITCH, RH
67281BSTOPPER, BACK DOOR, LOWER
68981ARETAINER, BACK DOOR STAY, RH
68982ARETAINER, BACK DOOR STAY, LH
8299187002WIRE, FUSIBLE LINK REPAIR
main82991-87002
9011906250
main90119-06250
9011910105
main90119-10105
9095001218
main90950-01218
66 parts on this diagram · 2 diagrams in section
